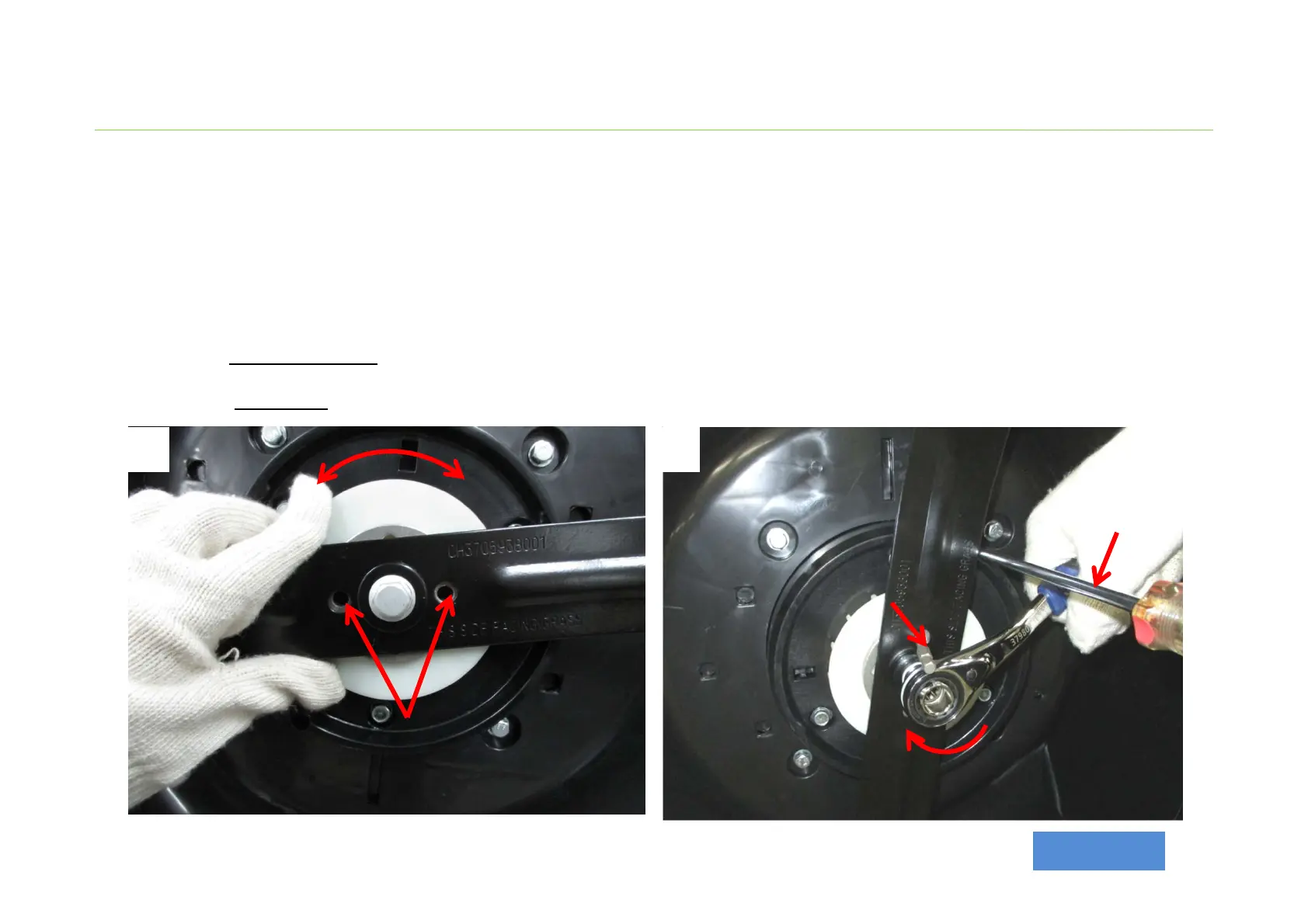

6. Turn the blade by hand to align the holes in the blade with the holes in the inner flange(Fig. 1).
7. Place a metal rod (e.g., a long bit) with a diameter between 5 - 6.35mm into the aligning hole to act as
a stabilizer. Place another metal rod (e.g., a manual screwdriver) with a diameter between 9 - 11mm
into the fixing hole on the deck to act as another stabilizer(Fig. 2).
8. Use a torque wrench(S=14mm) to tighten the bolt clockwise. The recommended torque for the blade
bolt is 49-59Nm.
2. Blade Installation
Stabilizer 2
Stabilizer 1
Tighten
Align the hole
11 2
9
THE END
LM2120E-SP Lawn Mower
