56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2140SP/LM2140SP-FC 25

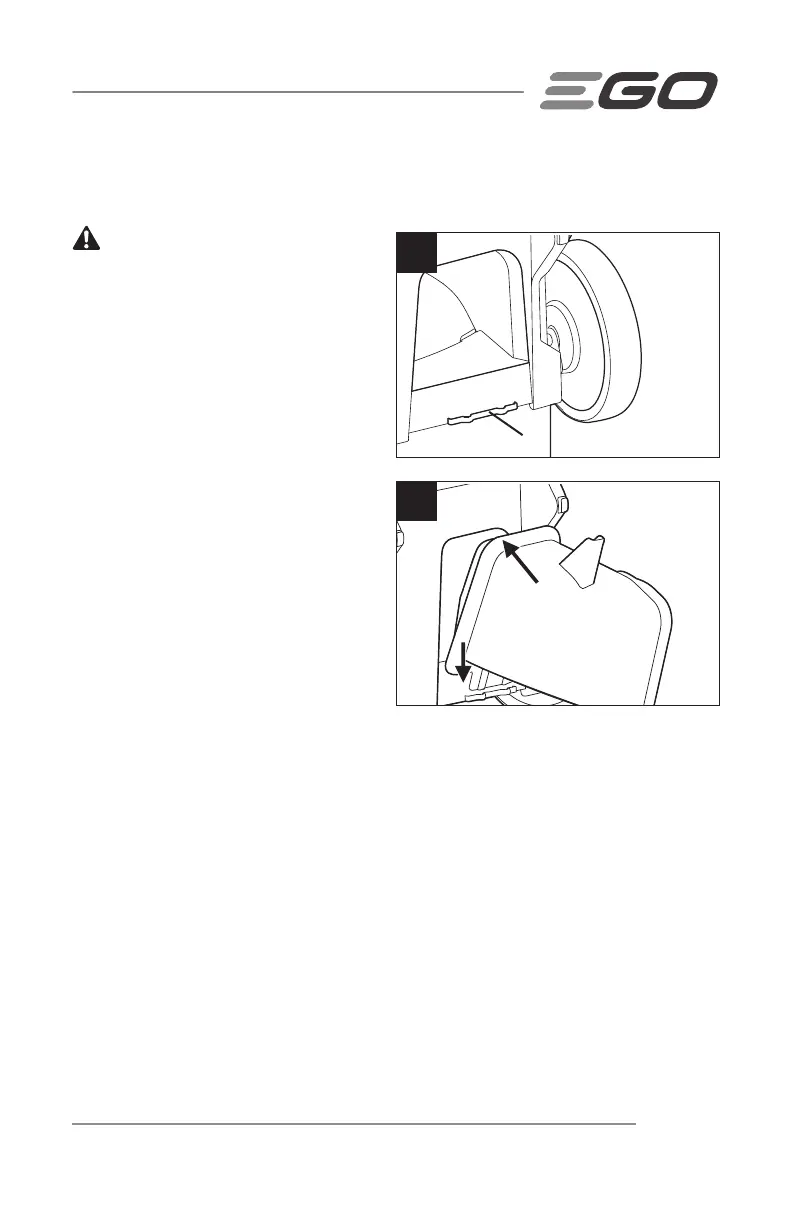

ATTACHING/REMOVING THE SIDE DISCHARGE CHUTE
(Fig. 11a & 11b)
WARNING: Do not at any time
make any adjustment to the lawn mower
without first stopping the motor, removing
the battery pack and waiting for the blade
to stop rotating.
1. Remove the battery.
2. Lift the rear-discharge door.
3. Align the lower edge of the
discharge with the groove of the
doorsill and insert it into the slot.
4. Push the top of the discharge and
insert it into the mower. Check to
see that it is securely seated in the
deck.
5. To remove the side discharge chute,
lift the rear-discharge door, grasp
the side discharge chute and pull it
out.
6. Release the discharge door and make sure that it rests firmly against the
discharge chute.
11a
Groove
11b
Step 1
Step 2
