NOTICE: If the bolt rotates with the
motor shaft when loosening the bolt, turn
the fan by hand to align the through holes
in the fan with the holes in the blade,
and place another metal rod (e.g., a 3.5”
length screw bit) with diameter less than
1/4 inch (6.35mm) into the aligned holes
to act as another stabilizer (Fig. 23).
5. Continue using the 9/16 inch
(14mm) wrench to turn the blade
bolt counterclockwise to loosen it
completely.
6. While wearing protective gloves,
remove the bolt, outer flange and
the blade (Fig. 24).
INSTALLING THE BLADE
WARNING: Always protect your
hands by wearing heavy gloves or
wrapping the cutting edges with rags
or other materials when performing any
maintenance on the mower blade.
Always remove the battery pack when
servicing or transporting the mower.
NOTICE: To re-install or replace the
blade, be sure to replace the parts in the
exact order in which they were removed
(Fig. 24).

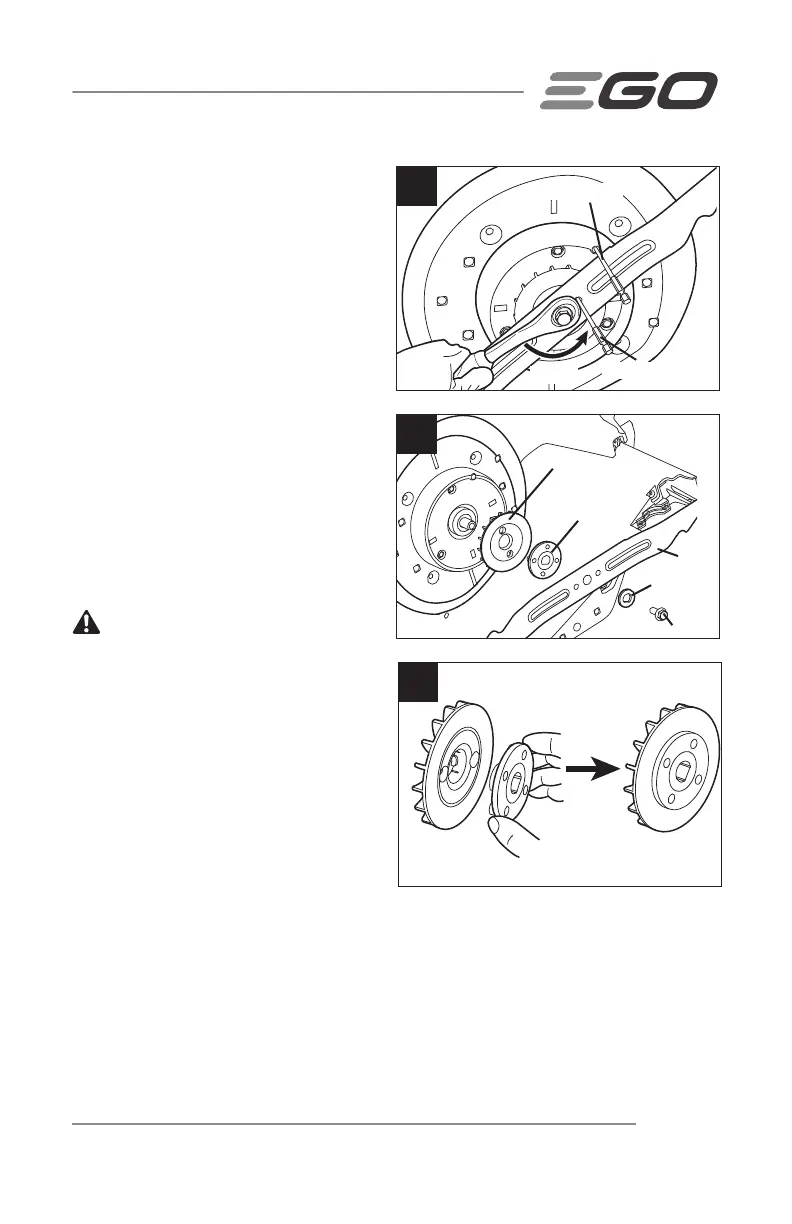

25
THIS SIDE FACING GRASS
24
Fan
Inner flange
Blade
Outer flange
Bolt
THIS SIDE FACING GRASS
23
Stabilizer 1
Loosen
Stabilizer 2
