56-VOLT LITHIUM-ION CORDLESS LAWN MOWER — LM2140SP/LM2140SP-FC38

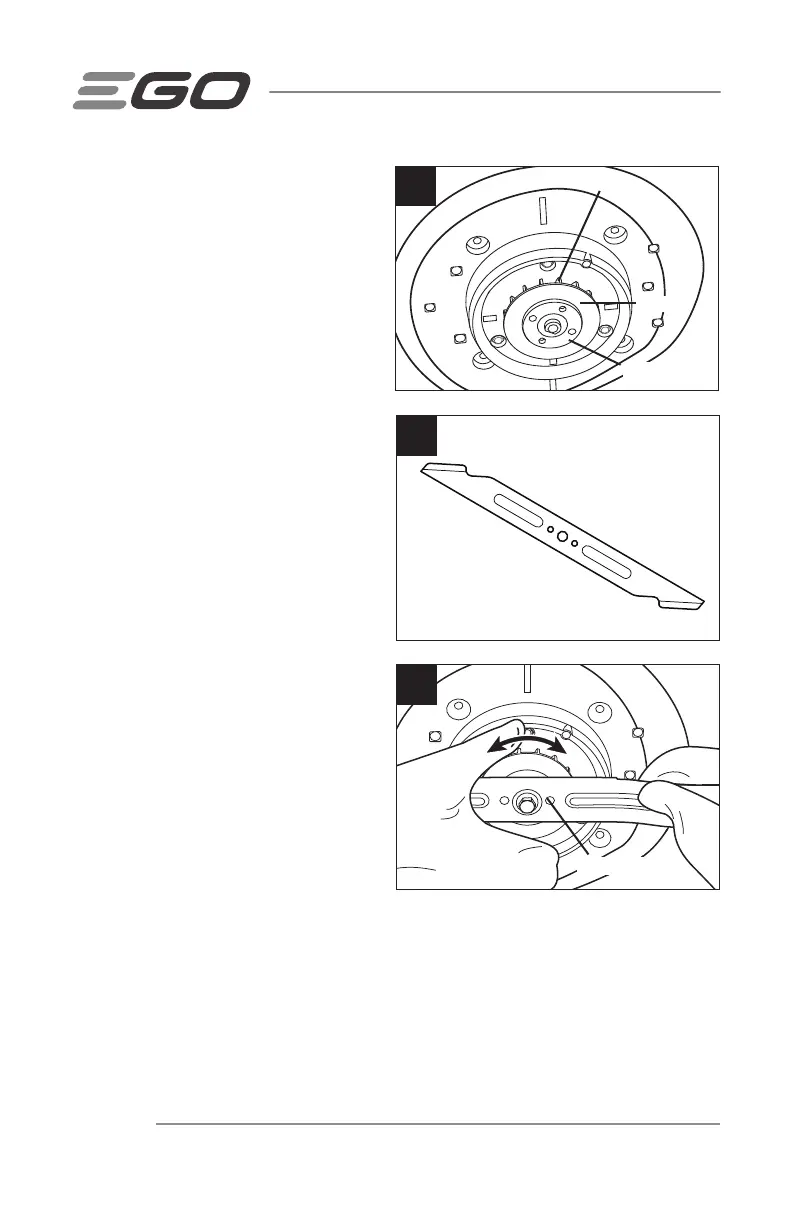

1. Mount the inner flange to the fan
(Fig. 25).
2. Mount the fan and the inner flange
onto the motor shaft with the fan
blade towards the deck (Fig. 26).
3. While wearing protective gloves,
position the blade on the inner
flange with the surface stating
“THIS SIDE FACING GRASS” facing
toward the outside (Fig. 27).
4. Align the outer flange with the shaft
and assemble it in place.
5. Mount the bolt into the shaft
and turn it clockwise by hand to
pre-tighten it.
6. While still wearing protective gloves,
hold the blade with one hand and
turn the fan with the other hand to
align the holes in the blade with the
through holes in the inner flange
(Fig. 28).
26
THIS SIDE FACING GRASS
27
THIS SIDE FACING GRASS
28
Fan blade
Fan
Inner flange
Align the holes
