56-VOLT LITHIUM-ION CORDLESS BRUSHLESS STRING TRIMMER — ST1510/ST1510-FC16

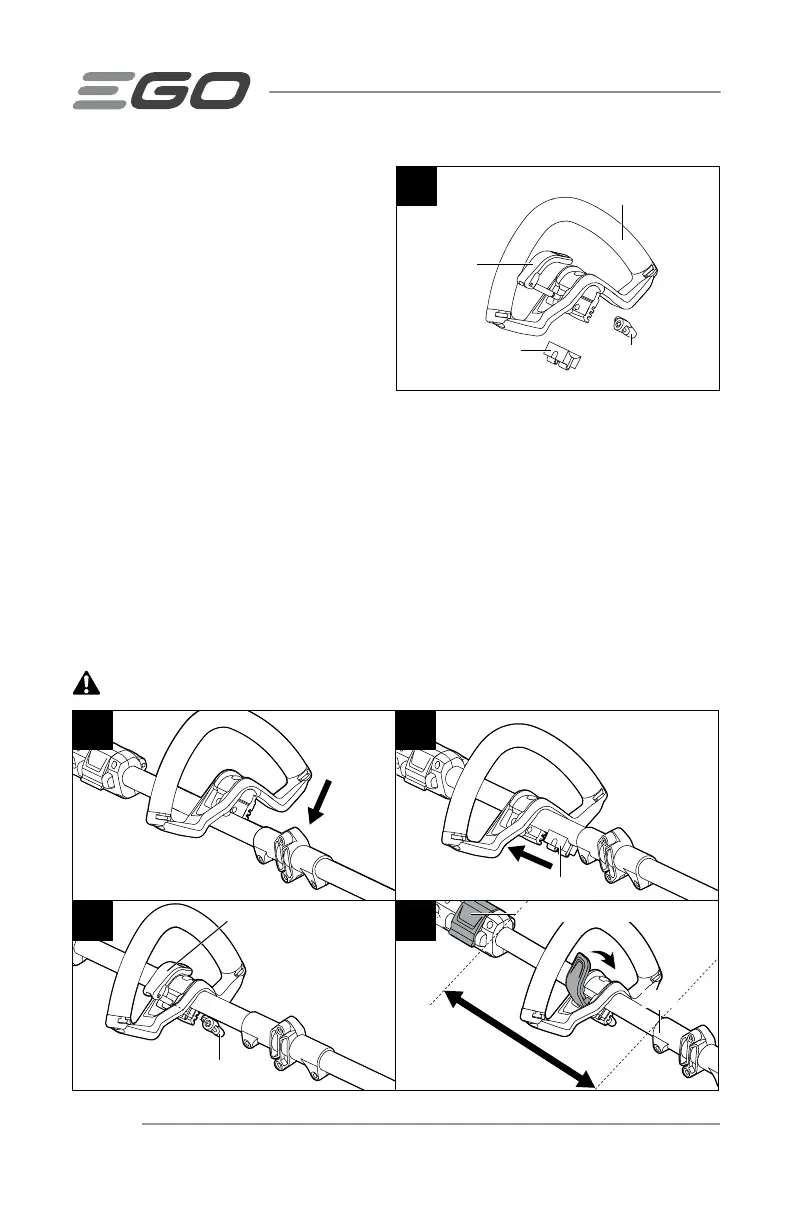

MOUNTING AND ADJUSTING THE
LOOP HANDLE
1. Loosen and remove the lock-pole
lever and wing nut from the loop
handle (Fig.6).
2. Push the loop handle onto the shaft
between the Height Locking Collar
and hinge(Fig.7).
3. Insert the clamping block into the
handle slot (Fig.8).
4. Mount the lock pole lever and pre-tighten the wing nut. Make sure that the loop
handle is positioned upwards and points toward the top of the rear handle (Fig.9).
5. Pull up the level of the lock pole so that you can easily move/rotate the loop
handle to where you feel comfortable. (Fig.10).
NOTICE: The loop handle must be only positioned between the height locking clamp
and hinge on the shaft.
6. Engage the lock-pole lever to secure the loop handle in place.
WARNING:
The tool cannot be used without the loop handle securely attached.
7 8
Clamping Block
9
Lock-Pole Lever
Wing Nut
10
Height-Locking Clamp
Hinge
6
Clamping Block
Wing Nut
Lock-Pole
Lever
Loop Handle
To Next Page
