56-VOLT LITHIUM-ION ELECTRIC ZERO TURN MOWER — ZT4200L/ZT4200L-FC24

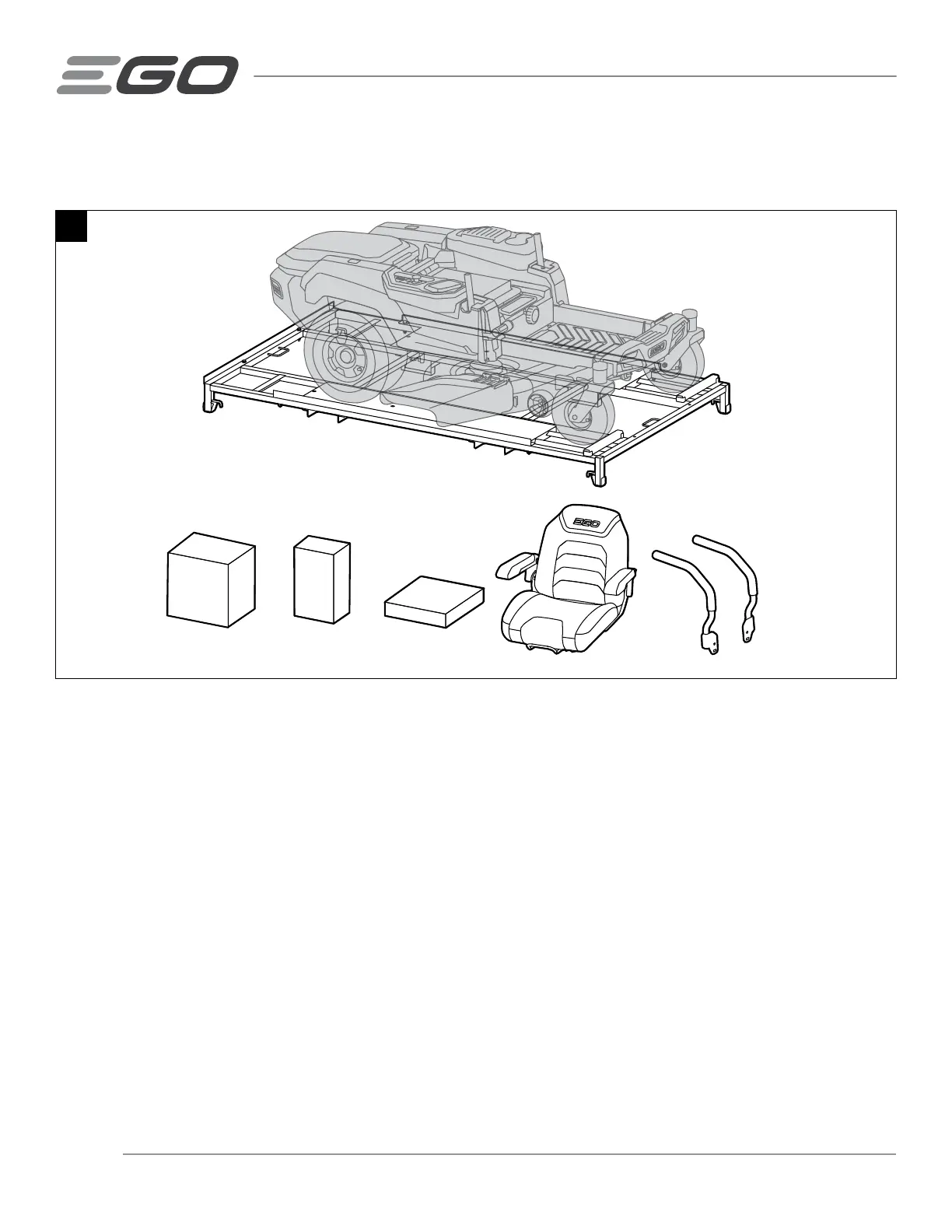

5. Remove the seat assembly and the two steering levers from the mower rst, and then remove the battery/charger
boxes from the bottom frame if they are included with the mower (Fig. 6).
Battery Charger Accessory
6
6. Remove and set aside all accessible packaging and wrap. Do not discard the packing material until you have
carefully inspected and satisfactorily operated the product.
7. If a ramp is available, position a full-width ramp against the bottom frame, close to the front wheel (Fig.7). Do not
exceed the maximum recommend operating angle of 15°.
8. Release the parking-brake pedal from the braking position. Refer to section “PARKING BRAKE SETTING” in this
manual.
NOTE: A signicant effort is required to release the parking-break pedal by hand. Push hard.
