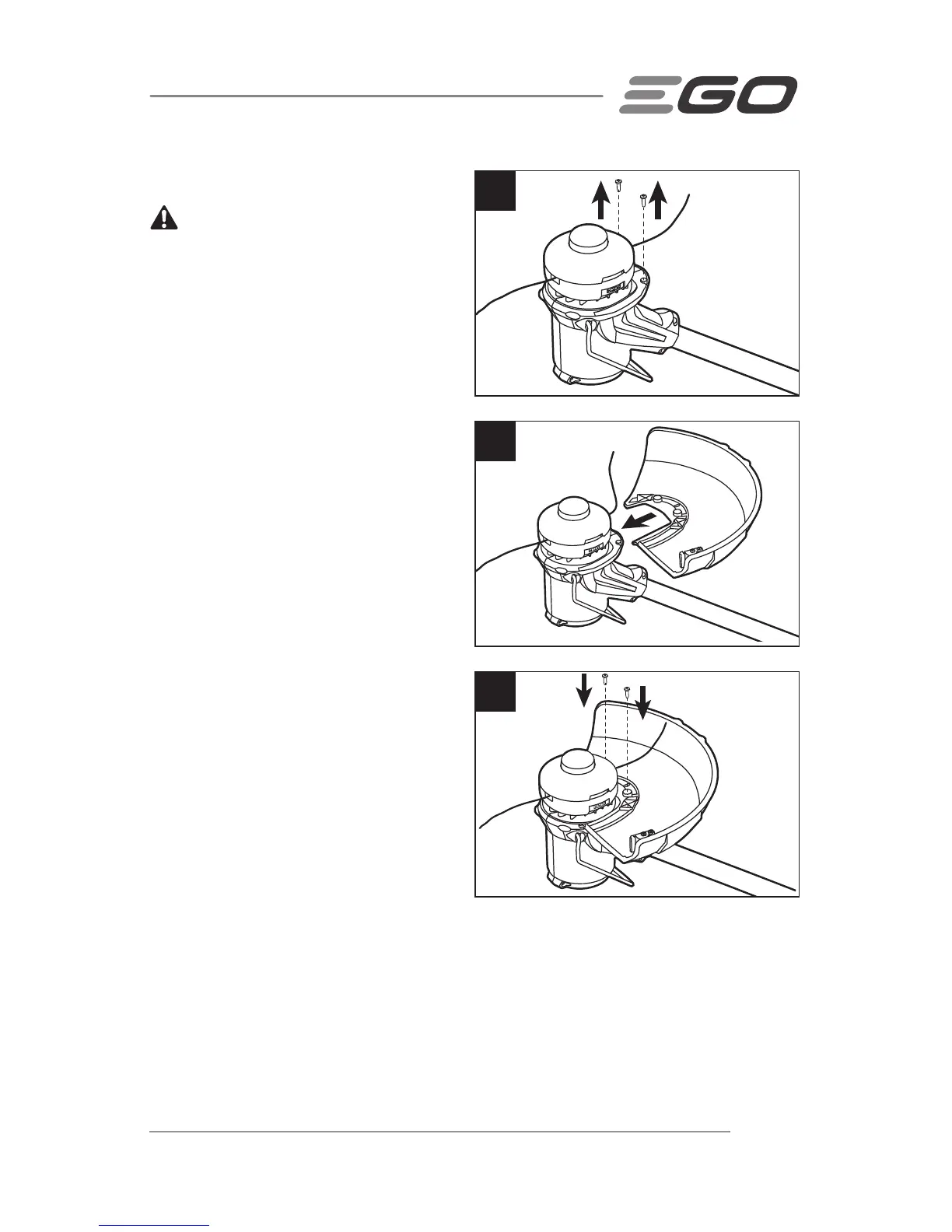

56V LITHIUM-ION CORDLESS LINE TRIMMER 13
MOUNTING THE GUARD
WARNING:
Always wear gloves
when mounting or replacing the guard.
Take care of the blade on the guard and
protect your hand from cutting.
1. Remove the battery pack from
the trimmer.
2. Position your trimmer so that the
trimmer head faces up.
3. Loosen and remove the two screws
from the motor housing with a
Phillips screwdriver (available
separately) (Fig. 1).
4. Align the ribs of the guard with the
guide slots in the motor housing and
push the guard in place (Fig. 2).
5. Lock the guard with two screws
(Fig. 3).
1
2
3
