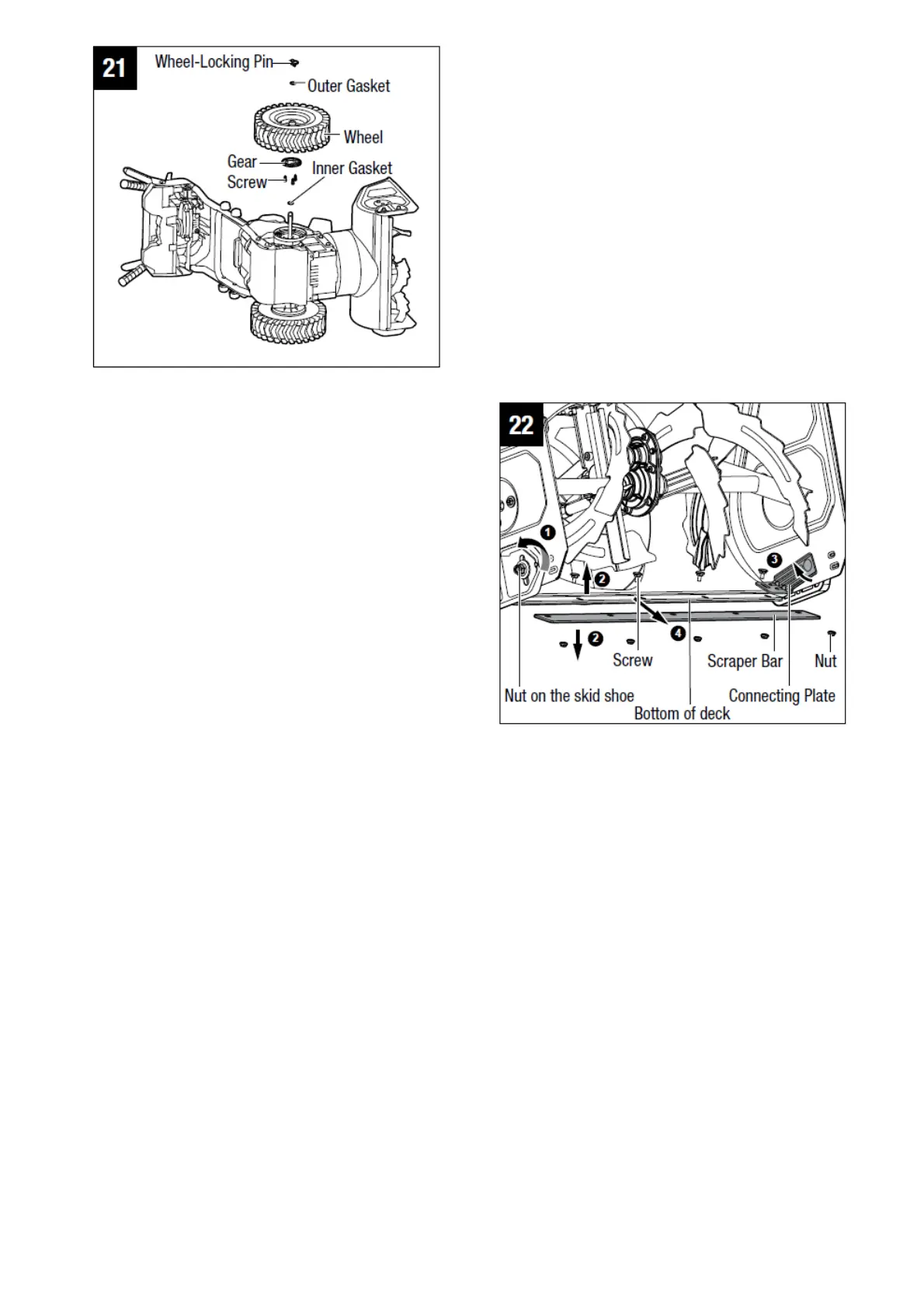

MOUNTING AND DETACHING THE SCRAPER BAR (Fig.22)
1. Remove the batteries from the snow blower.
2. Lay the snow blower on its side or any other convenient position for scraper bar service.
3. Loosen the outer nut on the skid shoe just enough to allow the inner connecting plate to freely rotate around the
corresponding screw inside (step 1 shown).
4. Loosen the connecting plate on theother side in the same way.
5. Loosen and remove the five nuts on the bottom of the deck, as well as the five screws inside (step 2 shown)
and rotate the connecting plate towards the auger chamber direction (step 3 shown) to thoroughly remove the
scraper bar away from the deck (step 4 shown).
6. Replace the worn scraper bar with a new one.
7. To reassemble, first insert the new scraper, bar between the connecting plate and the bottom of the deck.
Rotate the connecting plate until the holes in the connecting plate, the bottom of the deck, and the scraper bar
are aligned. With the five holes aligned, insert the five screws into the holes and secure them with the five nuts
on the back.
8. Securely tighten the outer nut on the skid shoe.
