1. Remove the batteries.

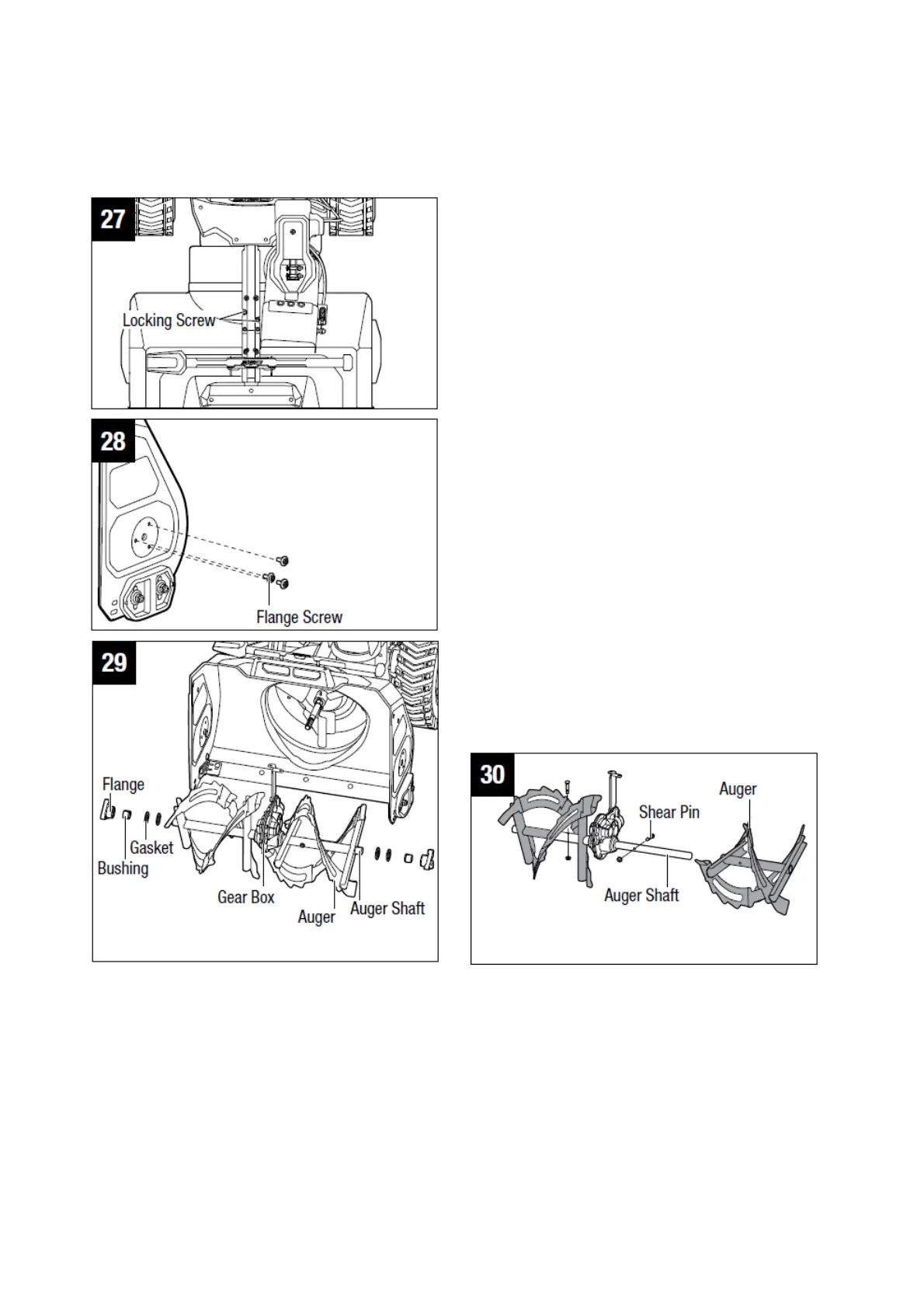

2. Remove the two locking screws on the top of the deck (Fig.27).
3. Remove the three flange screws on both left and right of the deck (Fig.28).
4. Remove the auger, together with the gearbox as a whole set from the deck. Then remove the flange, bushing
and gasket from the auger shaft (Fig.29).
5. Remove the left and right shear pin and separate the augers from the auger shaft (Fig.30).
6. Replace the worn auger and reassemble them in reverse order.
MOUNTING AND DETACHING DRIFT CUTTERS (AVAILABLE AND SOLD SEPARATELY)
1. Remove the batteries.
2. Insert the two bolts into the deck and mount the drift cutter and wing nuts onto the bolts. Pre-tighten the wing
nuts and keep the drift cutter a little loose for adjustment (Fig. 31).
3. Move the drift cutters to the desired position (Fig. 32).
4. Tighten the wing nuts to secure the drift cutters.

EGO SNT2400 Specifications

General

Stage Type	Two-stage
Clearing Width	24 inches
Battery Voltage	56 V
Auger Material	Steel
Drive System	Self-Propelled
Speed Control	Variable Speed
Intake Height	20 inches
Throwing Distance	50 feet
Number of Batteries	2
Chute Control	Remote
Speed Settings	Variable
Headlights	LED
Chute Rotation	200 degrees
