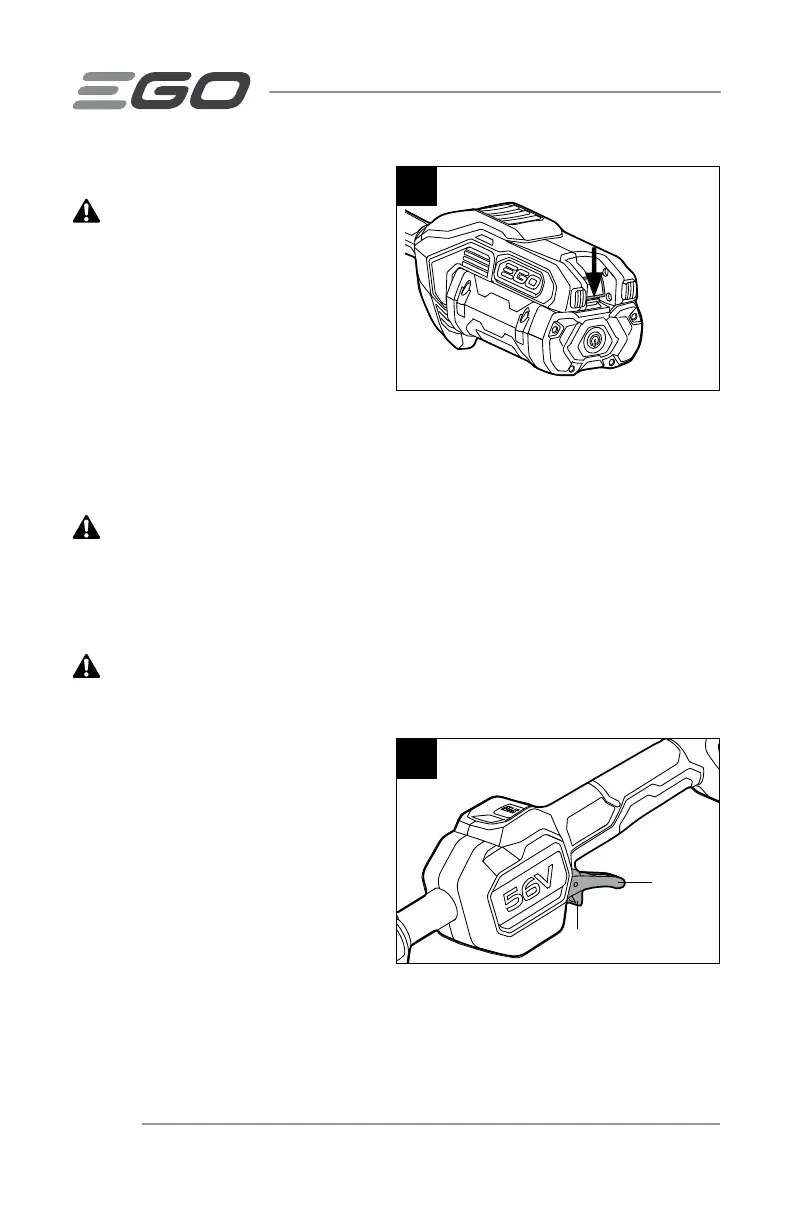

56-VOLT LITHIUM-ION POWER HEAD — PH1420/PH1420-FC22
To remove battery pack (Fig. 6)
WARNING:
Always be aware of the
location of your feet and children or pets
around you when pressing the battery-
release button. Serious injury could result
if the battery pack falls. NEVER remove
the battery pack at a high location.
1. Hold the battery pack in the palm of
your hand.
2. Press the battery-release button with your thumb; the battery pack will disengage
from the latch.
3. Grasp the battery pack and remove it from the power head.
WARNING: To avoid serious personal injury, always remove the battery pack
and keep hands clear of the lock-off lever and variable speed trigger when carrying or
transporting the tool.
STARTING/STOPPING THE POWER HEAD
WARNING:
NEVER OPERATE THE POWER HEAD WITHOUT AN ATTACHMENT. Do
not attempt to start the power head without an attachment.
To start the power head (Fig. 7)
1. Move the lock-off lever forward
and then press the variable speed
trigger. The power head will start.
2. The rotational speed of the tool is
controlled with the variable speed
trigger. More pressure on the
trigger results in higher speed; less
pressure on the trigger results in
lower speed. Adjust the speed to
suit the task at hand.
NOTICE: The motor starts only when the lock-off lever is moved forward and the
variable speed trigger is depressed at the same time.
6
Press to release
7
Variable
Speed
Trigger
Lock-off Lever
