STRING TRIMMER ATTACHMENT — STA1600/STA1600-FC24
4. Remove the battery pack if it has
been installed onto the power head
in the NOTICE after step 3.

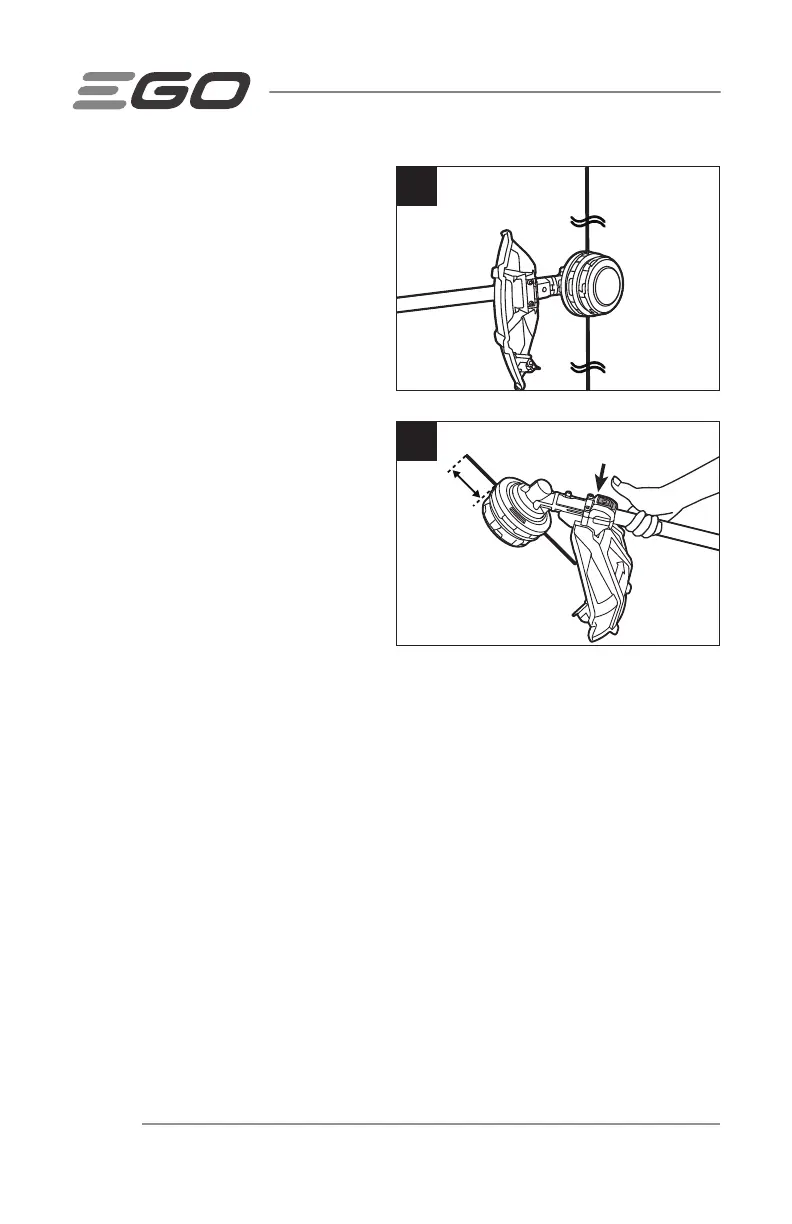

5. Pull the line from the other side until
equal lengths of the line appear on
both sides of the trimmer head
(Fig. 9).
6. Install the battery pack onto the
power head.
7. Press and hold the line-loading
button to start the line-winding
motor. The line will be wound into
the trimmer head continuously
(Fig. 10).
8. Watch the remaining line length
carefully. Prepare to release the
button as soon as approximately
7.5 inches (19 cm) of line are left
on each side. Briefly press the line-
loading button to adjust the length until 6 inches (15 cm) of the line is showing on
each side.
9. Push down on the trimmer head while pulling on the lines to manually advance
the line in order to check for proper assembly of the cutting line.
NOTICE: In case the line is pulled into the trimmer head by accident, open the head and
pull the cutting line out from the spool. Follow the section “RELOADING THE CUTTING
LINE” in this manual to reload the line.
NOTICE: When the attachment is connected to Power Head PH1400/ PH1400-FC, the
POWERLOAD
TM
system won't be functioning. In this case, the line should be reloaded
manually. Refer to the section “Manual line replacement” in this manual to reload the
line.
9
10
6 inches
(15 cm)
