making it insensitive. It is essential that all such ceiling openings be closed with
silicone sealant or similar.
1. Run the two core cable to the Alarm locations.
2.%ULQJWKHFDEOHWKURXJKWKHRSHQLQJLQWKHPRXQWLQJSODWHEHIRUHVFUHZLQJLWWR
the ceiling) see figure 9b.
3. If you are bringing the wiring along the surface, break out the two notches (see
figure 10a).
4. Using a small screwdriver, lift off the terminal block by raising it vertically (see
figure 10b).
5. Screw the two cable cores into the terminal block (see figure 10b). Then carefully
press the terminal block back on to the two pins in the base.
6. Twist the Alarm clockwise on to the mounting plate.
18
REAR OF
MO I
PLA E
BREAK O
SI E ALLS

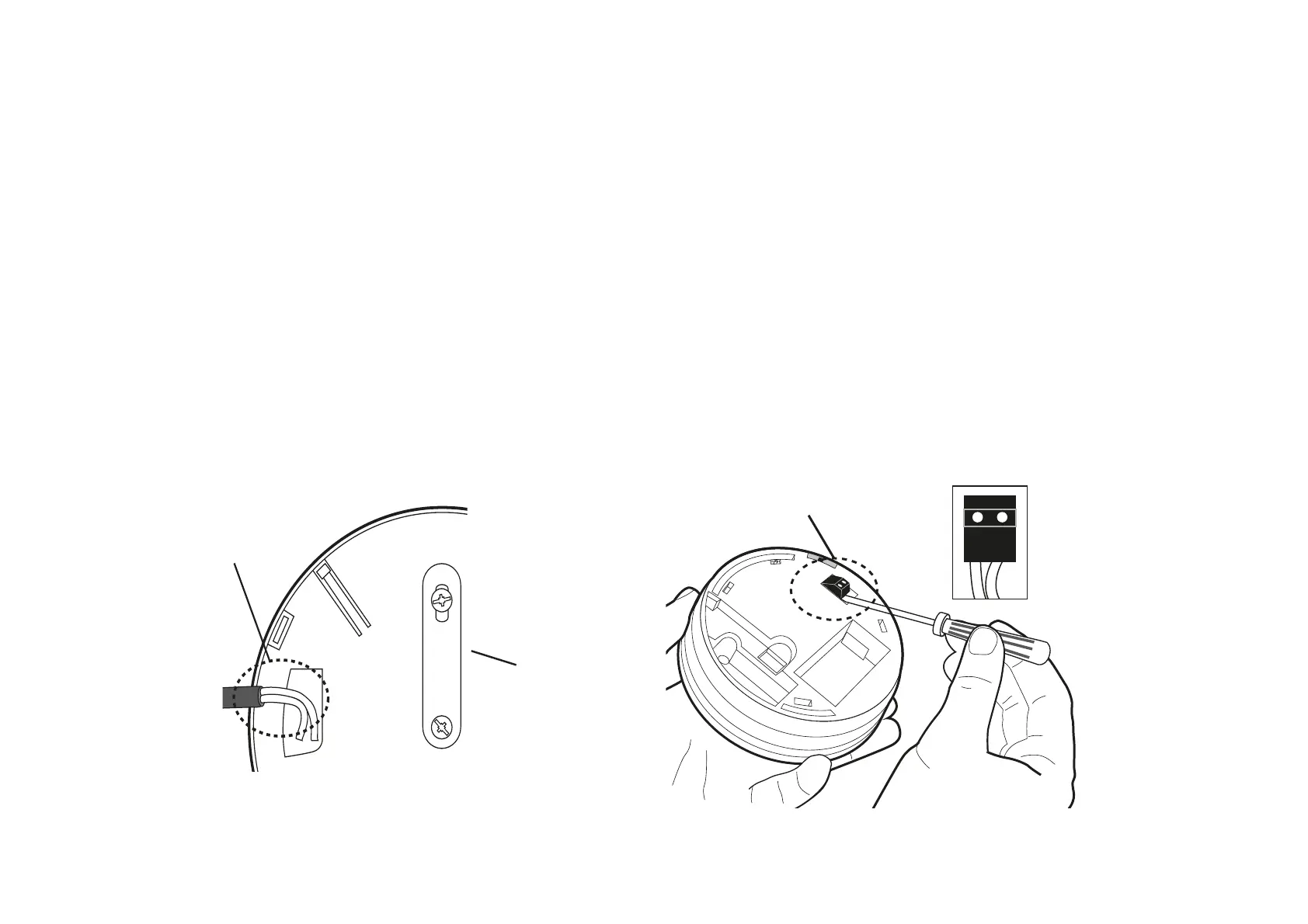

Figure 10a
SCREW
CA LES
INTO
TERMINAL
LOCK
USE SCREW RIVER TO ENTL
LI T OUT THE TERMINAL LOCK
Figure 10b
