Ei Electronics Ei650 User Manual

7
Test alarm

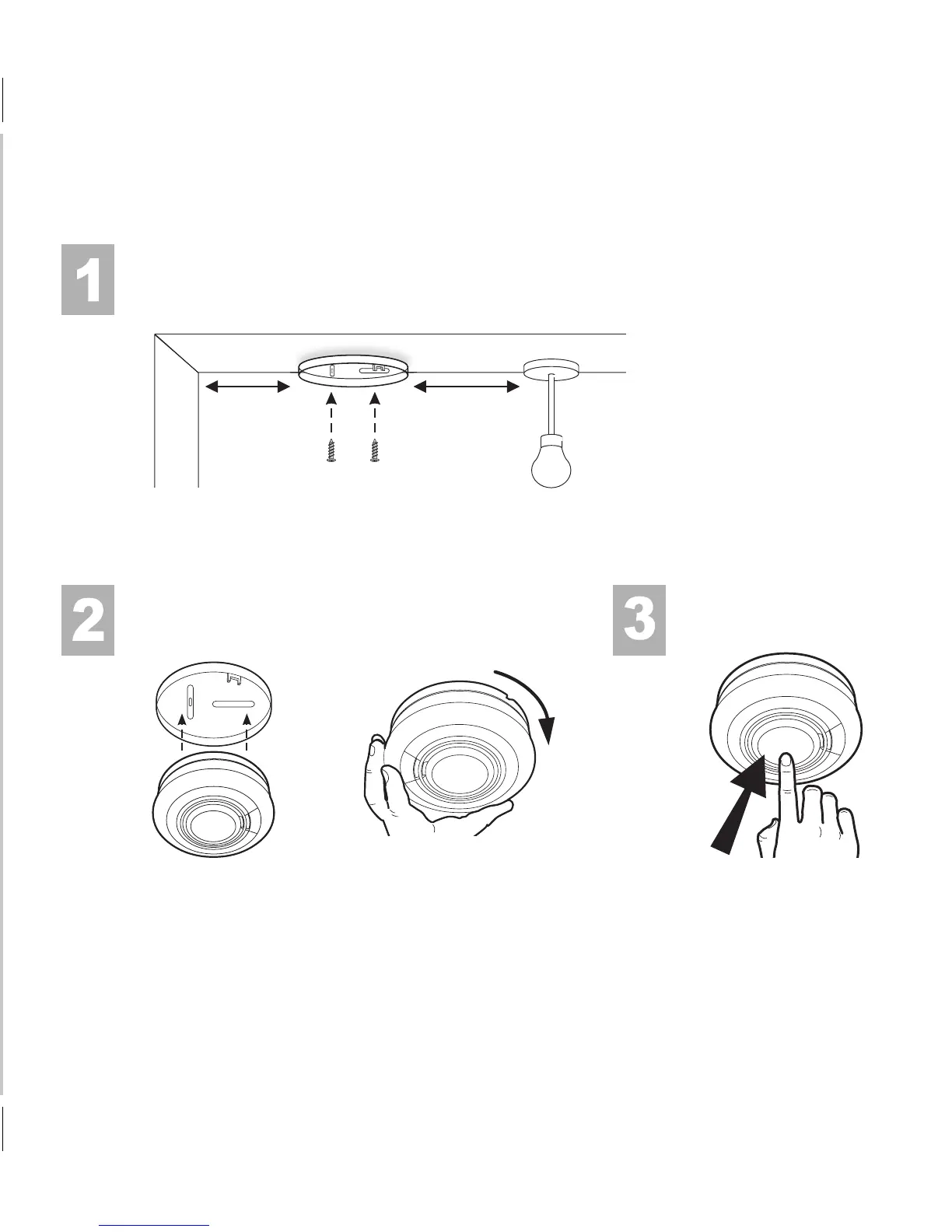

Place the alarm onto the base and
turn it.
Look for the right place to install the alarm.
Fix the mounting plate onto the ceiling.
The smoke alarm should be
installed on the ceiling, at
least 50 cm away from walls
and obstructions and ideally
in the centre of the room.
50 cm
(min.)
50 cm
(min.)
The battery is automatically
activated by twisting the
device onto the base.
Press the test button.
Test the alarm at regular
intervals, at least once per
year, in accordance with
DIN 14676.

Ei Electronics Ei650 Specifications

General

Model	Ei650
Category	Smoke Alarm
Sensor Type	Optical
Alarm Sound Level	85 dB at 3 meters
Test/Hush Button	Yes
Operating Temperature Range	0°C to 40°C
Standards Compliance	EN 14604:2005
Warranty	5 years
Interconnectable	No
Power Source	Lithium Battery
Humidity Range	15% to 95%
