EINHELL TC-SS 405 E Instruction Manual

Danger:
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read
the complete operating instructions and safety regulations with due care.
Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any
other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for
damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger:
Read all safety regulations and instructions.
Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or
serious injury.
Keep all safety regulations and instructions in a safe place for future use.
Layout and items supplied

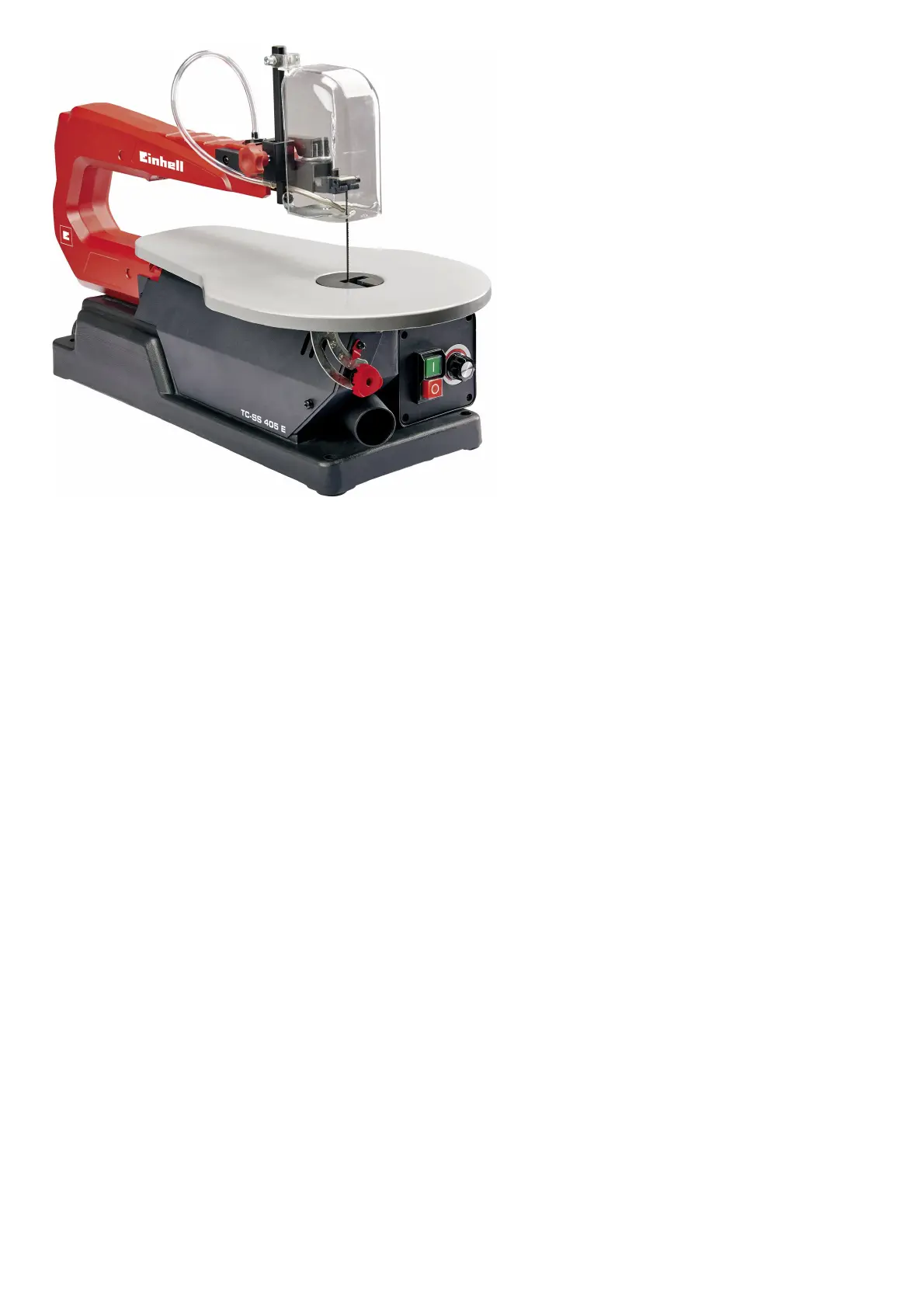

Layout (Fig. 1-4)
1. Hexagon key 4 mm
2. On/Off switch
3. Blade speed regulator
4. Cover, left
5. Locking screw
6. Dial scale
7. Saw table
8. Blade holder, bottom
9. Retention bolt
10. Blade guard
11. Clamping screw
12. Holder
13. Blade holder, top
14. Clamp lever
15. Blade

EINHELL TC-SS 405 E Specifications

General

Maximum power	120 W
AC input voltage	230 V
AC input frequency	50 Hz
Blade length	127 mm
Throat depth	406 mm
Product color	Black, Grey, Red
Stroke height	14 mm
Idle speed (max)	1600 RPM
Idle speed (min)	400 RPM
Cutting height @ 45°	20 mm
Cutting height @ 90°	52 mm

Weight and Dimensions

Weight	12500 g
Table depth	250 mm
Table width	408 mm
Package depth	644 mm
Package width	316 mm
Package height	330 mm
Package weight	13450 g
