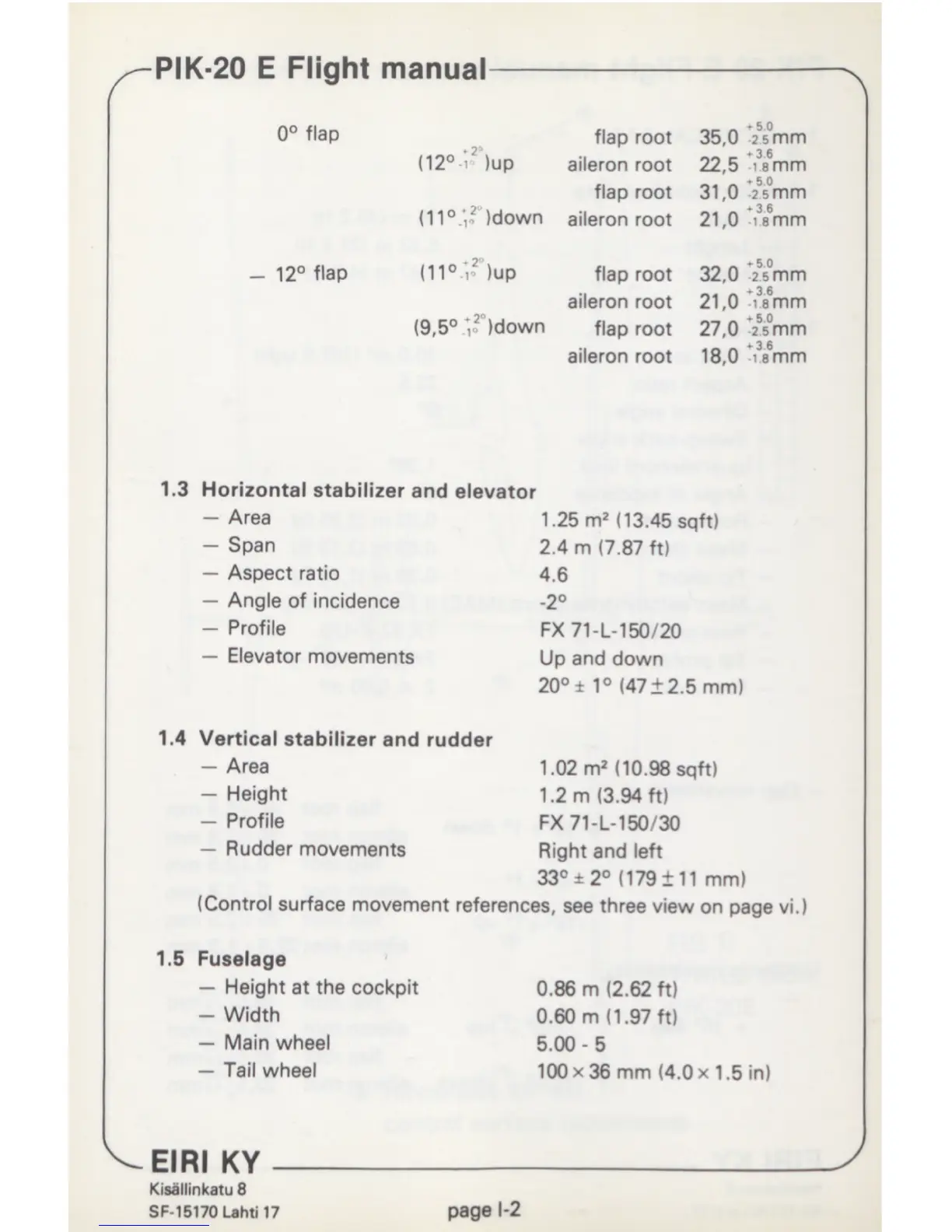

PIK-20 E Flight manual
A
0° flap
(12° r 2 )up
flap root
aileron root
_ ♦ 5.0
35,0 2.5 mm
22,5 18 mm
(11°.* r 2 )down
flap root
aileron root
_ . *50
31.0 2 s mm
21.0 i s mm
12° flap
(11°.v")up
flap root
32,0 * 2 5 6 °mm
aileron root
21,0 *i 3 8 6 mm
(9,5° V 2 (down
flap root
27,0 *2 5 5°mm
aileron root
18,0 *i 3 8 6 mm
1.3
Horizontal stabilizer and elevator
— Area
— Span
— Aspect ratio
— Angle of incidence
— Profile
— Elevator movements
1.25 m 2 (13.45 sqft)
2.4 m (7.87 ft)
4.6
- 2 °
FX 71-L-150/20
Up and down
20° ± 1° (47 ±2.5 mm)
1.4 Vertical stabilizer and rudder
- Area 1.02 m z (10.98 sqft)
-Height 1.2 m (3.94 ft)
-Profile FX 71-L-150/30
— Rudder movements Right and left
33° ±2° (179 ±11 mm)
(Control surface movement references, see three view on page vi.)
1.5 Fuselage
— Height at the cockpit
- Width
— Main wheel
— Tail wheel
0.86 m (2.62 ft)
0.60 m (1.97 ft)
5.00-5
100 x 36 mm (4.0 x 1.5 in)
EIRI KY
V
Kisällinkatu 8
SF-15170 Lahti 17
page I-2
