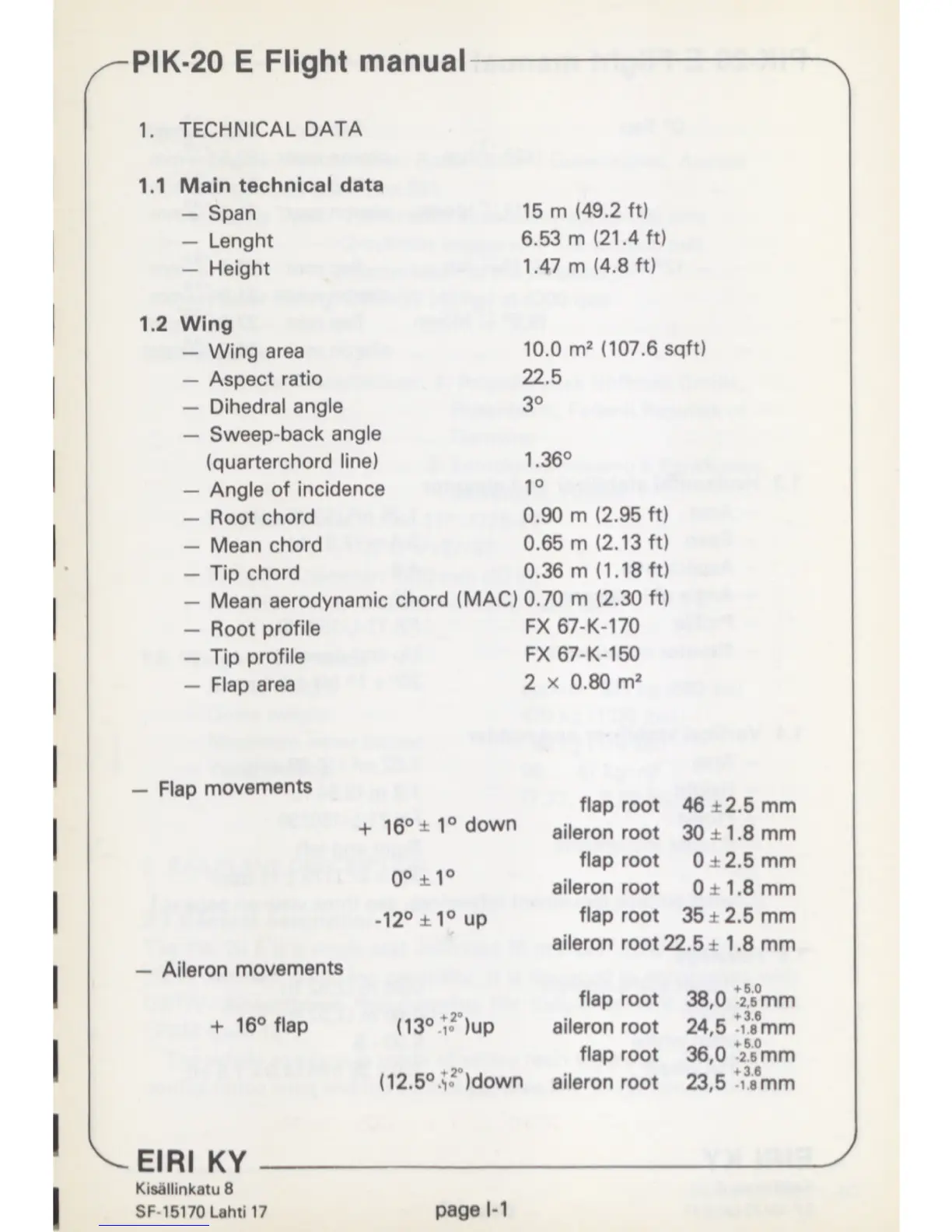

PIK-20 E Flight manual
1. TECHNICAL DATA
1.1 Main technical data
— Span
— Lenght
— Height
1.2 Wing
— Wing area
— Aspect ratio
— Dihedral angle
— Sweep-back angle
(quarterchord line)
— Angle of incidence
— Root chord
— Mean chord
— Tip chord
— Mean aerodynamic
— Root profile
— Tip profile
— Flap area
15 m (49.2 ft)
6.53 m (21.4 ft)
1.47 m (4.8 ft)
10.0 m 2 (107.6 sqft)
22.5
3°
1.36°
1 °
0.90 m (2.95 ft)
0.65 m (2.13 ft)
0.36 m (1.18 ft)
(MAC) 0.70 m (2.30 ft)
FX 67-K-170
FX 67- K- 150
2 x 0.80 m 2
chord
— Flap movements
— Aileron movements
+ 16° flap
flap root
46 ±2.5 mm
16° ± 1°
down
aileron
root
30 ±1.8 mm
0° ±1°
flap root
0 ±2.5 mm
aileron
root
0 ± 1.8 mm
-12° ±1°
up
flap root
35 ± 2.5 mm
aileron
root
22.5 ± 1.8 mm
flap root
38,0 ±5°mm
(13°.;. 2 ‘
)up aileron root
O/l c +36
24,5 vs mm
(12.5°.;. 2 ‘
flap root
36,0 *2 6 mm
(down
aileron
root
23,5 'umm
EIRI KY
J
Kisällinkatu 8
SF-15170 Lahti 17
page 1-1
