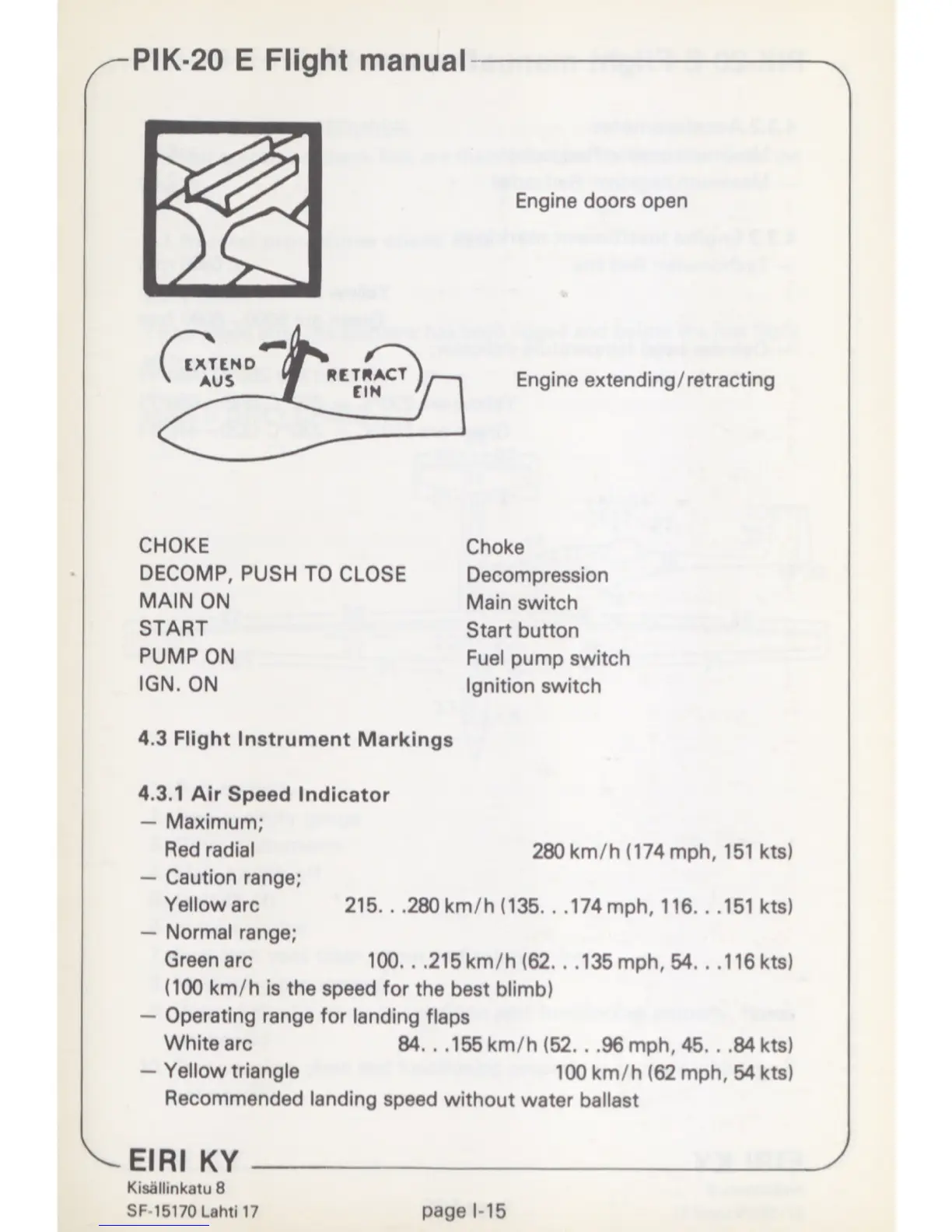

PIK-20 E Flight manual
CHOKE
DECOMP, PUSH TO CLOSE
MAIN ON
START
PUMP ON
IGN. ON
Choke
Decompression
Main
switch
Start button
Fuel pump switch
Ignition switch
4.3 Flight Instrument Markings
4.3.1 Air Speed Indicator
— Maximum;
Red radial 280 km/h (174 mph, 151 ktsl
— Caution range;
Yellow arc 215.. .280 km/h (135.. .174 mph, 116.. .151 kts)
— Normal range;
Green arc 100.. .215 km/h (62. . .135 mph, 54.. .116 kts)
(100 km/h is the speed for the best blimb)
— Operating range for landing flaps
White arc 84. . .155 km/h (52.. .96 mph, 45.. .84 kts)
— Yellow triangle 100 km/h (62 mph, 54 kts)
Recommended landing speed without water ballast
EIRI KY _____ _V
Kisällinkatu 8
SF-15170 Lahti 17
page 1-15
