Note 4: When needed the actual C. of G. in flight can be calculated ac
cording to 6.2.
6.1.1. "Empty weight C. of G. range" -criteria
When loading the sailplane you can use the pilot weight range 70 kg to
110 kg (incl. parachute), if the empty weight C. of G. corresponding the
actual empty weight is between the allowed limits given in fig. 6.1.
/-PIK-20 E Flight manual ---------------------------------
%
[kg]
340
330
320
310
300
290
2,600 2,650 x Q [m]

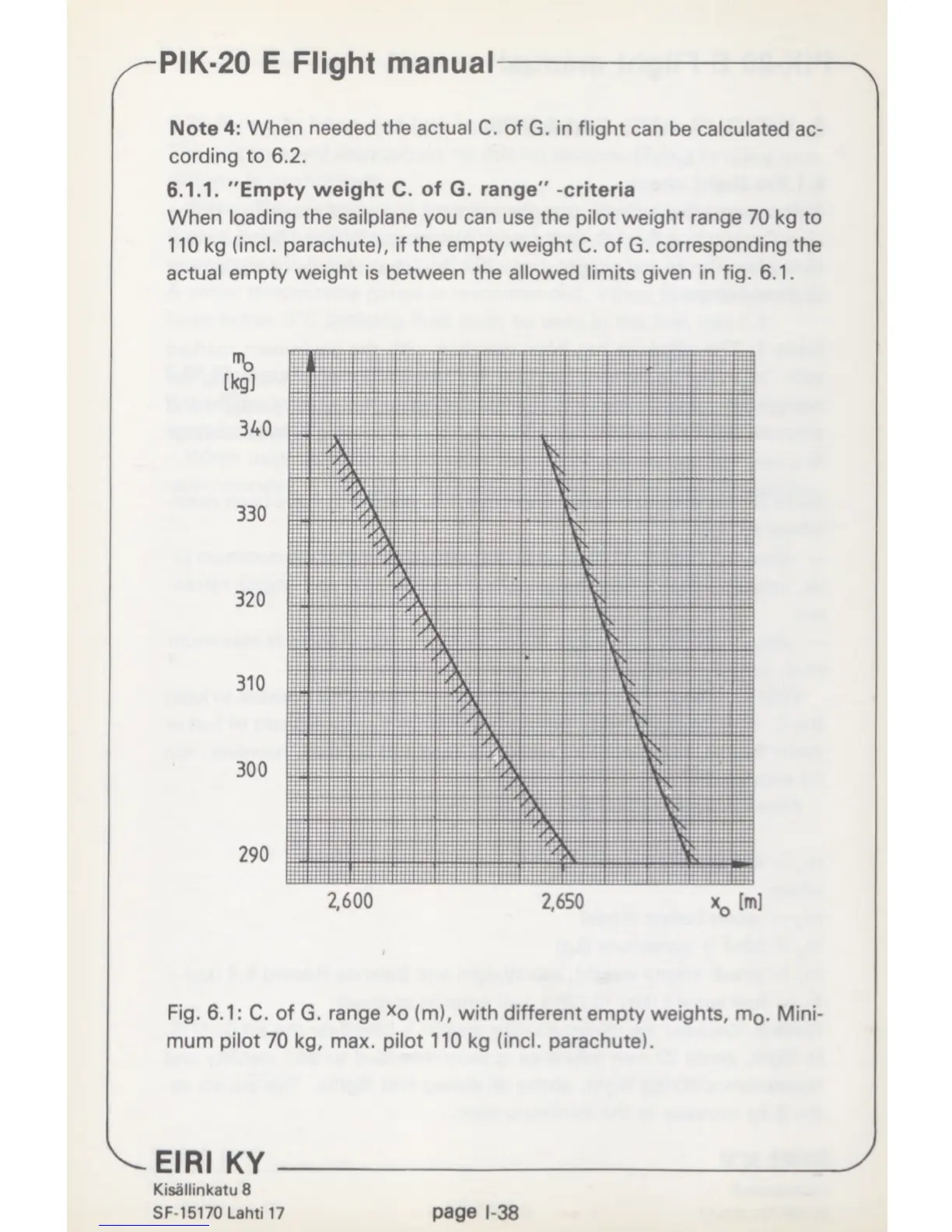

Fig. 6.1: C. of G. range x o (m), with different empty weights, m 0 . Mini 
mum pilot 70 kg, max. pilot 110 kg (incl. parachute).
