Chapter 1 Introduction

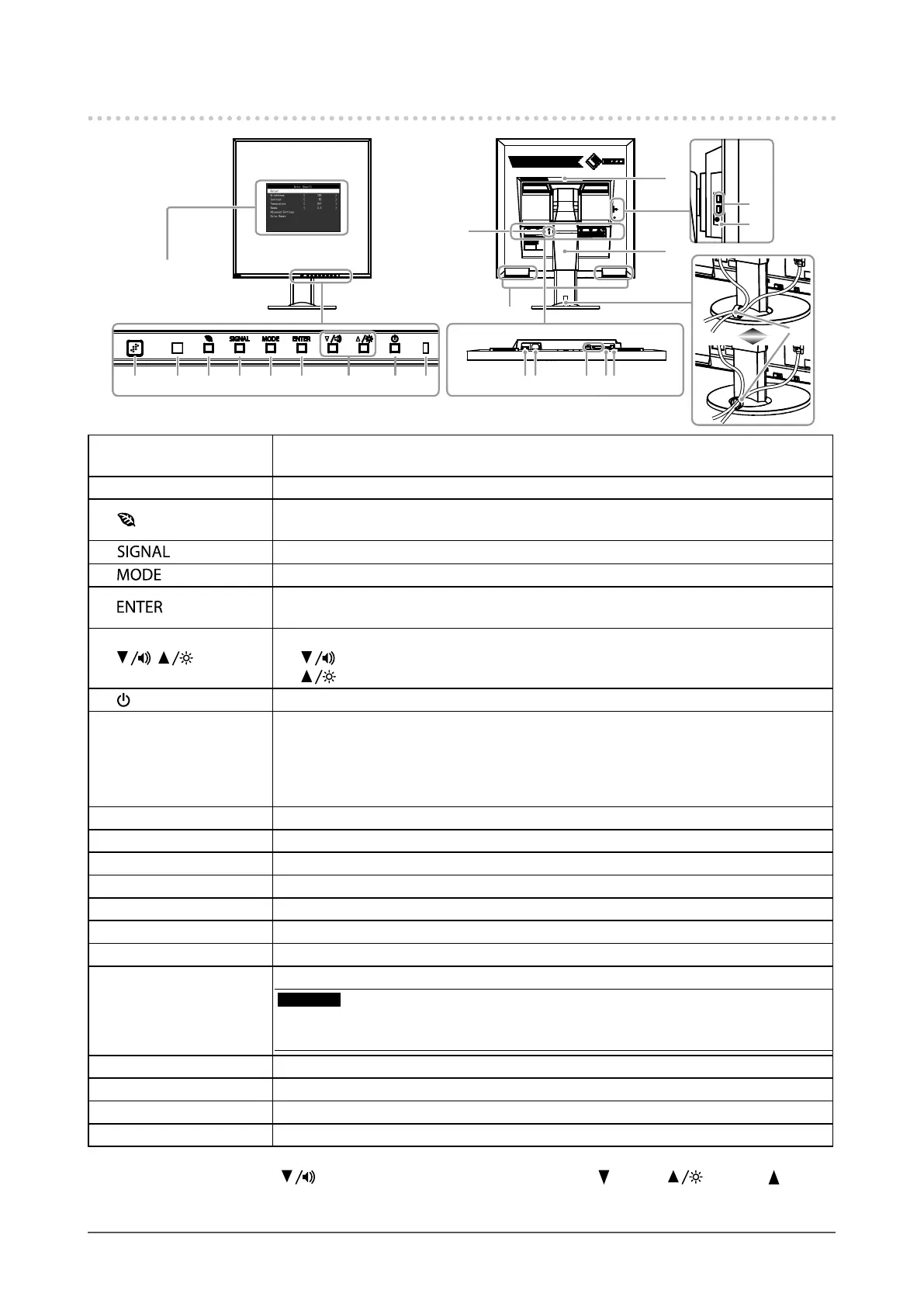

1-2. Controls and Functions
18
17
6 7 8 9521 3 4
1011 14
12
16
13
15
19
20
21
Setting menu
*1
1. EcoView Sense sensor
Detects the movement of a person in front of the monitor (EcoView Sense function (page
25)).
2. Ambient light sensor Detects ambient brightness (Auto EcoView function (page 24)).
3.
button
Displays the setting menu of the power saving function (Auto EcoView (page 24) and
EcoView Sense (page 25)).
4.
button Switches input signals for display (page 37).
5.
button Changes the FineContrast mode (page 13).
6.
button
Displays the Setting menu, determines an item on the menu screen, and saves values
adjusted (page 9).
7.
, button
*2
• Provides the menu selection as well as the adjustment and setting of a function.
•
button: Displays the volume adjustment menu (page 19).
button: Displays the Brightness adjustment menu (page 14).
8.
button Turns the power on or off.
9. Power indicator
Indicates the monitor’s operation status.
White: Operating
Orange: Power saving mode
OFF: Main power / Power off
10. Main power switch Turns the main power on or off.
11. Power connector Connects the power cord.
12. Input signal connector Left: DisplayPort connector / Right: DVI-D connector
13. Stereo mini jack Connects the stereo mini jack cable (commercially available product).
14. USB upstream port Connects the USB cable for using the USB Hub function (page 38).
15. Security lock slot Complies with Kensington’s MicroSaver security system.
16. Speaker Outputs audio source.
17. Handle
Handle used for transportation
Attention
• Firmly grasp and hold the monitor by the bottom while grabbing the handle, and
carefully convey the monitor so as not to drop it.
18. Stand
*3
Adjusts the height and angle (tilt and swivel) of the monitor.
19. USB downstream port Connects a peripheral USB device.
20. Headphone jack Connects the headphones.
21. Cable holder Covers the monitor cables.
*1 See “1-3. Basic Operations and Functions” (page 9) for how to use.
*2 In this User’s Manual, the
button may be hereafter simply displayed as , and the button as .
*3 An optional arm (or an optional stand) can be attached by removing the stand (see “6-1. Attaching the Optional
Arm” (page 31)).
