EK-Quantum Vector Strix RTX 3080 D-RGB - Cleaning the PCB; Thermal Pad Management; Cutting and Placing Thermal Pads

- 9 -
STEP 3
STEP 1
Your GPU water block comes with thermal pads that have to be cut
into smaller pieces to cover all the VRM components, such as COILs,
MOSFETs, and drivers.
You must remove the protective foil from both sides of the
thermal pad before installation.
Thermal pads:
5x Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732
STEP 1
Thermal Pad F – 1.0 mm (120 x 16 mm)
STEP 3

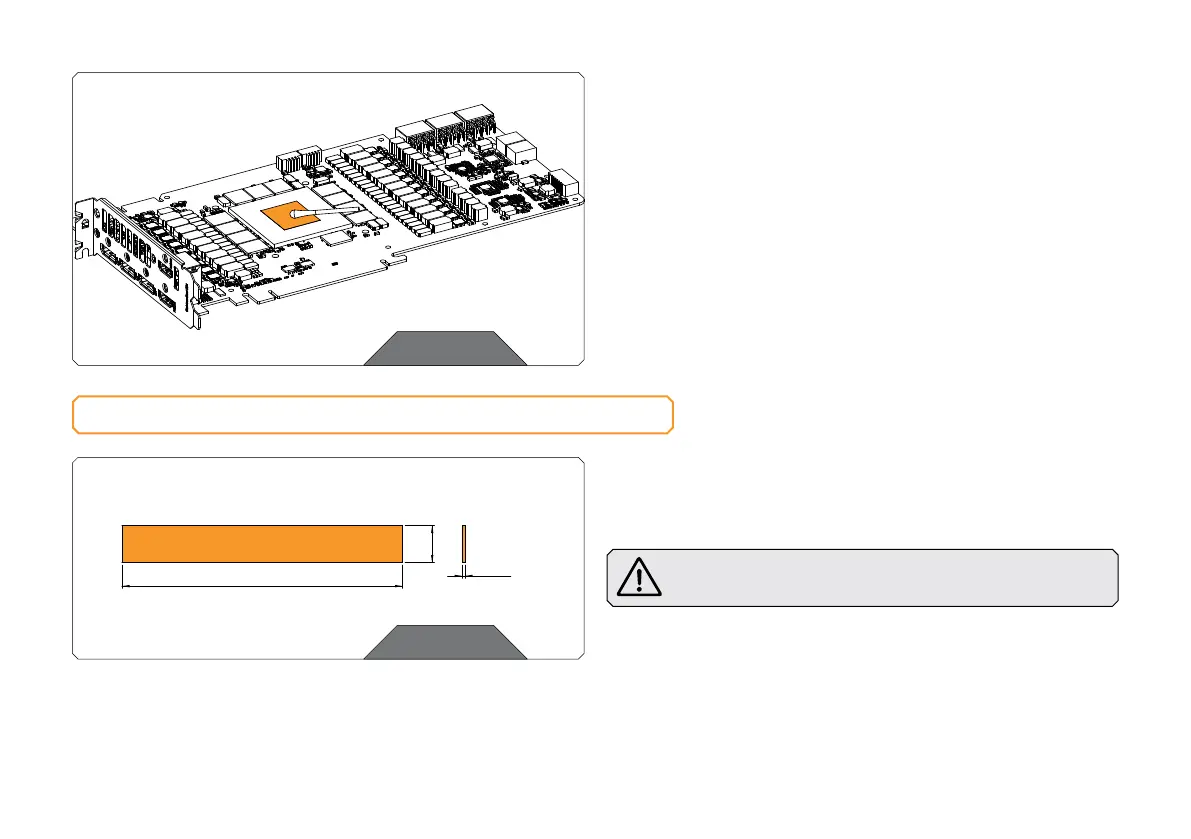

CLEANING THE PCB
Wipe off the remains of the original thermal compound using a
nonabrasive cloth or Q-tip, as shown in the sample image, until the
components and circuit board are completely clean. EK recommends
the use of denatured alcohol for removing TIM leftovers. After that,
remove all remaining stock thermal pads from the PCB.
CUTTING AND PLACING THERMAL PADS
120 mm
16 mm
1 mm
