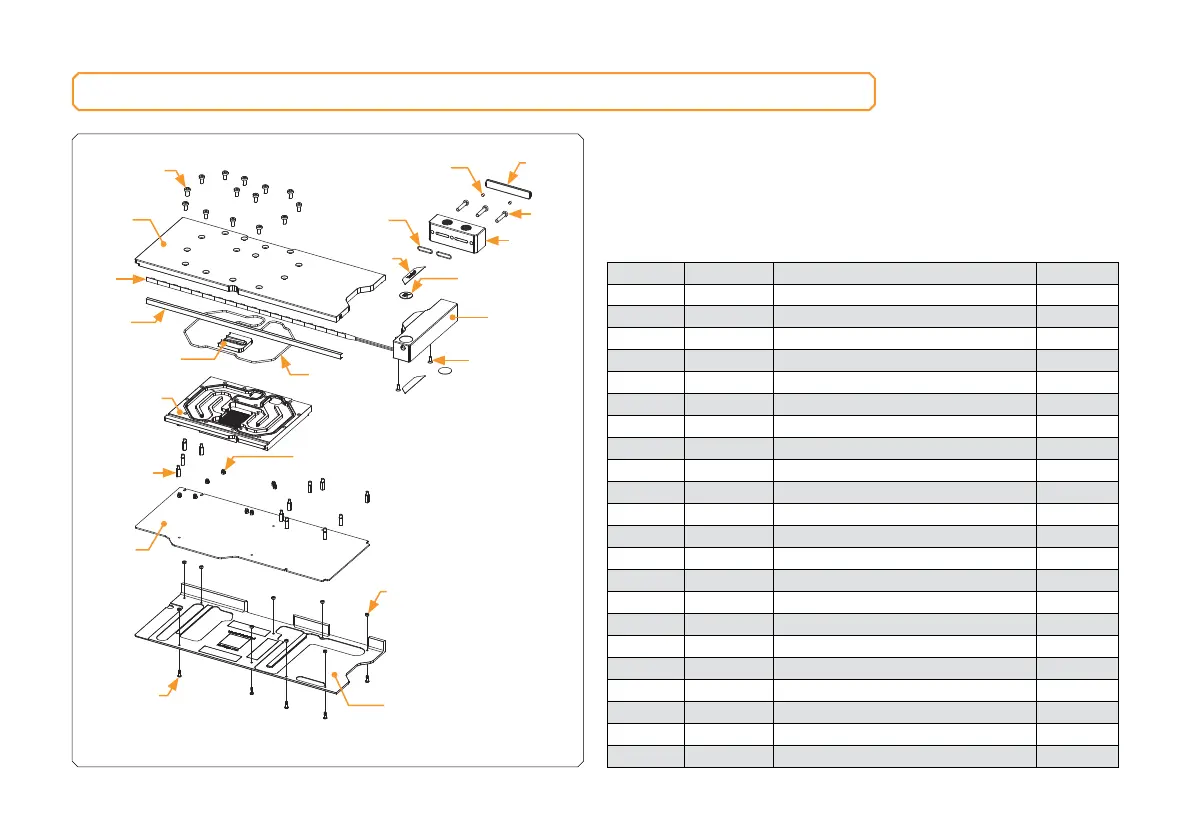

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
Technical Specification:
- Dimensions: (L x H x W): 325.6 x 148 x 27 mm
- D-RGB LED count: 17
- D-RGB cable length: 50 cm
- D-RGB connector 3-pin 5V digital LED header
(Pinout: +5V | Data | Blocked | Ground)
Position EAN Description Quantity
1 106275 Coldplate (Ni) 1
2 103987 Standoff M3.5-M2.5 x 3 mm 8
3 106279 Top plate (Plexi) 1
4 103970 Stand out (Acetal) 1
5 106133 Plexi insert 1
6 106278 Backplate (Bl. Elox) 1
7 104188 Standoff fi 4.5/2.5 mm 9
8 103947 FC Terminal (Acetal) 1
9 106282 LED Cover (N.elox) 1
10 103986 Standoff M3.5-M2.5 x 11.3 mm 12
11 8208 Screw M3 x 8 7991DIN 2
12 104187 Screw M2.5 x 8 AX1 9
13 100663 EK - Badge 2
14 9013 Screw M4 x 8 DIN7984 14
15 104216 Disc magnet 3 x 3 2
16 8311 Screw M4 x 20 DIN7984 3
17 104106 Terminal OR - 14 x 1 mm 2
18 101556 LED D-RGB strip 500/300 mm 1
19 103964 Mylar sticker 2
20 104345 Terminal (Radeon) Badge 1
21 106285 PCB cardboard 1
22 5083 OR 170 x 2 NBR70 1
20
7
13
2
16
8
11
22
4
14
19
15
17
3
1
10
18
5
9
6
12
21
