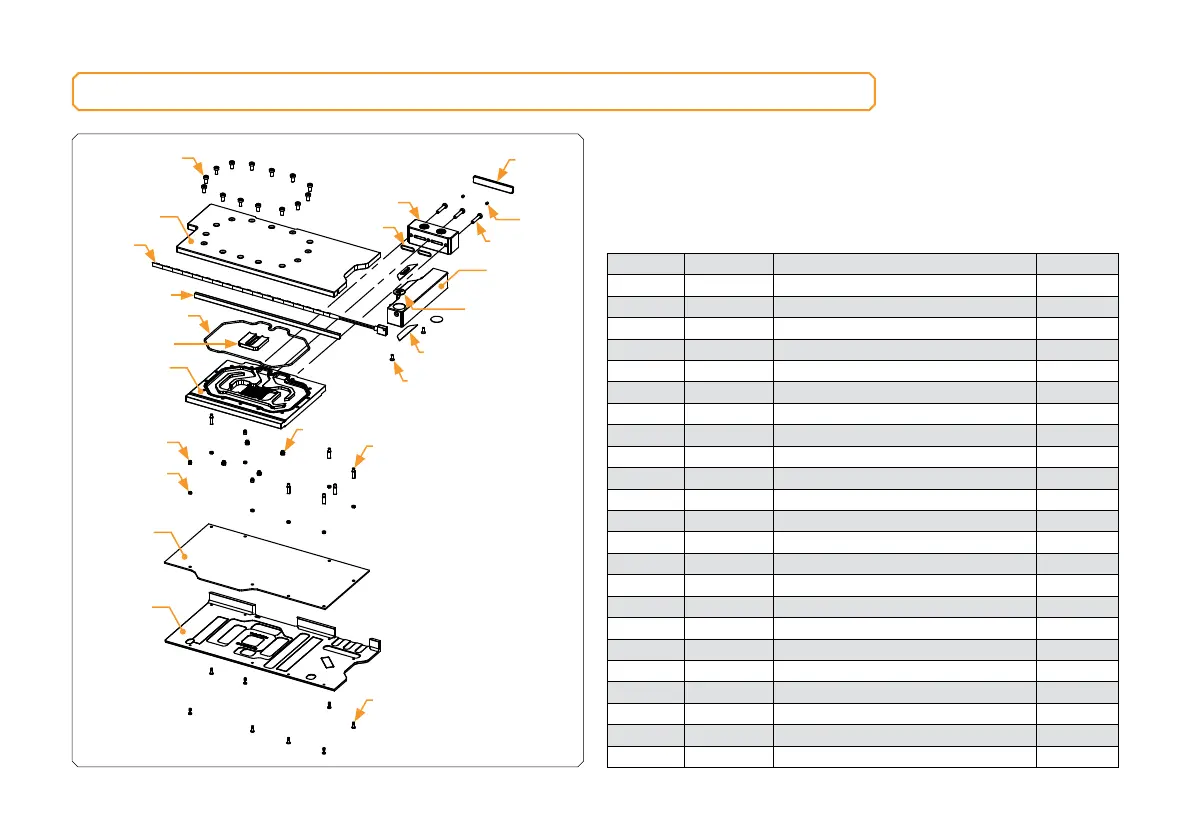

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
NICKEL PLEXI
- Dimensions: (LxHxW): 307.5 x 155 x 41mm
- D-RGB LED count: 15
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header
Position EAN Description Quantity
1 103947 FC Terminal 1
2 103971 TOP Acetal Stand Out 1
3 104489 Coldplate ( Nickel) 1
4 104499 Backplate (Bl. elox) 1
5 104492 TOP Plexi 1
6 103962 Plexi Insert 1
7 104216 Disc magnet 2
8 103942 Terminal Badge 1
9 104106 Terminal OR - 14x1 mm 2
10 8311 Screw M4x20 DIN7984 3
11 103988 StandoffM4-M2.5 x 3mm 4
12 103987 Standoff M3.5-M2.5 x 3 3
13 103986 Standoff M3.5-M2.5 x 11.3mm 6
14 9013 Screw M4x8 DIN7984 14
15 104508 Main O-ring 142x2 mm 1
16 104188 Standoff fi 4.5/2.5 - brizgan - Black 8
17 104187 Screw M2.5x8 AX1 8
18 104494 LED Cover 1
19 100663 EK - Badge 2
20 103964 Mylar sticker 2
21 8208 Screw M3x8 7991DIN 2
22 100815 LED D-RGB strip 500/300mm 1
23 104900 PCB Cardboard 1
8
13
17
11
2
7
19
10
20
21
14
1
9
22
15
12
16
3
5
23
4
18
6
