3.
. .

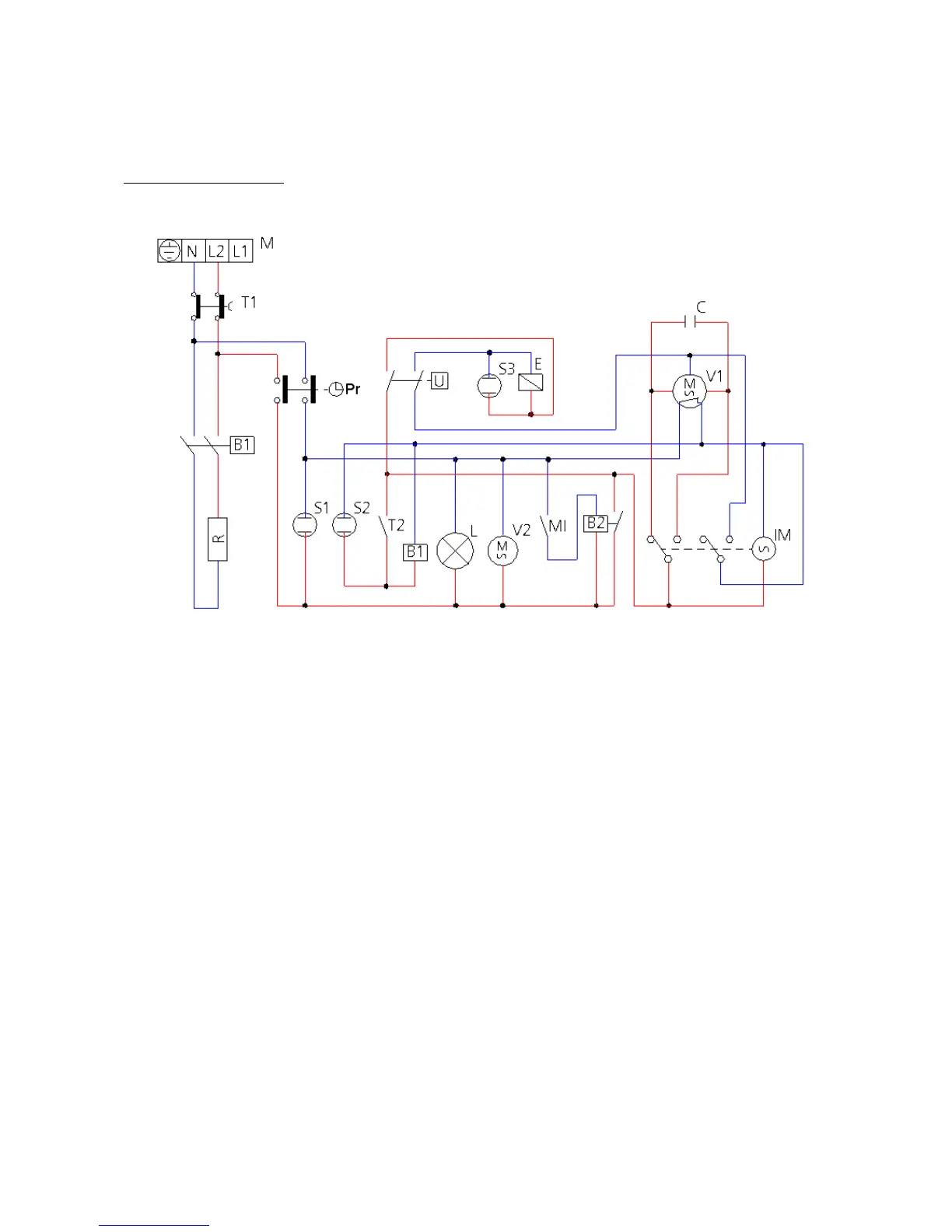

. Wiring layouts
Wiring layoutsWiring layouts
Wiring layouts
Key
KeyKey
Key
M Power terminal board
T1 Safety thermostat
T2 Oven thermostat
L Oven lighting lamp
R Circular heating-element
V1 Oven motorised ventilator
V2 Tangential motorised ventilator
C Condensatore
Pr "End of cooking" programmer
S1 Programmer indicator light
S2 Thermostat indicator light
S3 Humidity indicator light
IM Operating direction reversing element
U Automatic humidifier
E Humidifier solenoid-valve
MI Door microswitch
B1 Contactor coil
B2 Contactor relais
