eka KF 912 - Page 14

_ TECNOEKA Srl _________________________________________________________ use and instruction manual _
_ page 14 _________________________________________________________________________________________
M
MM
MOD
ODOD
ODD
DD

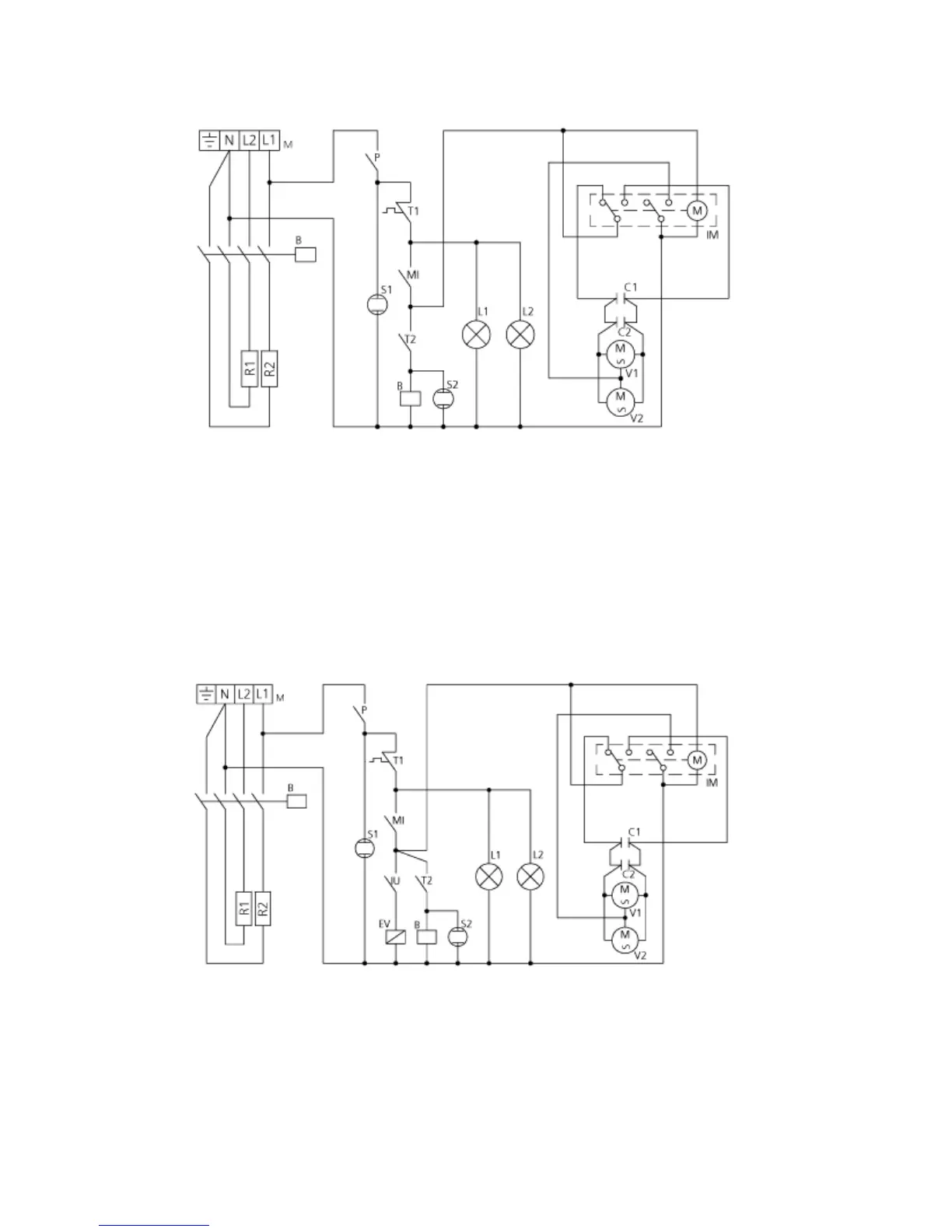

D. KF 933
. KF 933. KF 933
. KF 933 –
––
– KF 933 AL
KF 933 ALKF 933 AL
KF 933 AL
Key
KeyKey
Key
M
Power terminal board
P "End of cooking" programmer
MI Door microswitch
T1 Safety thermostat
T2 Control thermostat
R1-R2 Circular heating-elements
L1-L2 Lighting lamps
V1
-
V2
Radial
motoventilators
C1-C2 Capacitors
IM Operating direction reversing element
B Contactor coil
S1 Programmer indicator light
S2 Thermostat indicator light
MOD
MODMOD
MODD
DD
D. KF 933 U
. KF 933 U. KF 933 U
. KF 933 U –
––
– KF 933 AL
KF 933 ALKF 933 AL
KF 933 AL U
UU
U
Key
KeyKey
Key
M
Power terminal board
P "End of cooking" programmer
MI Door microswitch
T1 Safety thermostat
T2 Control thermostat
EV Humidifier solenoid-valve
IU Humidifier switch
L1-L2 Lighting lamps
R1
-
R2
Circular heating
-
elements
V1-V2 Radial motoventilators
C1-C2 Capacitors
IM Operating direction reversing element
B Contactor coil
S1 Programmer indicator light
S2 Thermostat indicator light
