eka KF 912 - Page 15

_ Electric Ovens _ rev. 4____ ______ ________ KF 937 – KF 937 UD – KF 933 – KF 933 U – KF 933 AL – KF 933 AL U
KF 912 - KF 912 IX – KF 965 – KF 965 M – KF 965 AL UD – KF 966 UD _
_________________________________________________________________________________________ page 15 _

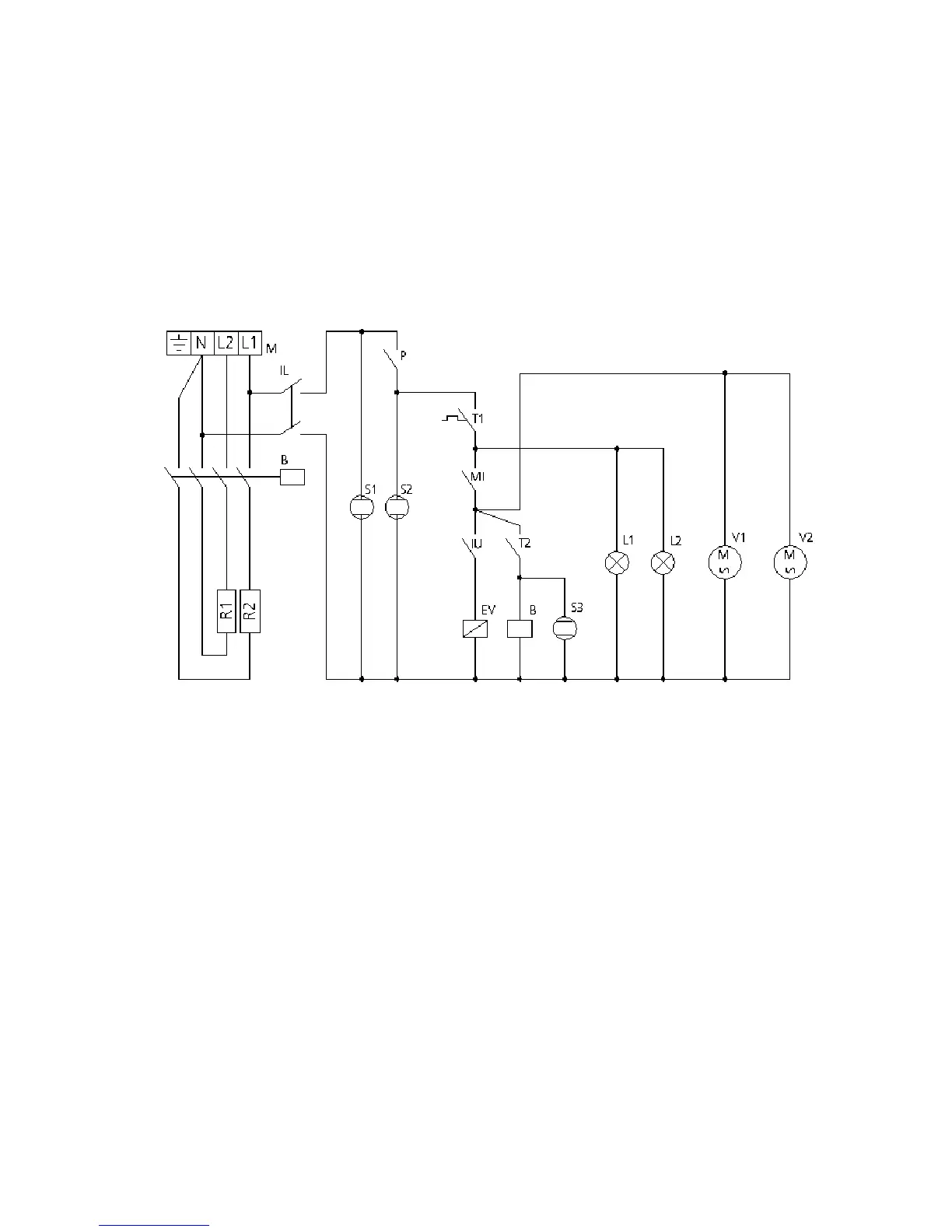

MODD. KF 912
MODD. KF 912 MODD. KF 912
MODD. KF 912 –
––
– KF 912 IX
KF 912 IXKF 912 IX
KF 912 IX
Key
KeyKey
Key
M Power terminal board
P "End of cooking" programmer
MI Door microswitch
T1 Safety thermostat
T2 Control thermostat
IU Humidifier switch
IL Power line switch
L1-L2 Lighting lamps
R1-R2 Circular heating elements
V1-V2 Radial motoventilators
EV Water solenoid-valve
B Contactor coil
S1 Power line indicator light
S2 Programmer indicator light
S3 Thermostat indicator light
