4.7 Understanding the CORE 500™ Screen

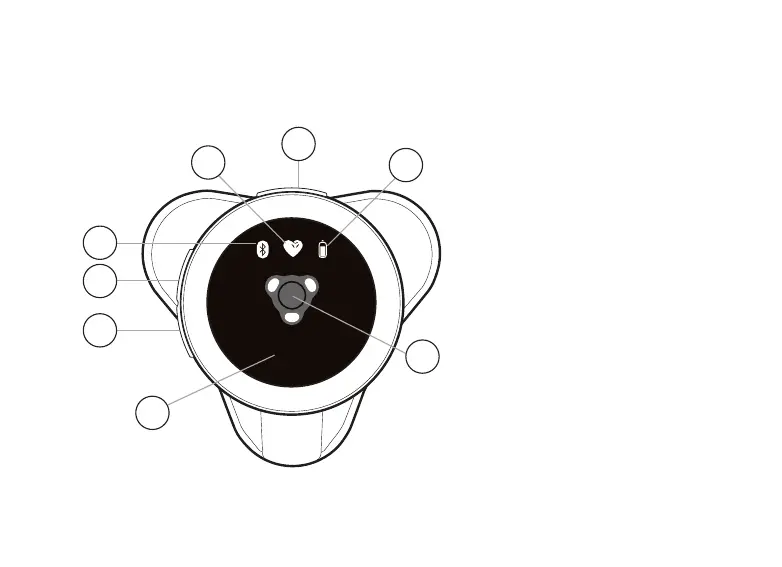

1. Current audio filter:
• Wide (for all use cases)
• Cardiac (with ECG)
• Pulmonary (with lung sounds)
2. Top button:
a. Change filter:
= press for <1 second
b. Start Recording:
= press for 2 seconds
3. Battery level
4. Bluetooth connected
5. Volume up button
6. Volume down button
7. Real-time heart rate in beats
per minute
8. Leads indicator:
a. O = No skin contact detected
b. ✓ = Skin contact detected
Resting State
--
BPM
1
2
3
8
6
5
4
7
