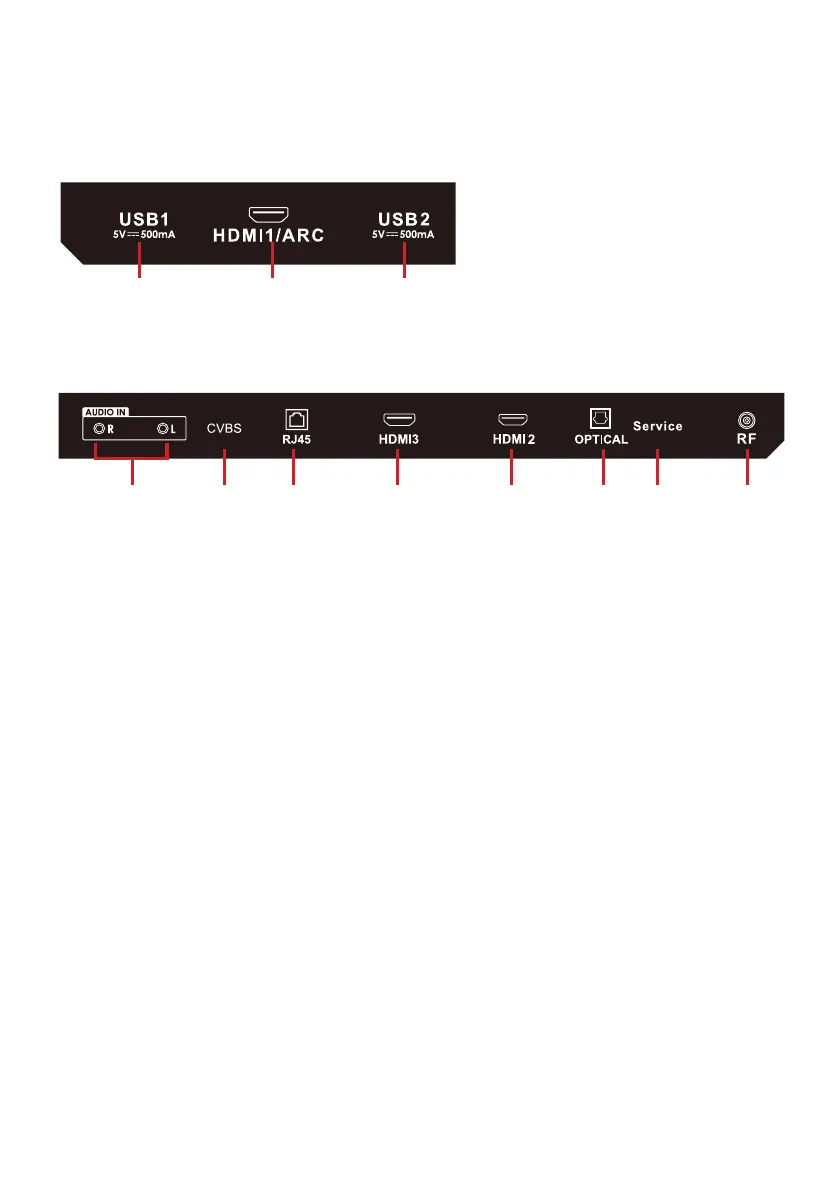

CONTROLS AND CONNECTIONS (Cont.)
1. USB 1
2. HDMI 1 / ARC
3. USB 2
4. AUDIO R / L
5. CVBS
6. RJ45 (ETHERNET)
7. HDMI 3
8. HDMI 2
9. OPTICAL
10. SERVICE - SERVICE PORT USED FOR SERIAL DEBUGGING/ANALYSE PROBLEMS.
11. RF (ANTENNA)
SIDE OF TV
BOTTOM OF TV
USB connection
Insert a USB storage device into the USB port to record, playback of video/photo/music
1 2 2
5 6 7 8 9 10 114
