2. "SENSOR INFORMATION" setting items
Item Name Setting contents Setting range
Model
information
Model Model name registered in the MS-80S (cannot be
changed)
Serial number Serial number registered to the MS-80S (cannot be
changed)
MFG. date Date of manufacturing (cannot be changed )
Firmware version Firmware version of MS-80S (cannot be changed)
Hardware version Hardware version of MS-80S (cannot be changed)
Calibration
Calibration date Calibration date and time: Registered at the time of
calibration by the manufacturer, but can also be
registered by the user.
Sensitivity
[µV/W/m
2
]
Sensitivity constant: Registered at the time of
manufacturer calibration, but can also be registered at
the user side.
3. "OUTPUT" setting items
Item Name Setting contents Setting range
Analog
output
Enable analog
output
Analog output OFF/ON (selected with the radio
button)
Either 4-20mA or 0-1V power can be selected.
* Default is 4-20mA.
4-20mA Current(mA)/Irradiance(W/m
2
): Setting of minimum
and maximum irradiance (W/m
2
) corresponding to the
output.
0-1V Voltage(V)/Irradiance(W/m
2
): Setting of minimum and
maximum irradiance (W/m
2
) corresponding to the
output.
Resistance (ohm) Load resistor value for calculating output current at 0-
1V output

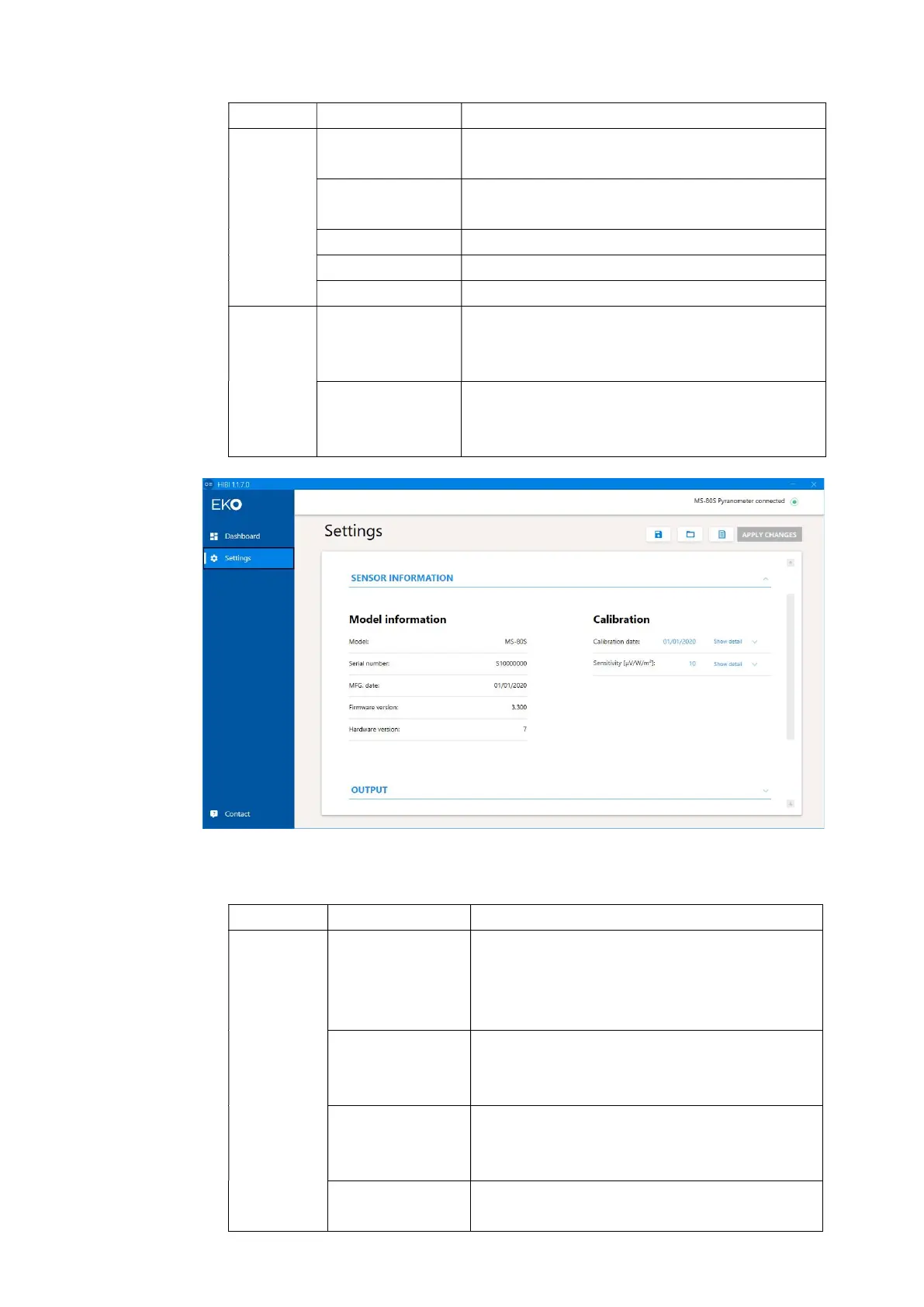

Figure A3-15. Sensor information settings
