EKO INSTRUMENTS CO., LTD. - Pyranometer MS-80/80S/80U - Instruction Manual Ver. 1
Pg. 53
6. DATA FILES setting items
【Measurements】
<Save file to> Enter the name of the measurement data storage folder.
【Sensor settings】
<Save file to> Enter the name of the setting file storage folder.
6) Measurement (Dashboard)
【Overview】
・ Measurement data of irradiance, temperature, humidity, and tilt angle are read from MS-80S every 1
second and displayed.
<Irradiance> Irradiance measurement data (Unit: W/m
2
)
<Temperature> Internal temperature measurement data.
Unit: selected from °C (Celsius)”, “°F (Fahrenheit)” or “K (Kelvin)”. (°C: default)
<Humidity> Humidity measurement data (Unit: "%RH"), (30% is the threshold value)
<Tilt Angle> Tilt (X axis angle) and Roll (Y axis angle) data

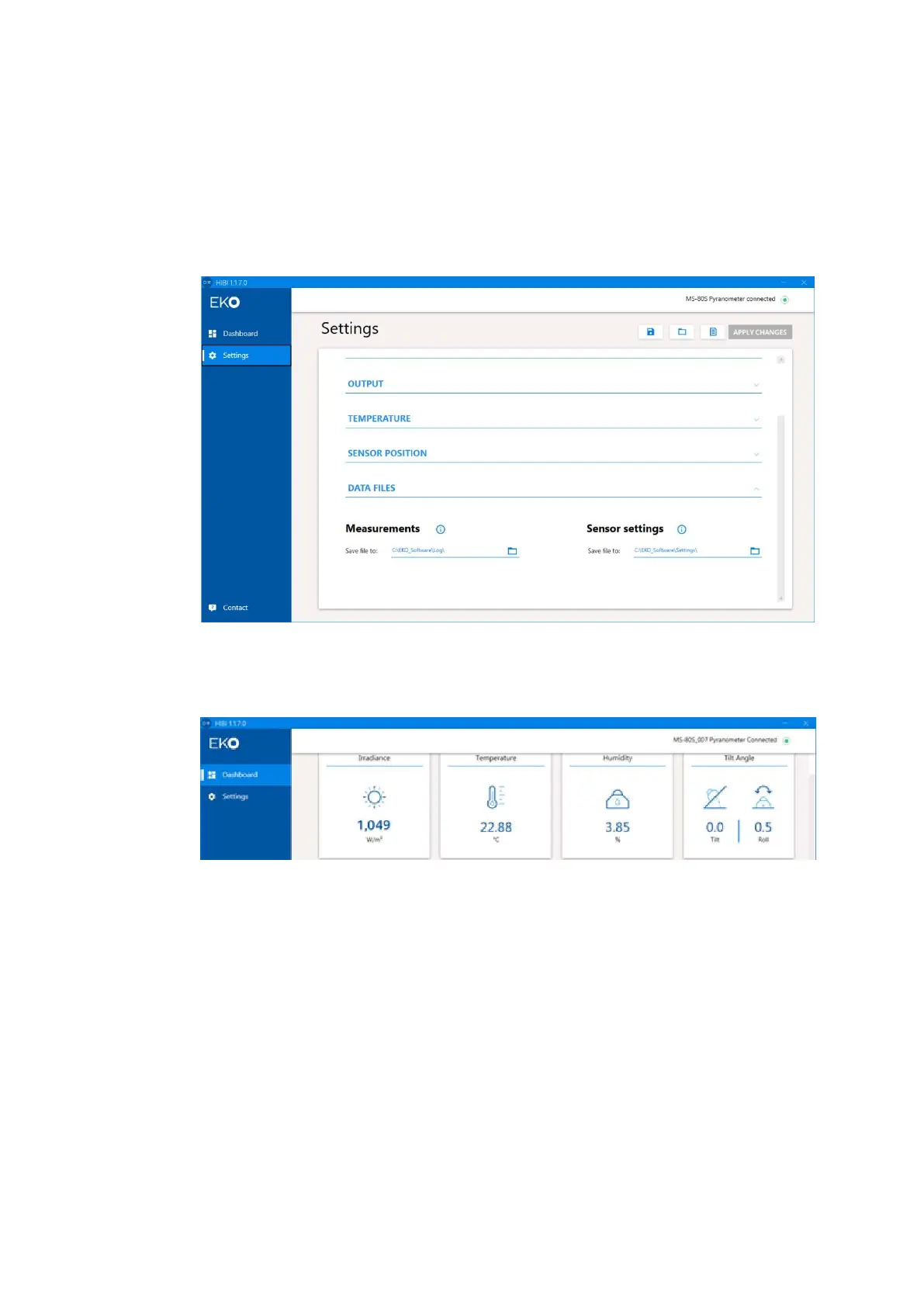

Figure A3-19. Data Files setting
Figure A3-20. Dashboard screen
