DK50-10
NP-DK50-10-16_01-2022-MD - 24 - 01/2022
Fig. 6

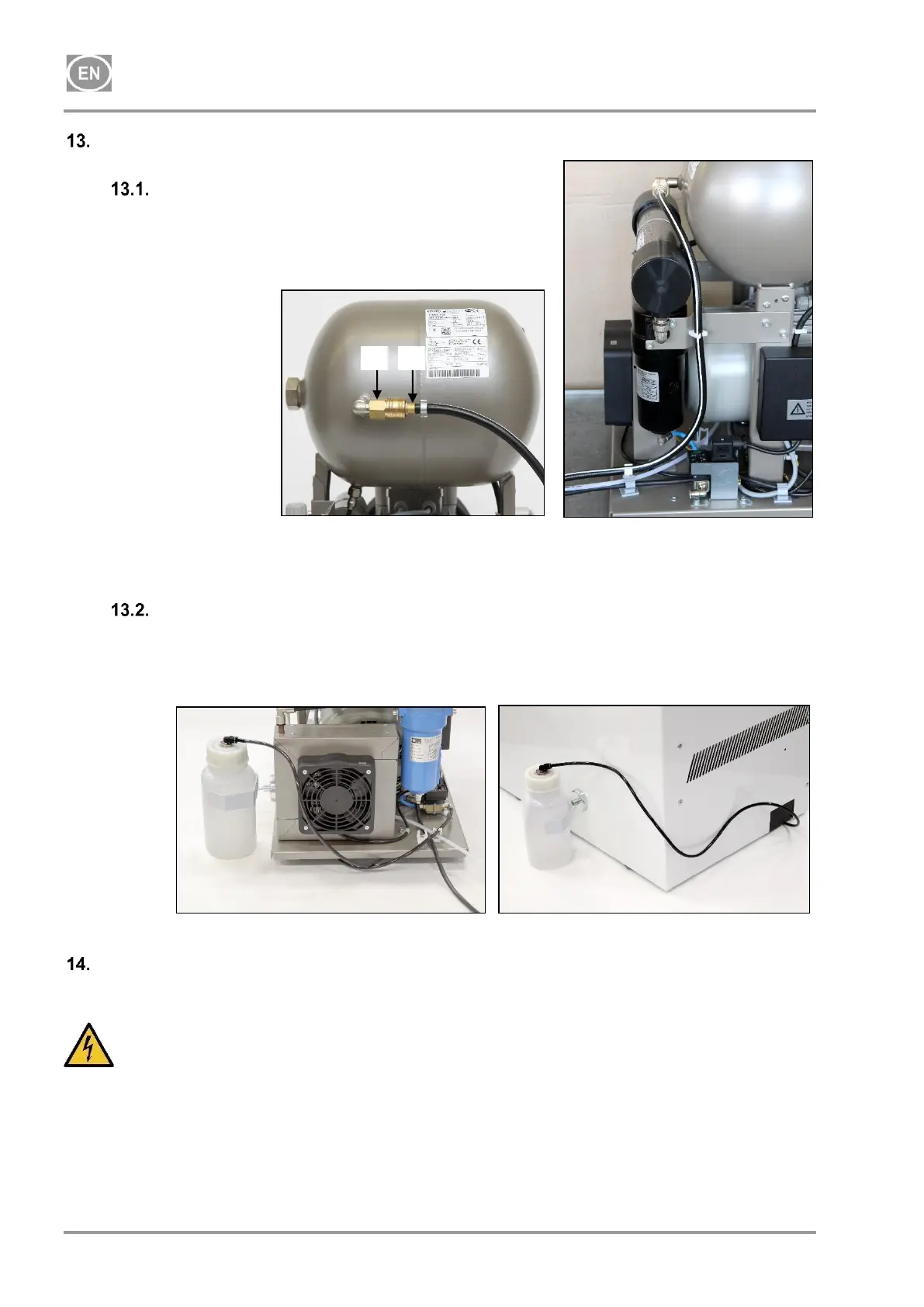

PNEUMATIC CONNECTIONS
Connecting to the compressed air outlet (Fig. 6)
Connect a pressure hose terminated at one end with a sliding
quick connector (1) to the compressed air outlet (2) on the
compressor and connect the hose to the compressed air
system or directly to the device, in this case dental device.
Route the pressure hose through the opening in the rear wall of the cabinet for cabinet-mounted
compressors. (Fig. 7)
Connecting the condensate vessel (Fig.7)
 Connect the drain hose to the condensate vessel on compressors with dryers.
 Route the hose through the opening in the rear wall of the cabinet for compressor models with a
dryer and connect it to the vessel.
ELECTRICAL CONNECTIONS
The product is equipped with a grounded plug.
Ensure full compliance with all local electrical codes. The mains voltage and
frequency must comply with the data stated on the device's label.
 Keep the socket easily accessible to ensure that in an emergency the device can be safely
disconnected from the mains.
 Connection to the power distribution cabinet must be max.16 A.
2
1
Fig. 7
