DK50-10
01/2022 - 59 - NP-DK50-10-16_01-2022-MD

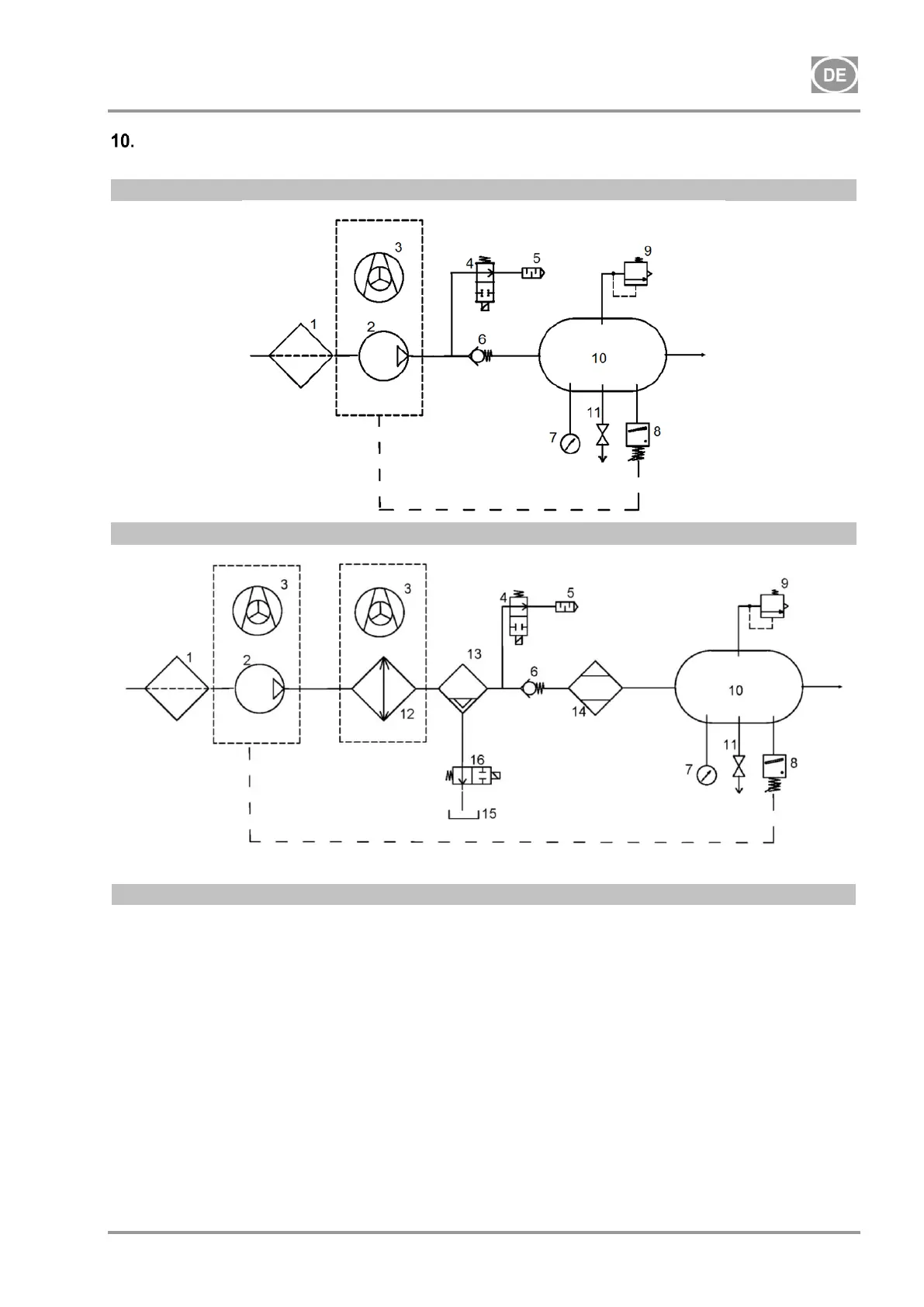

DRUCKLUFTPLAN
DK50-10Z, DK50-10S
DK50-10Z/M, DK50-10S/M
Legende für Druckluftplan
1 Ansaugfilter
2 Kompressor
3 Lüfter
4 Ablassventil
5 Schalldämpfer
6 Rückschlagventil
7 Manometer
8 Druckschalter
9 Sicherheitsventil
10 Luftbehälter
11 Ablassventil
12 Kühler
13 Koaleszenzfilter
14 Membrantrockner
15 Kondensatauffangbehälter
16 Kondensatablassmagnetventil
