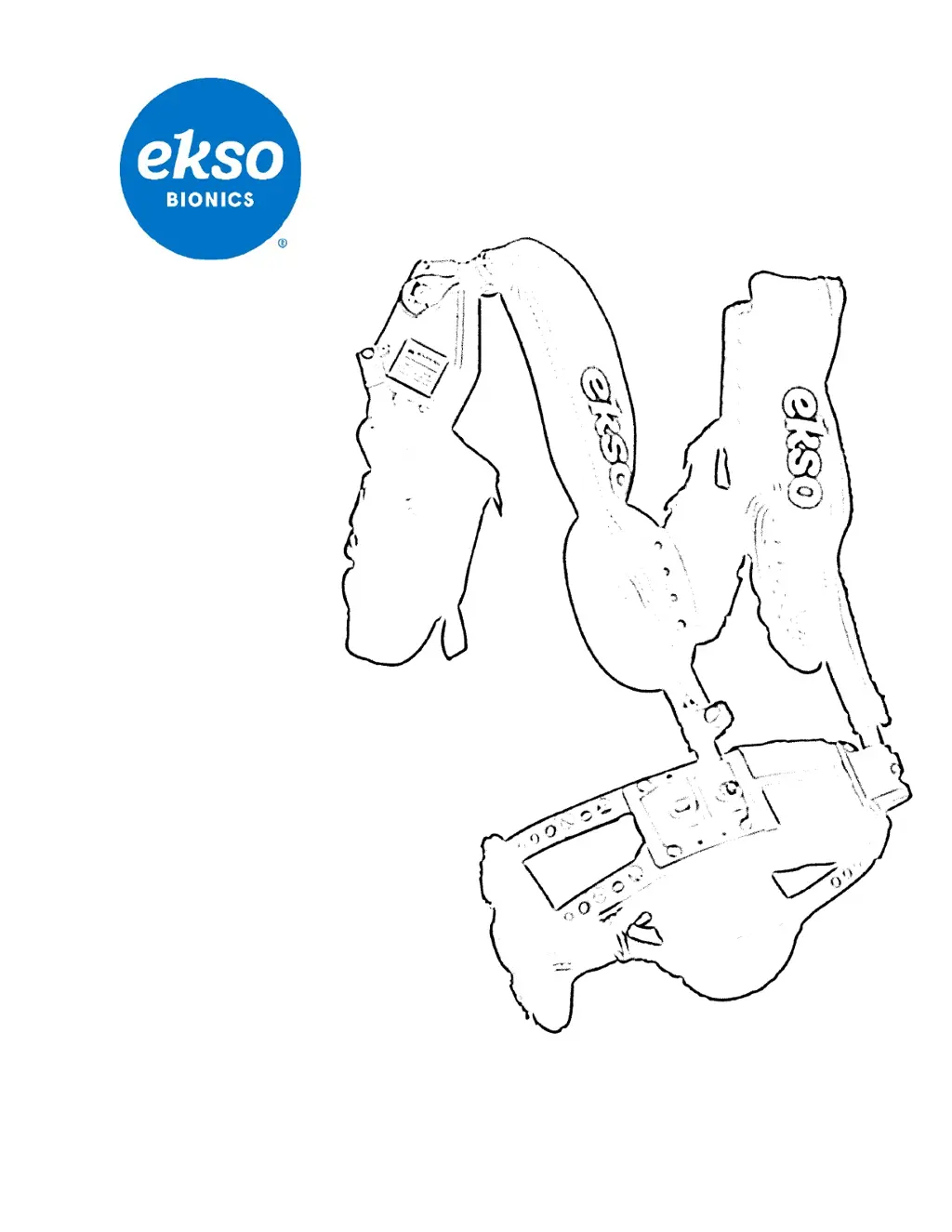

Ekso Bionics EVO Exoskeleton

Questions and Answers

P
Patricia GarciaAug 5, 2025
What to do if soft goods are damaged on Ekso Bionics EVO Exoskeleton Industrial Equipment?
- R
  Robert OnealAug 5, 2025
  If you notice any wear or damage to the soft goods (arm cuffs, torso pads, hip pads, and lumbar pad) of your Ekso Bionics Industrial Equipment, such as visible damage, discoloration, deterioration, tearing, fraying, unevenness, or loose threads, or if snaps, straps, and buckles are not working properly, stop using the equipment immediately and contact Ekso Bionics for replacements.
D
Donald PadillaAug 13, 2025
How to clean soft goods on Ekso Bionics Industrial Equipment?
- O
  owrightAug 13, 2025
  To clean dirty or sweaty soft goods on your Ekso Bionics Industrial Equipment, wash them in a washing machine using laundry detergent and cold water. Tumble dry on a low-heat cycle. Make sure all Velcro straps are secured before washing. It is recommended to wash and dry the items in a mesh bag.
E
Eric WalkerAug 21, 2025
What to do if actuator springs are loose on Ekso Bionics Industrial Equipment?
- L
  laurenarcherAug 21, 2025
  If the actuator springs on your Ekso Bionics Industrial Equipment are loose, hand tighten both springs until they are securely seated in the actuator base. Important: Do not use tools to tighten or loosen the actuator springs.
C
Charles HoustonAug 28, 2025
Why actuator spring does not thread in smoothly on Ekso Bionics Industrial Equipment?
- D
  Dawn WebbAug 28, 2025
  If the actuator spring does not thread in smoothly on your Ekso Bionics Industrial Equipment, inspect the actuator spring threads. If they are dirty or dusty, clean them with a cloth or compressed air before inserting the spring into the actuator assembly.

Summary

Introduction

Stacked Link Structure

EVO's patented stacked-link structure follows the user's arm for full range of motion and proper joint alignment.

Independent Load Path

Decoupled shoulder support structures allow full torso and waist flexibility, with free airflow in the back.

Minimized Body Contact

EVO contacts the user's body only where essential, ensuring comfort and cooler wear, especially in hot environments.

Adjustable High Force Actuator

Actuators are durable and feature adjustable assistance levels via compact gas springs, customizable per arm.

Light Weight, No Compromises

Achieves light weight without sacrificing functionality, balancing device weight, function, assistance, and durability.

Compact Storage

Includes a durable 26" tool bag-style case for easy storage, shipping, and transport, with interior pockets.

Components and What Is Included

Component Identification

Identifies the mechanical and hardware components of the EVO exoskeleton through diagrams and a detailed list.

EVO Sizing and Fit Adjustments

Measurement and Fitting Information

Provides essential measurements like belt size, arm cuff size, and torso tube size for initial EVO configuration.

Operator Measurements for Fit

Details how to measure belt size, arm cuff circumference, and torso tube length for a proper EVO fit.

Fit Guide Tables

Provides tables correlating hip-to-hip distance, arm cuff circumference, and torso length to EVO sizing.

Donning and Doffing the EVO

Donning the EVO

Step-by-step instructions for putting on the EVO exoskeleton, including belt and arm cuff adjustments.

Doffing the EVO

Procedure for removing the EVO exoskeleton, including disengaging the hip belt and arm cuffs.

Turning EVO On and Off

Turning EVO On

Instructions on how to activate the actuator spring support by moving the ON/OFF switch to the ON position.

Turning EVO Off

Instructions on how to deactivate the actuator spring support by moving the ON/OFF switch to the OFF position.

Installing and Changing Actuator Springs

Actuator Spring Support Levels

Details the three (3) sets of actuator spring levels and their corresponding lift assist support amounts.

Installing Actuator Springs

Step-by-step guide for changing actuator springs while the EVO is not being worn.

Adjusting the Activation Zone

Activation Zone Settings Overview

Explains the three settings (Low, Standard, High) for the activation zone and their typical use cases.

Procedure for Adjusting Activation Zone

Details the steps to adjust the activation zone dial using a T25 driver, ensuring proper alignment and setting.

Fit Adjustments and Troubleshooting

Fit Adjustment Troubleshooting

Addresses common fit issues like pressure, tugging, or cuff slippage, providing solutions for each.

Alignment Note for Optimal Fit

Ensures actuator tops are slightly higher than user's shoulders for proper alignment, adjusting torso lengths as needed.

Maintenance and Troubleshooting

Soft Goods Maintenance

Instructions for washing soft goods, including securing straps and using a mesh bag for washing and drying.

Actuator Spring Maintenance

Guidance on hand-tightening actuator springs and inspecting/cleaning spring threads before insertion.

Soft Goods Damage Inspection

Procedure for examining soft goods for wear or damage, and contacting Ekso Bionics for replacements if needed.

Components and Accessories

EVO Kit Contents

Lists all items included with every EVO, detailing quantities, part numbers, and their inclusion in the EVO Kit.
