ekwb EK-XRES SPC Series User Manual

- 4 -
STEP 1
Install the EK-SPC Series pump on to the pump main motor housing.
Make sure you re-use the original O-ring gasket! Reseat the
gasket if needed.
You can rotate the XRES SPC in and use it in any direction (90° step turns).
STEP 2
Secure the XRES SPC using enclosed custom M4-M4 SPC Screw
using enclosed 2mm Allen key. Do not over tighten the screws as
excessive force may strip the threading or allen key seat.
EK-XRES 140 / 250 SPC
PWM Classic RGB (pump
main motor housing)
Original SPC sealing
gasket (OR)
SPC pump body
with motor
M4-M4 SPC Screw
Vibration damper
Screw M4x4 DIN7984

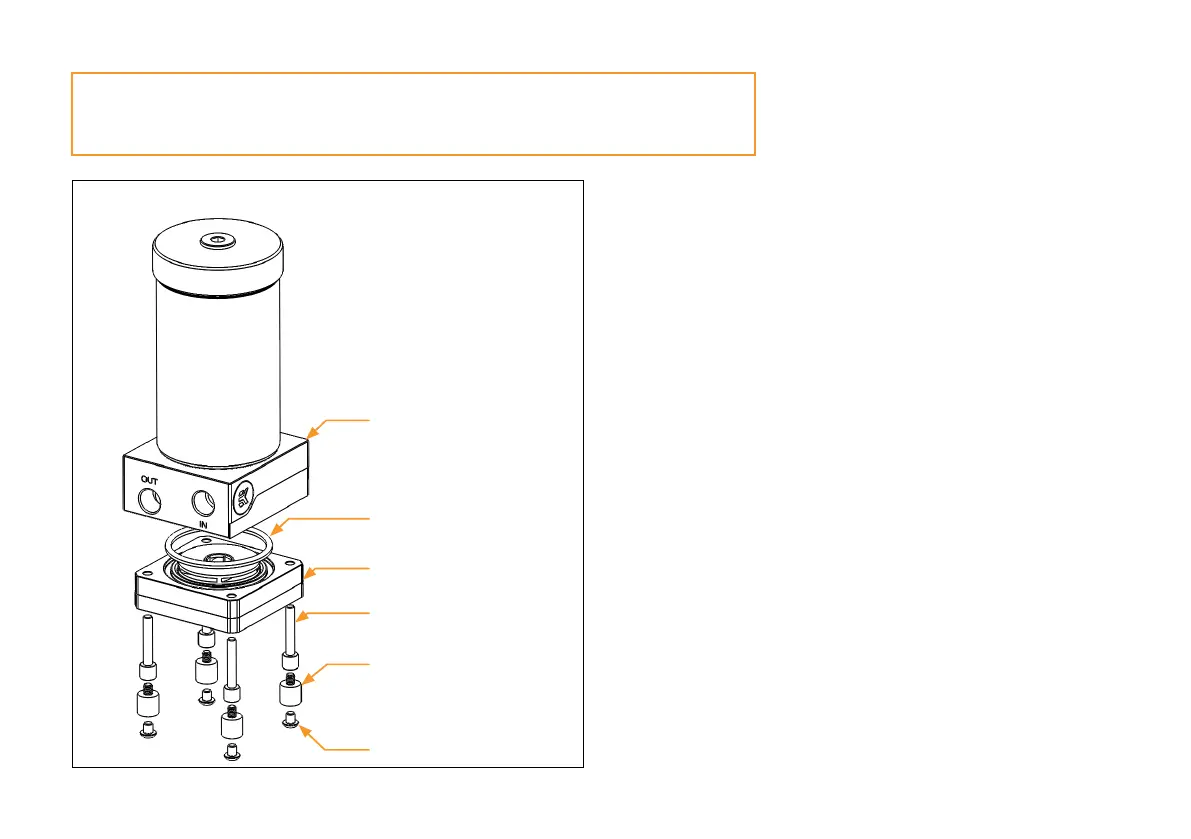

ASSEMBLING EK-XRES SPC SERIES PUMP-
RESERVOIR COMBO UNIT (already done by EK)
