ekwb EK-XRES SPC Series User Manual

- 5 -

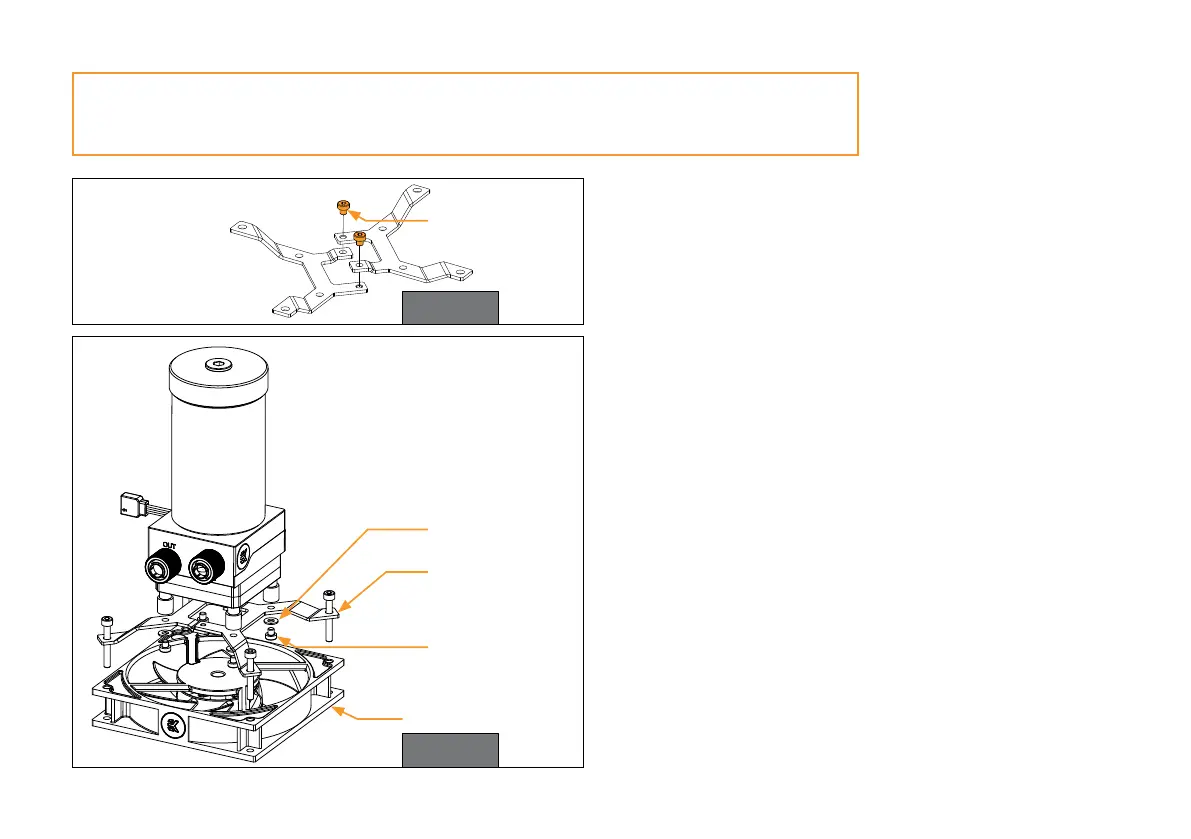

INSTALLING THE ASSEMBLY USING ENCLOSED
BRACKET (Bracket - XRES Classic Spider - OPTION 1)
If you have an option to mount the assembly on 120mm fan or
120mm FAN mounting holes, EKWB recommends enclosed spider
mount - Bracket – XRES Classic Spider.
STEP 1
Use enclosed M4 x 4 mm screws to screw two brackets together as
shown on the picture.
STEP 2
Screws for mounting the Bracket – XRES Classic Spider on the
120mm FAN mounting holes:
Option 1: use self-tapping screws normally supplied with fan to
screw the holder directly on the fan
Option 2: use 30mm long screw supplied with radiator delivery to
screw the holder on the radiator through the 120mm fan
Option 3: use 5mm long screw normally supplied with radiator
delivery to screw the holder directly on the radiator
Option 4: use M4 × 6mm screw with M4 nuts and washers (supplied
with the Spider Holder delivery) and mount the holder on the 120mm
FAN mounting holes on the chassis
EK-XRES 140 SPC PWM
Classic RGB assembly
M4 × 4mm
DIN7984 screw
M4 PVC washer
Spider Holder
120 mm FAN
Bracket – XRES Classic Spider
assembly
M4 × 4mm screw
STEP 1
STEP 2
