ekwb EK-XRES SPC Series User Manual

- 7 -
EK-XRES 140 / 250 SPC PWM Classic RGB series reservoir pump combo
featured 2 (two) G1/4 threaded opening on the main body of which are
inlet and outlet (clearly marked with ‘OUT’). EKWB recommends using
EK-ACF fittings with the EK-XRES SPC series reservoir pump combo
units. If you use barbed fittings, please use hose clamps or an appropriate
substitute to secure tubing.
It is mandatory to use the correct INLET and OUTLET ports:
1. The OUTLET port (pressure port) is clearly marked with label
‘OUT’ engraved on the pump top housing.
2. The INLET port(s) (suction port) is clearly marked with ‘IN’ on the
EK-XRES SPC front face plane.
3. Make sure not to use fittings or barbs with G1/4 thread longer than
6 mm! All EK fittings are compatible! We advise appropriate allen
key for proper installation.
This water pump & EK-XRES SPC reservoir combo can be used in
vertical mounting configuration (position) only! Mounting the pump
upside down may result in pump running dry and eventually lead to
premature failure of the pump!

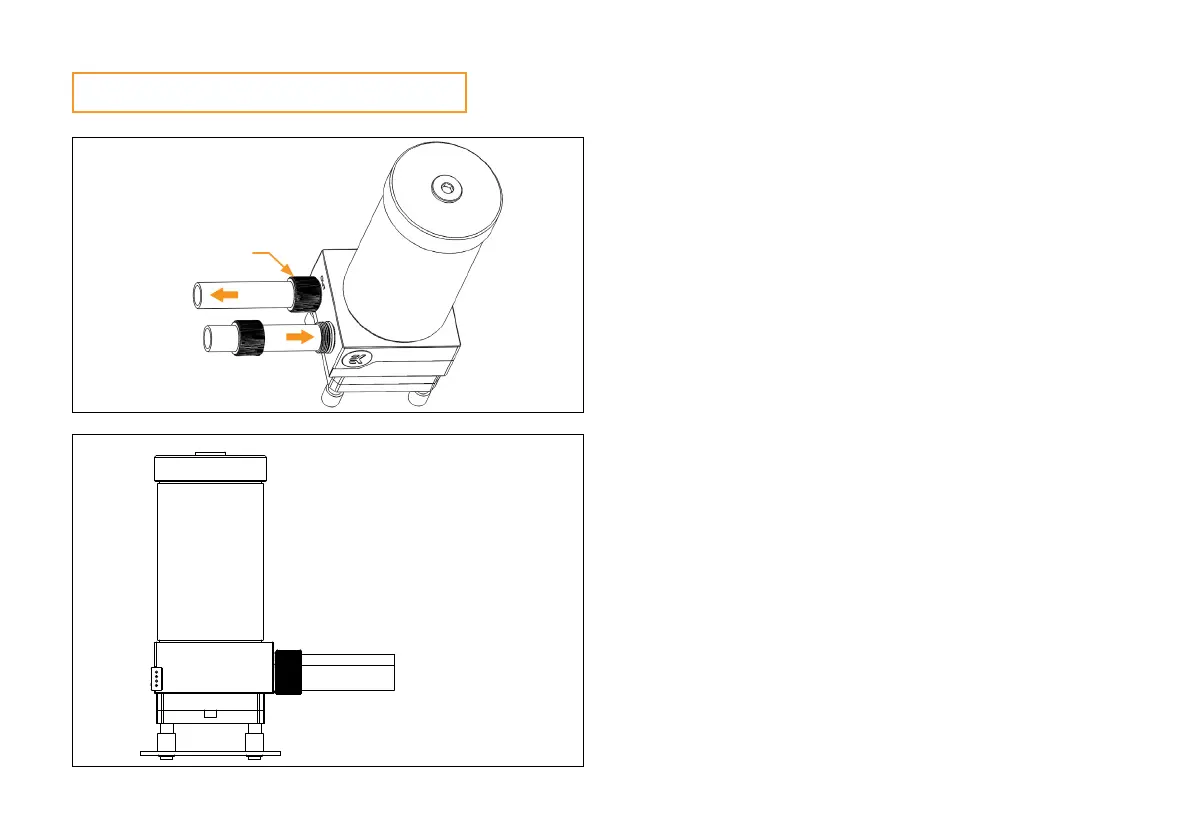

ATTACHING THE FITTINGS
Vertical mounting configuration
EK Fitting
