- 10 -

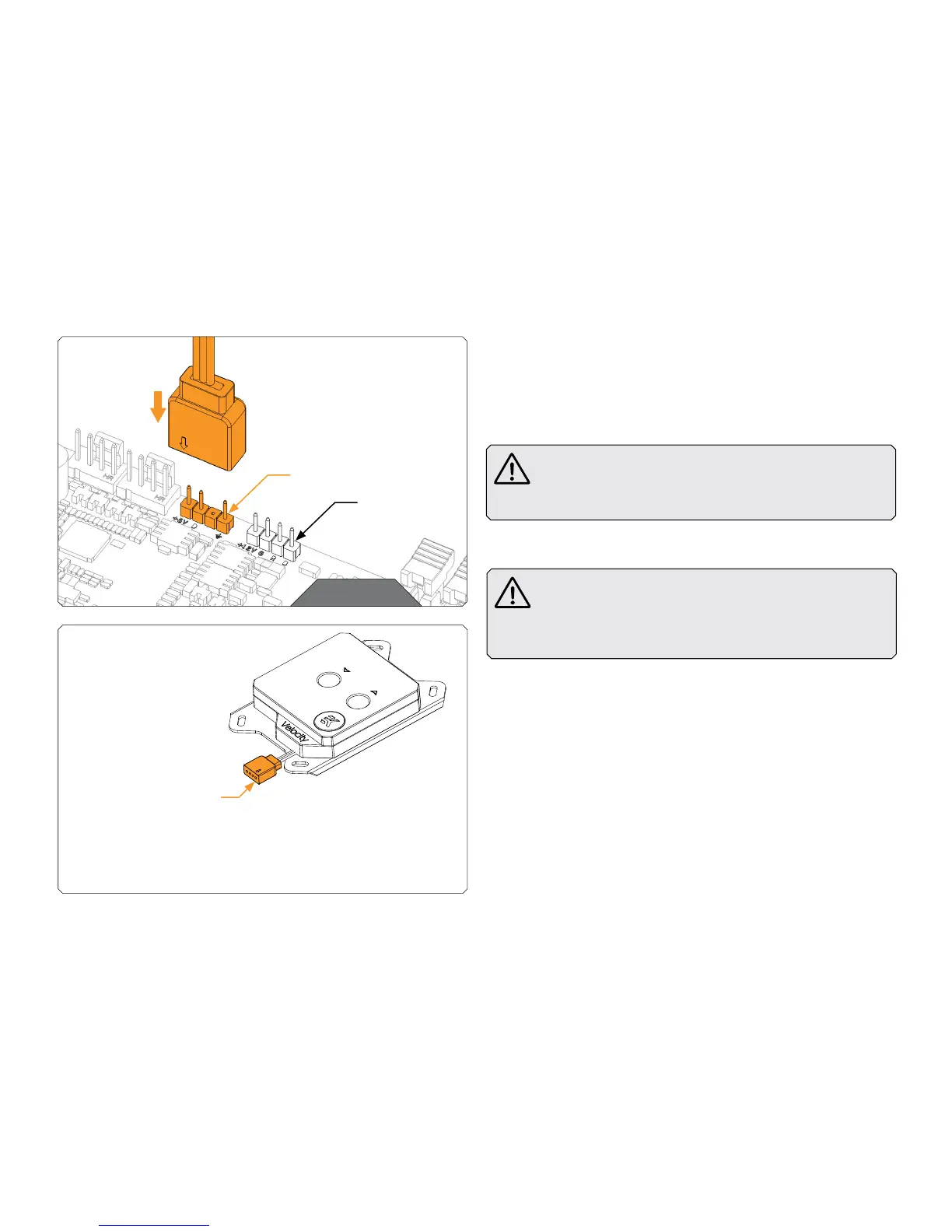

CONNECTING THE DRGB LED STRIP
STEP 1
Plug the 4-pin connector from Water block’s D-RGB LED light to the
DRGB HEADER on the motherboard. The LED will work if the pin
layout on the header is as follows: +5V, Digital, empty, Ground.
Please ensure that the arrow indicated on the connector is
plugged into the +5V line as indicated on your motherboard.
If you put LED Diode to the 12V RGB HEADER you can
damage the LEDs.
Failure to do so will damage your motherboard or LED strip.
Connector is the same on D-RGB and RGB versions,
but D-RGB version has 3 cables from connector to PCB;
RGB version has 4 cables. If you connect D-RGB led to
ordinary RGB header you can damage your motherboard
or LED strip.
D-RGB LED Connector
Connector is same on D-RGB and RGB version but
D-RGB version have 3 cables from connector to
Light. RGB version have 4 cables!!! If you connect
D-RGB led to ordinary RGB header you will damage
your motherboard or LED strip!!!!
STEP 1
D-RGB Header
RGB Header
To Next Page
