- 6 -

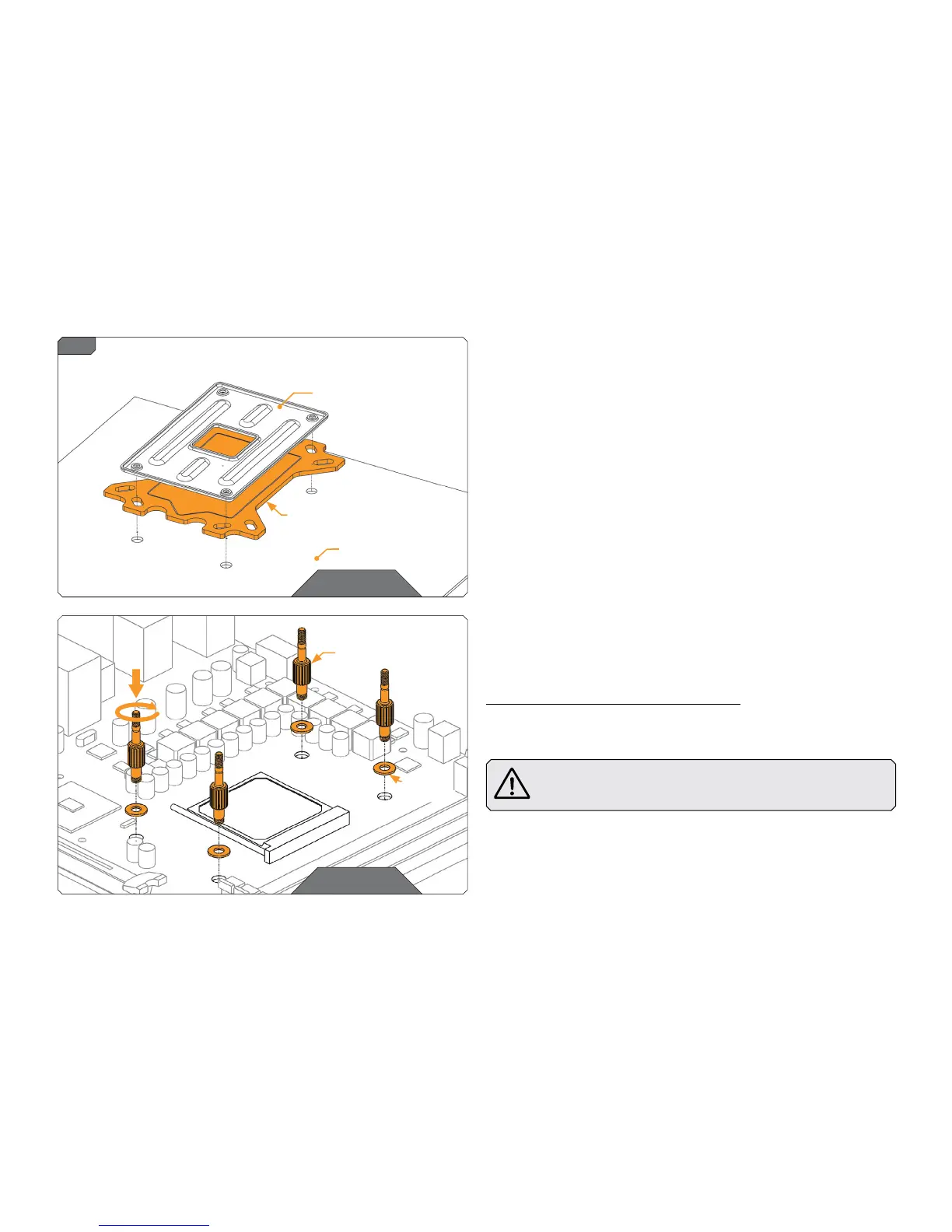

STEP 3
Install backplate rubber gasket and place metal backplate for AMD®
socket to the back of your motherboard RIBBED SIDE UP! (facing
away from the motherboard) Align the holes on the motherboard
with holes on rubber gasket and backplate.
Carefully rotate motherboard assembly with front side facing up
with one hand while holding the backplate and rubber in place with
the other hand.
AM4
Metal
Backplate
Rubber
gasket
Motherboard
STEP 3
STEP 4
Prepare the foil bag with mounting mechanism, which is enclosed
with the CPU water block delivery.
Install four (4) M3 thumb screws onto your motherboard. It is
mandatory to put 0.7mm plastic washer underneath each of the
M4 thumb screws. Tighten the screws to the metal backplate until
you reach the end of the thread. Using tools (such as pliers) is not
recommended.
Continue installation by following the instructions on
page 6 from STEP 2
M3 Thumb
Screw
PVC
washer
STEP 4
To Next Page
