STEP 7
Tighten the fitting barbs in clockwise direction until the gasket underneath
is compressed.
The installation of the CPU water block is now complete.
Before proceeding with the installation It is mandatory
to remove the protective foil from the backside of the
water block.
With EK-Velocity series water blocks it is mandatory to use the port that
is nearest to the center of the water block as INLET port. Mixing the ports
may result in less than ideal thermal performance of the water block.

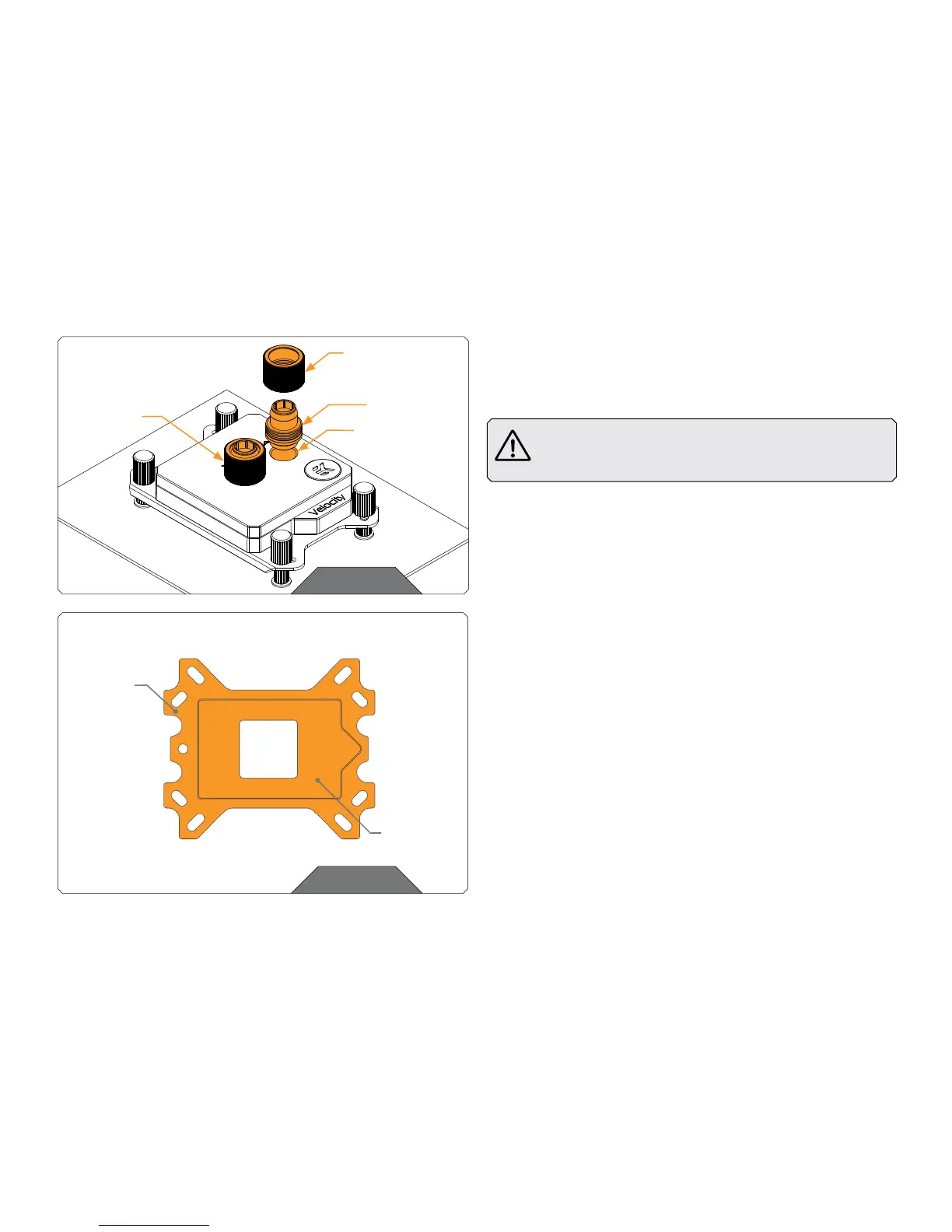

STEP 7
Fitting Ring
Fitting Barb
Inlet port
Outlet port
Outer part
Inner core
(removable)
STEP 8
To Next Page
