ELAC S8 - Connecting Your Subwoofer

ELAC S8 Subwoofer | www.elac.com | Page 5
Connecting your Subwoofer

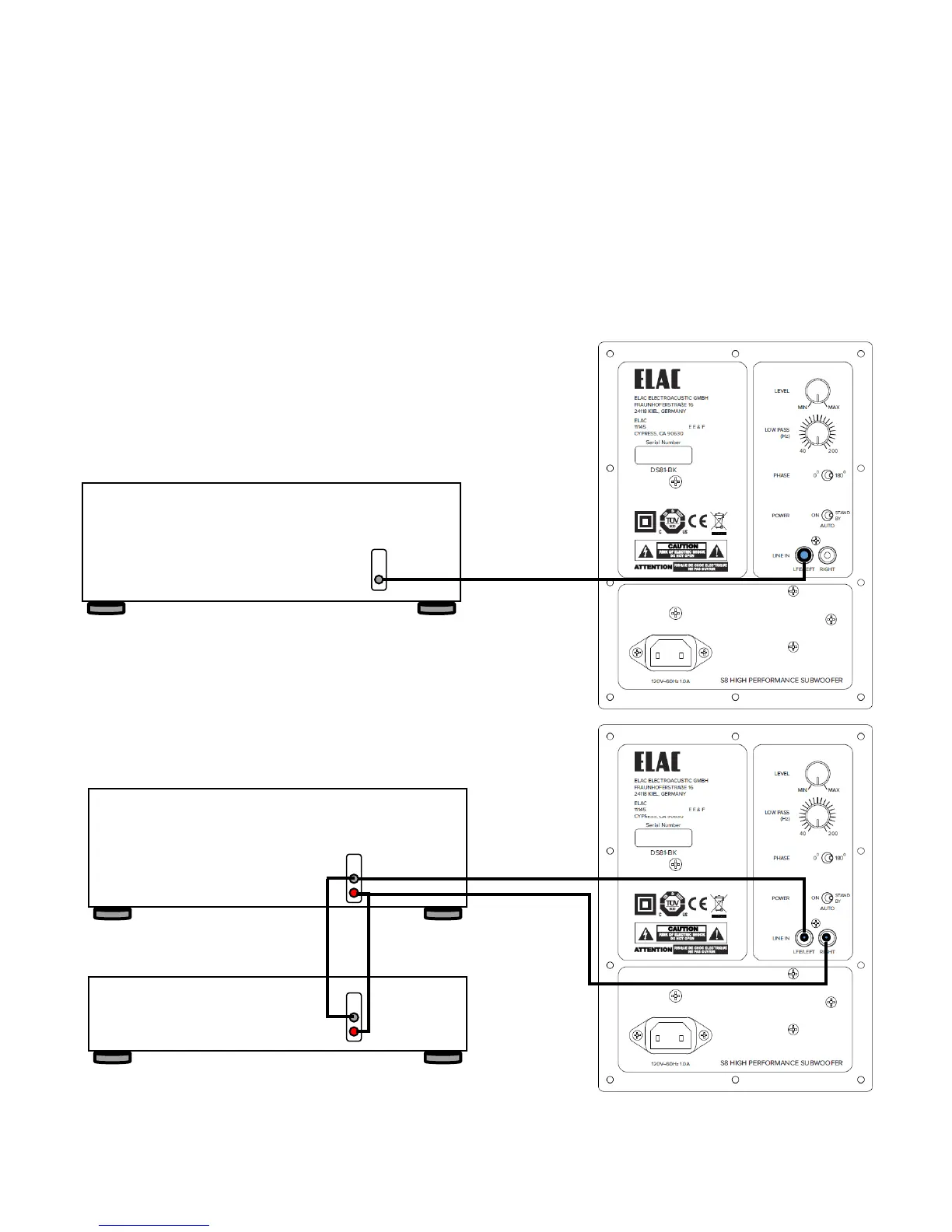

• If you are connecting the subwoofer to an AV Receiver or Pre-Amp with a dedicated subwoofer or LFE out-
put, connect an RCA cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp to the
Left/LFE RCA input on the subwoofer (Fig 1).
• If you are connecting the subwoofer to a stereo pre-amp or AV Receiver without a dedicated LFE/Subwoofer
output, connect a set of stereo RCA connectors to the left and right RCA inputs on the subwoofer. If you are
using a pre-amp with only one set of pre-outs, use a splitter for each output on the pre-amp and connect two
sets of stereo RCA cables to both the amplifier and to the subwoofer (Fig 2).
SUB
OU T
PRE
OUT
Fig 2
A MP
IN
AV Receiver
Fig 1
Fig 2
Pre-Amp/AV Receiver
Amplifier
