Connecting your Subwoofer

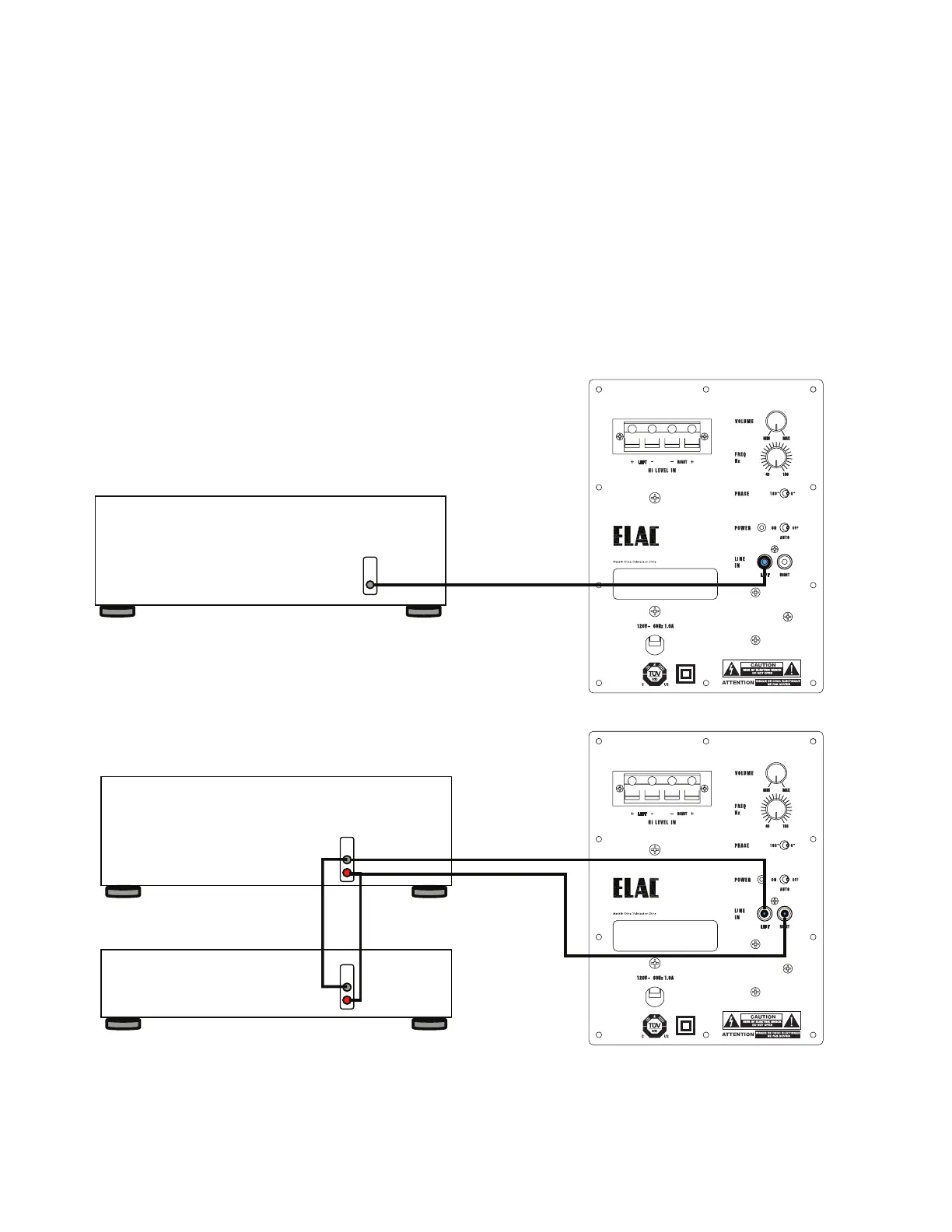

• If you are connecting the subwoofer to an AV Receiver or Pre-Amp with a dedicated subwoofer or LFE out-
put, connect an RCA cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp to the
Left RCA input on the subwoofer (Fig 1).
• If you are connecting the subwoofer to a stereo pre-amp or AV Receiver without a dedicated LFE/Subwoofer
output, connect a set of stereo RCA connectors to the left and right RCA inputs on the subwoofer. If you are
using a pre-amp with only one set of pre-outs, use a splitter for each output on the pre-amp and connect two
sets of stereo RCA cables to both the amplifier and to the subwoofer (Fig 2).
AV RE CE IV ER
SUB
OU T
Pre-Amp/AV Re ceiver
PRE
OU T
Amplifier
Fig 1
Fig 2
AMP
IN
SUB1010-BK
SUB1010-BK
Fig.1
Fig.2
