Connecting your Subwoofer
The SUB3070 Can be connected to your home audio system using one of the three below options.

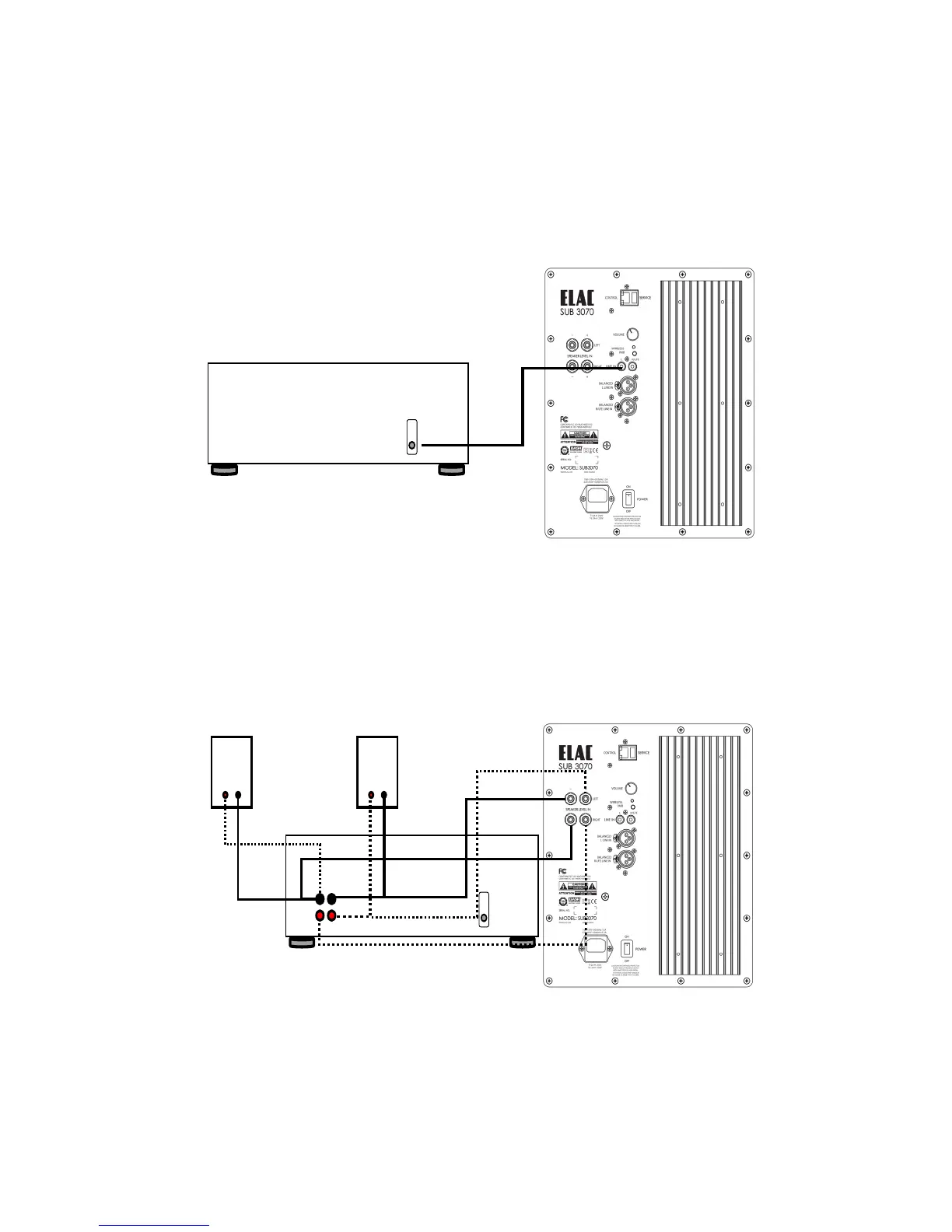

Option 1: Connect the subwoofer to an AV Receiver or Pre-Amp with a dedicated subwoofer or LFE output using
an RCA or XLR cable (not supplied) from the LFE/Subwoofer output on the AV Receiver/Pre-Amp to the LFE IN
on the subwoofer (Fig 1).
Option 2: Connect the Left and Right Speaker Outputs of your Amplifier/Integrated Amplifier/Receiver to the
speaker level inputs on the SUB3070. You will also connect the same speaker level outputs on your Amplifier to
the speakers as shown in Fig 2
Option 3: Use the optional wireless transmitter (Sold Separately). Please follow the instructions included with the
wireless transmitter.
