Impression 444 – Owner's manual
35

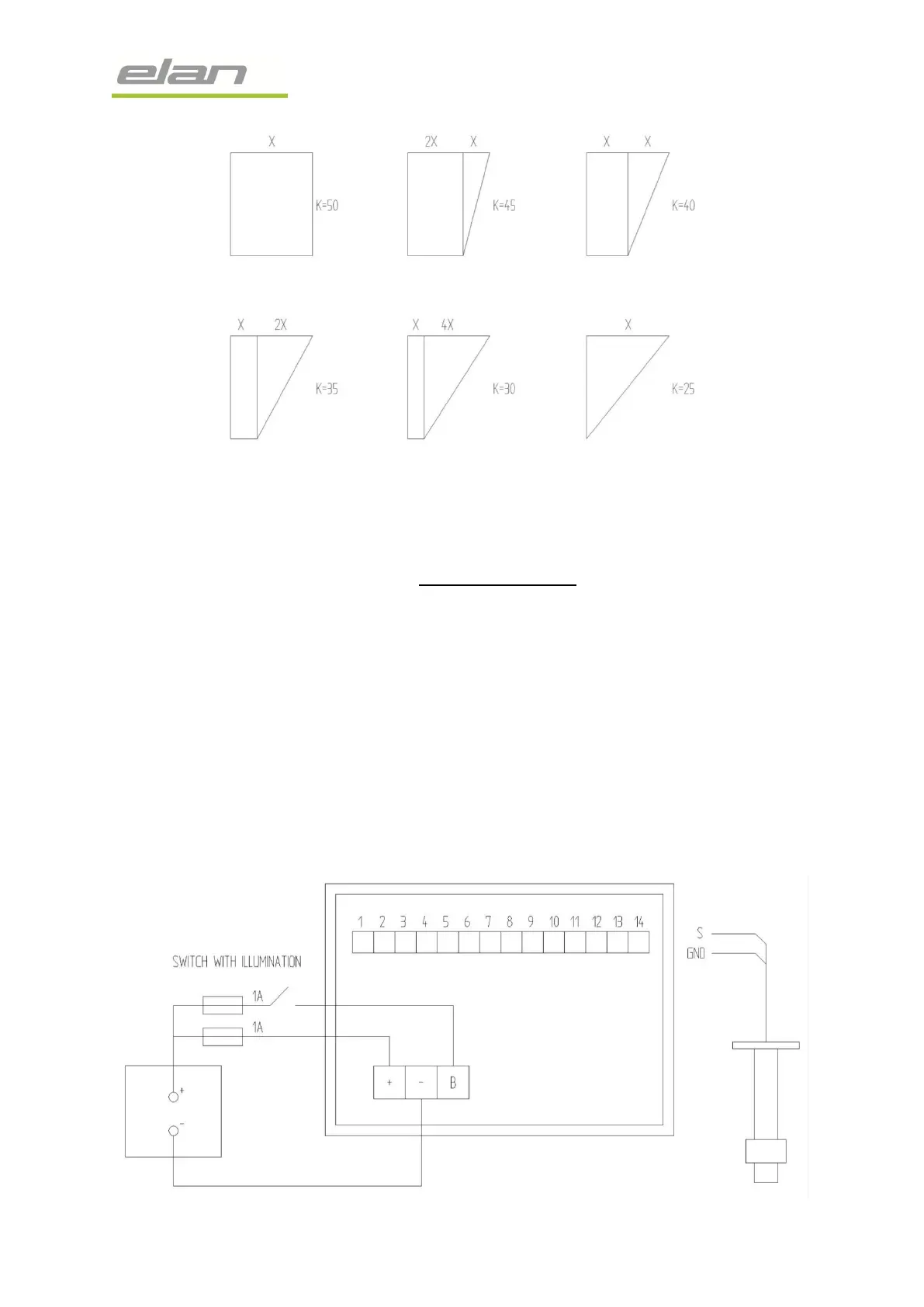

If the size i.e. perpendicularity is very much changed, it can be attained via the formula. The
formula to calculate the compensation value is the contents of the tank (when it is half full)
divided by the entire content and multiplied by 100.
Example:
Entire volume of the tank is 150 liters, with total height of the tank of 50cm. When half full
(height of the content in tank is 25cm) the volume of the tank is 65 liters.
If we insert these values into the formula, the following compensation value is calculated:
K = 65L/150L*100=43. This value is entered into the settings.
Instrument connection:
The monitor screen connection is shown in the scheme below, the thickness of the
conductor is 1,5mm and it is connected directly to the battery.
