22 SNIPER 2R™ User Manual ver 3
CLAMP MOUNTING
The SNIPER 2R
™
includes an adjustable mounting yoke that attaches to both sides of
the fixture. When mounting this fixture to truss be sure to secure an appropriately
rated clamp to the mounting yoke using a M10 screw fitted through the center hole
of the mounting yoke. Be sure to attach a Safety Cable to the fixture using the safety
cable rigging point on the back panel.
SECURING
Regardless of the rigging option you choose for your SNIPER 2R
™
always be sure to

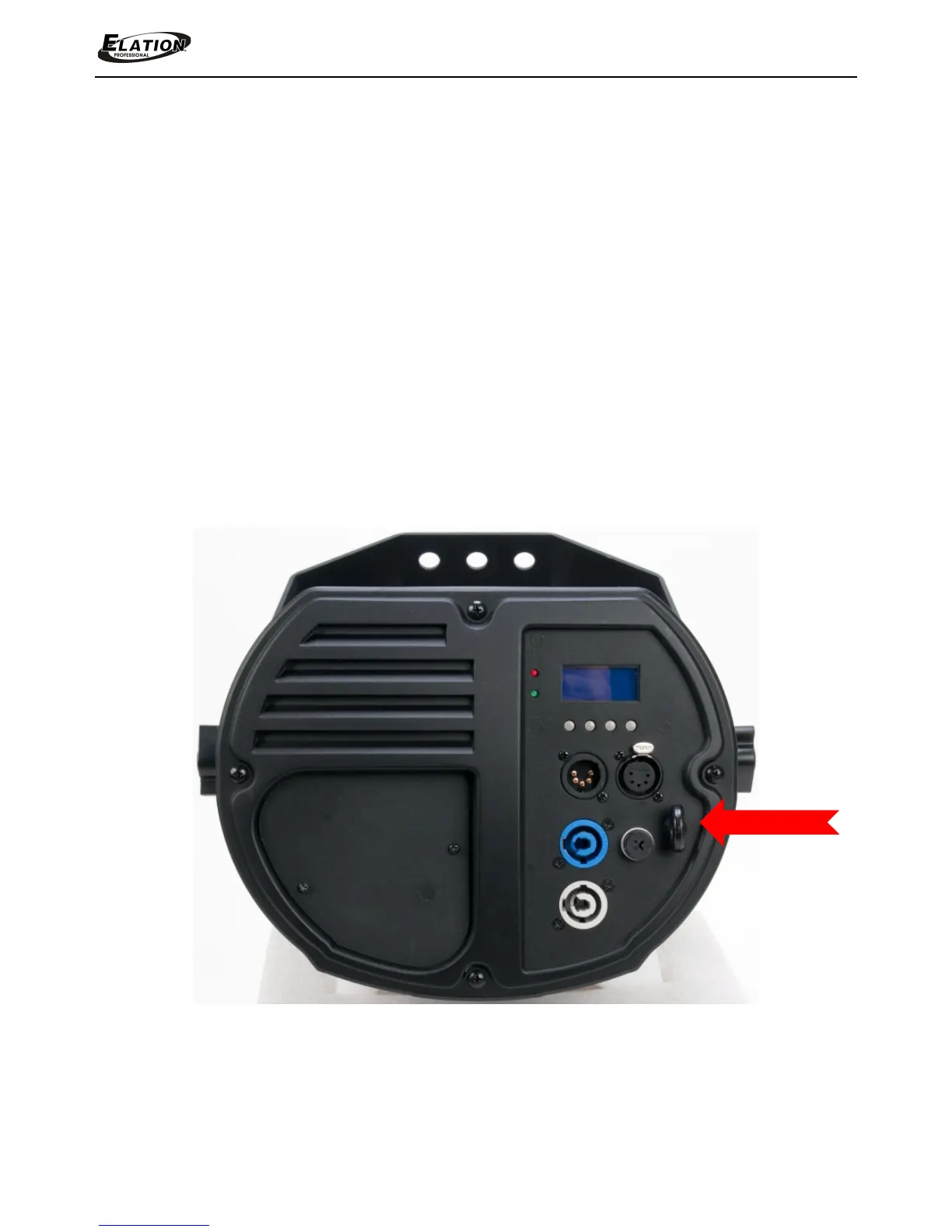

secure your fixture with a safety cable. The fixture provides a built-in rigging point for
a safety cable on the back of the fixture as illustrated below. Be sure to only use the
designated rigging point for the safety cable.
