25 SNIPER 2R™ User Manual ver 3
5pin XLR DMX CONNECTORS
Some manufactures use 5pin XLR connectors for DATA transmission in place of 3pin.
5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting
standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these

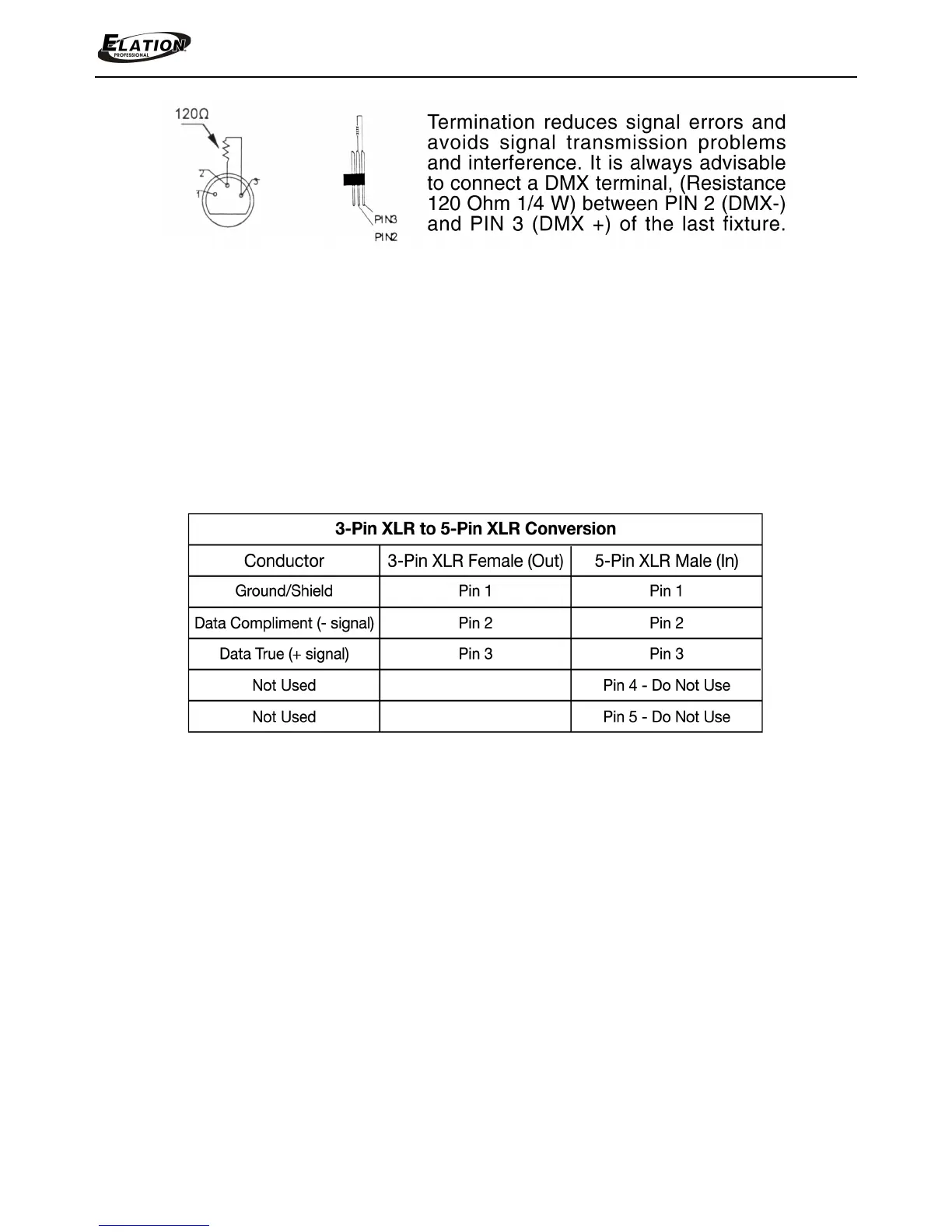

adaptors are readily available at most electric stores. The following chart details a
proper cable conversion.
