30
GAS CONNECTION

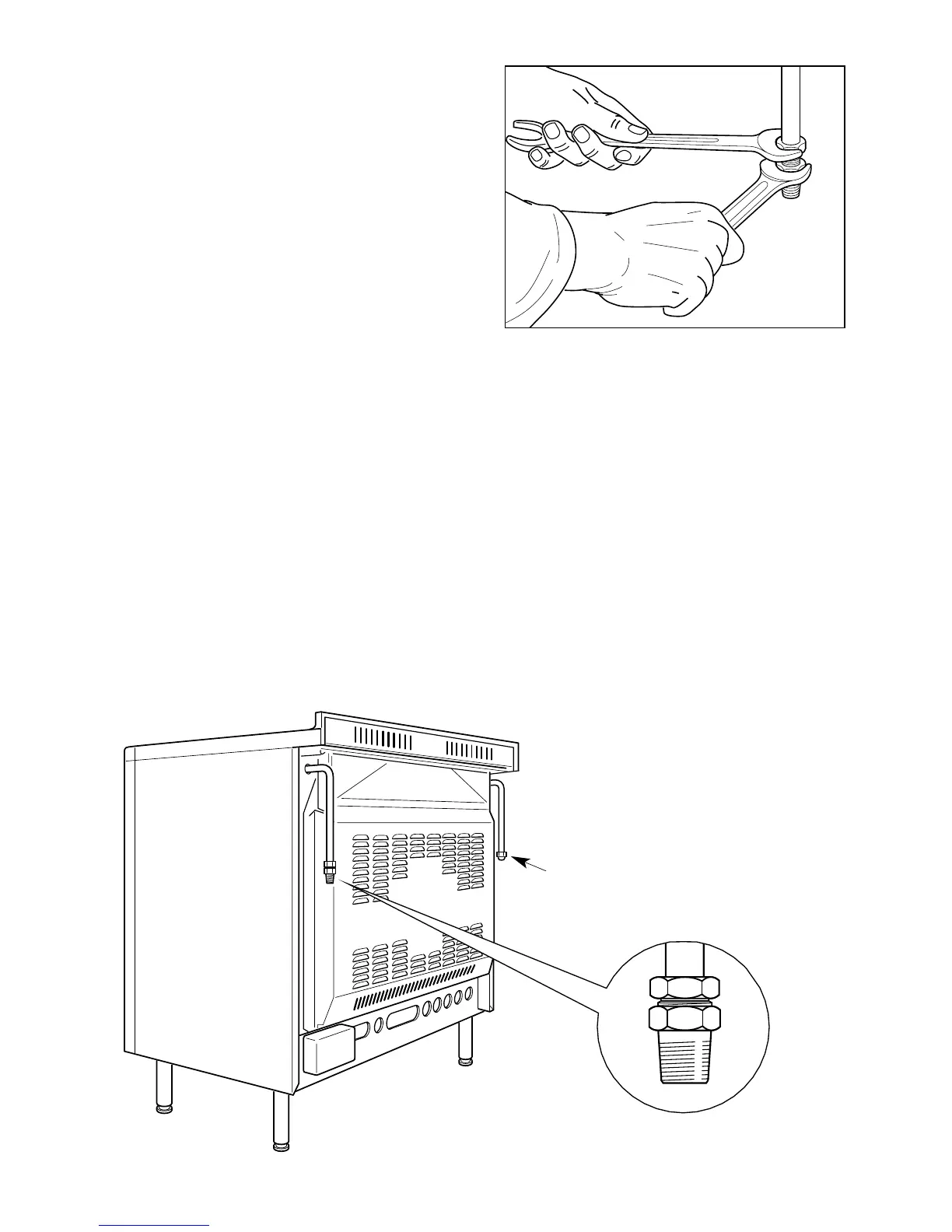

The gas supply must be connected to
the gas inlet which is located at the left
or the right hand rear of the appliance
(fig. 9.1).
The pipe does not cross the cooker.
When screwing the connecting tube
operate with two spanners (fig. 9.2).
The unused end inlet pipe must be
closed with the plug, interposing the
gasket.
After connecting to the mains, check
that the coupling are correctly sealed,
using soapy solution, but never a
flame.
Fig. 9.2
Plug
Fig. 9.1
