Elba PXDO 906 DF - ELECTRICAL FEEDER CABLE CONNECTION; FEEDER CABLE TYPE AND CONNECTION

35
Before effecting any intervention on
the electrical parts of the appliance,
the connection to the network must
be interrupted.
ELECTRICAL FEEDER CABLE
CONNECTION
To connect the supply cable:
- Remove the screws securing the
cover “A” on the rear of the cooker
(fig. 10.1).
- Feed the supply cable through the
cable clamp “D”. The supply cable
must be of a suitable size for the
current requirements of the appliance;
see the section “Feeder cable section”
(fig. 10.1).
- Connect the wires to the terminal
block “B” as shown in the diagram in
figure 10.2; or connect the phase
wires to the terminal block “B” and the
earth wire to the terminal PE as
shown in figure 10.1.
- Take up any slack in the cable and
secure with the cable clamp “D”.
- Replace the cover “A”.

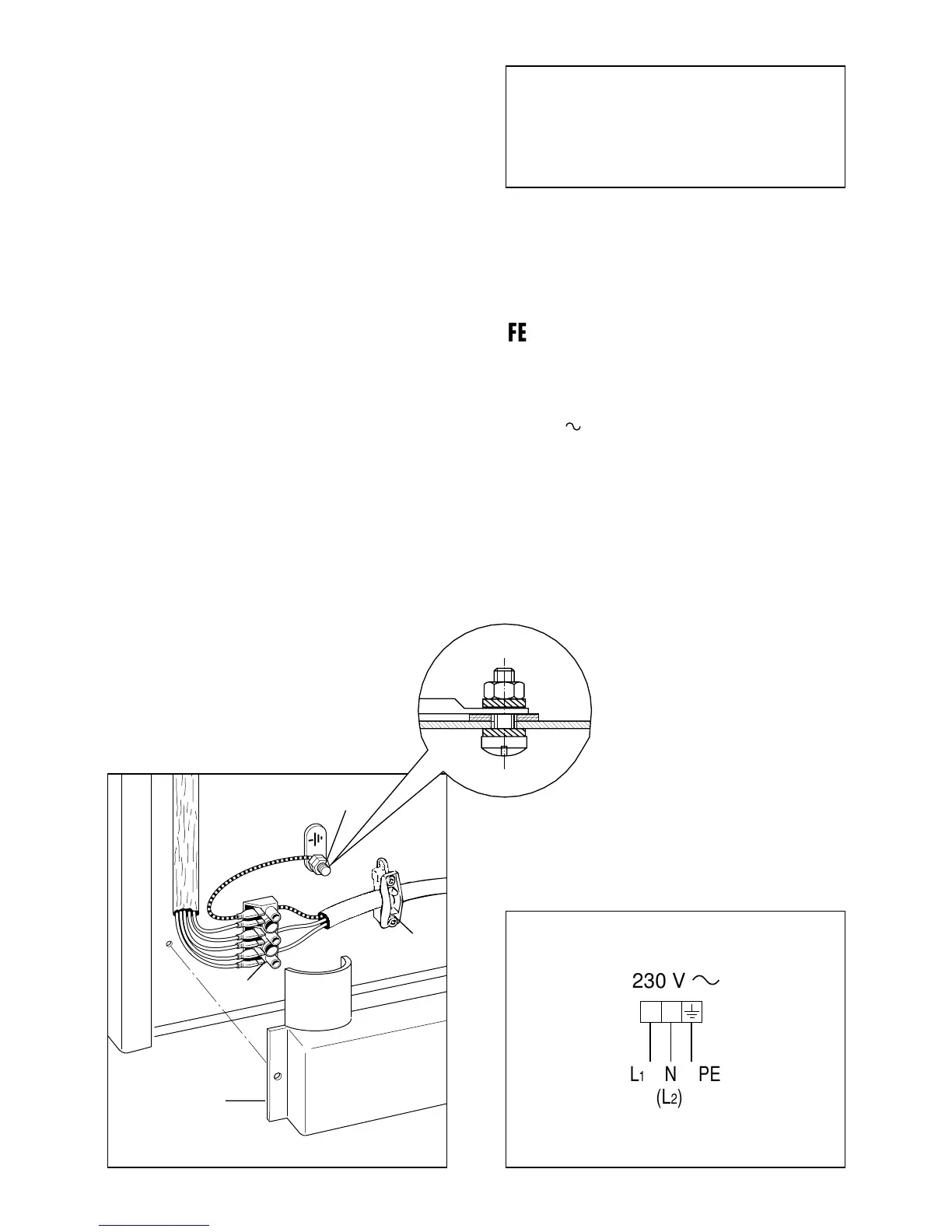

Fig. 10.1
D
B
PE
A
;;;
;;;
; ; ; ; ; ; ; ;
; ;
;
230 V
PEN
L
1
(L2)
FEEDER CABLE SECTION TYPE
HO5RR-F
230 V 3 x 2,5 mm
2
(**)
(**) – Connection with wall box connection.
Fig. 10.2
