Elba PXDO 906 DF - CONVERSION TO LPG; INJECTOR REPLACEMENT FOR LPG

31
CONVERSION TO LPG
Injectors replacement of top
burners
To replace the injectors it is necessary
to lift the hobtop and proceed as follows:
– Remove pan-supports and burners
from the hobtop.
– Remove the backguard “E”.
– Unscrew the two screws “B” and
remove the sockets (Fig. 9.3).
– Unscrew the two screws “C” and
remove the two side trims and joints
pulling upwards.
– Pull forwards the hobtop to release it,
then lift following arrow “D” (Fig. 9.3)
– Hold the hobtop open by a support.
– Fully raise the adjusting air tube A (fig.
9.4) in order to easily reach the
injector.
– By using a angle 7 mm spanner,
remove the injector from its housing
and replace it with the correct one
according to the kind of gas used
(see following tables - page 33).
C
C
B
B
D
E

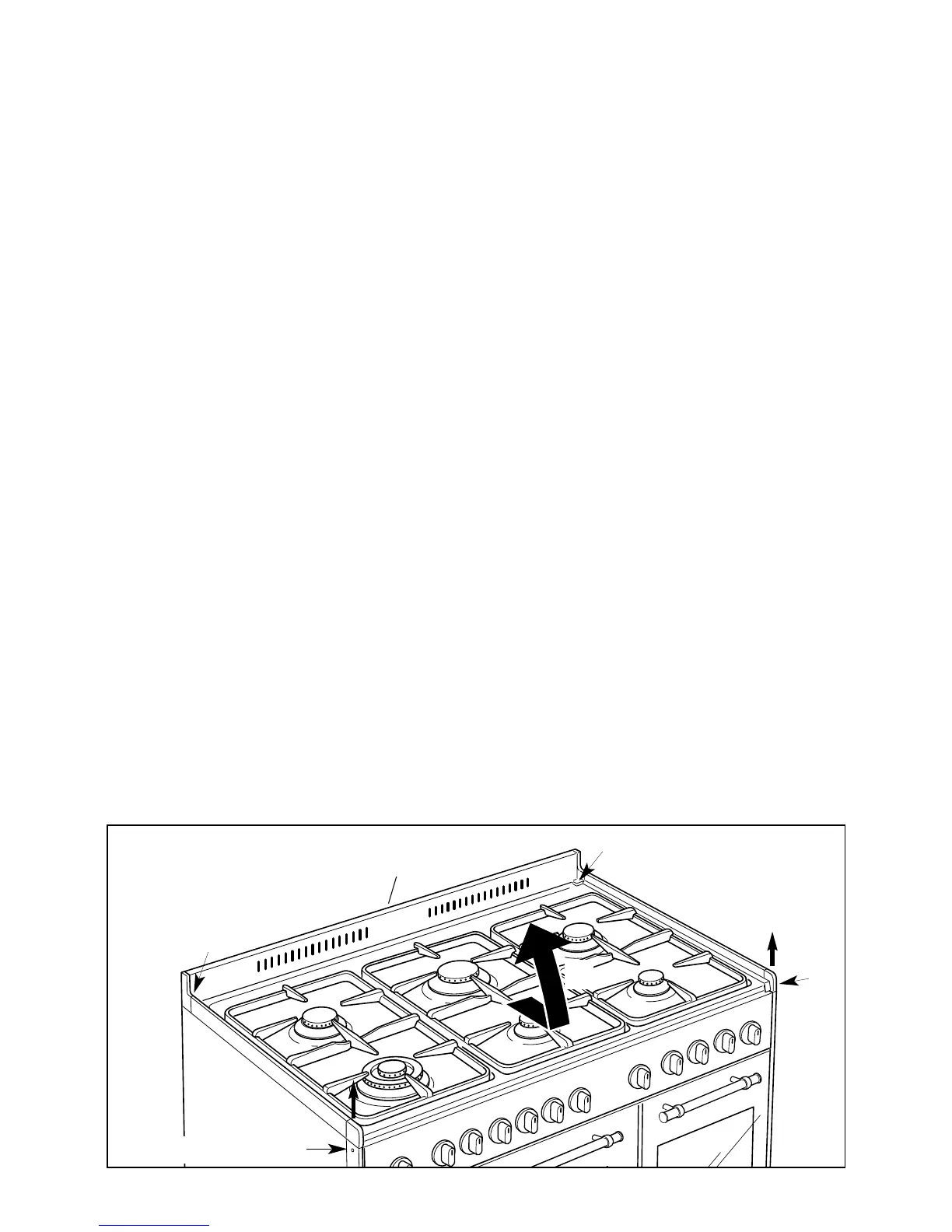

Fig. 9.3
