elco THISION S PLUS User Manual

7
Product description

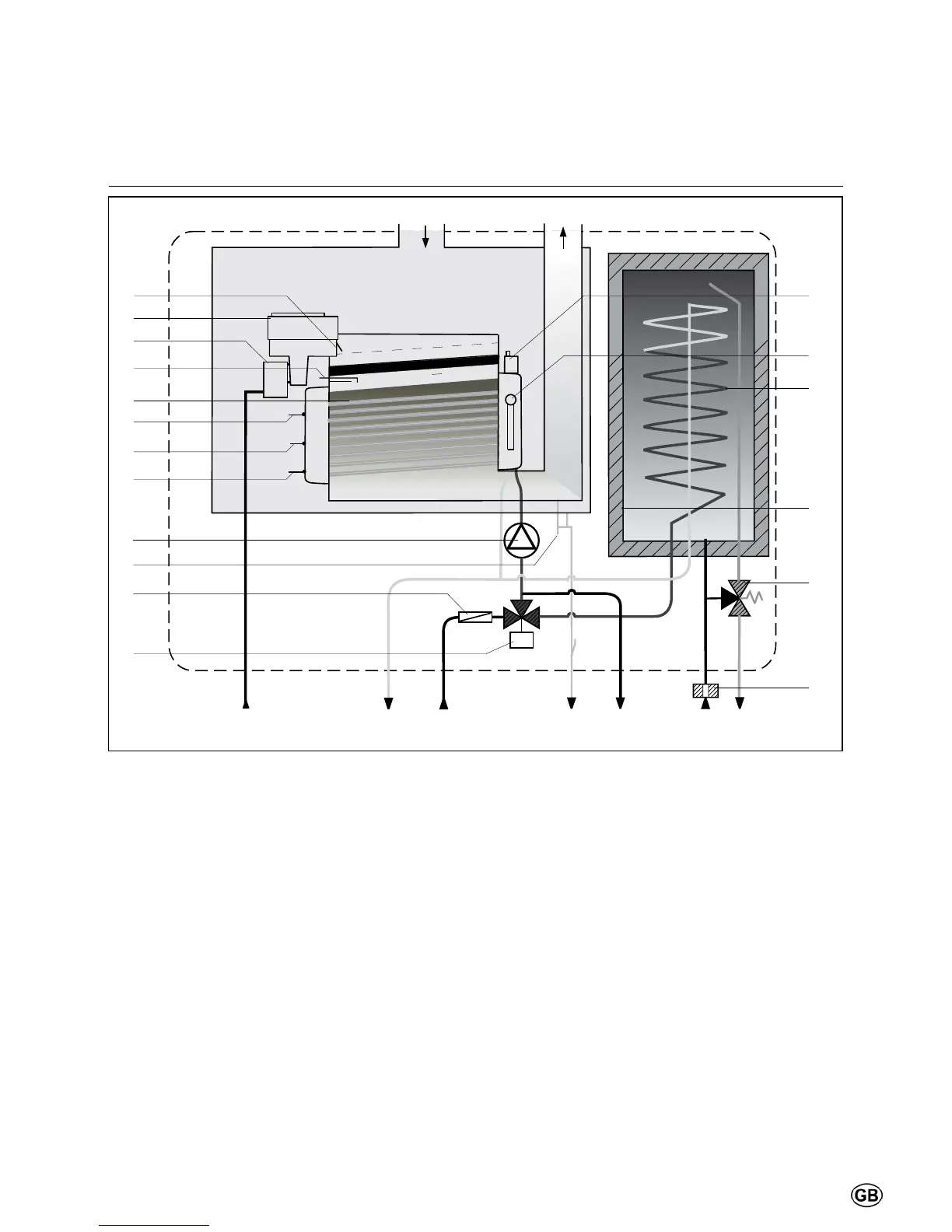

THISION S PLUS Combi hydraulic circuit diagram
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
17
18
g v r c a k w
Legend:
1 Flue gas non-return valve
2 Modulating Fan
3 Gas valve
4 Ionization and ignition electrode
5 Primary heat exchanger
6 BoilerowsensorNTC1
7 Boiler return sensor NTC2
8 Water pressure sensor P1
9 High-e󰀩ciencypump
10 Siphon
11 Heater dirt trap
12 3-way valve
13 Automatic ventilator
14 3 bar safety valve
15 Reserve tank heat exchanger for
warm water
16 Warm water sensor NTC3
17 Mixing valve thermostat
18 Flow-through limiter
g Gas connection
v Boilerowconnection
r Boiler return connection
c Condensate drain
a Expansion vessel connection (C 34)
k Cold water connection
w Warm water connection
Illustration: THISION S PLUS Combi 34

elco THISION S PLUS Specifications

General

Model	THISION S PLUS
Category	Boiler
Fuel Type	Natural Gas, LPG
Installation	Wall-mounted
Heat exchanger material	Stainless Steel
Water Pressure	Max 6 bar
Available models	THISION S PLUS 35
Weight	34 kg to 36 kg
