elco TRIGON XXL Series User Manual

17

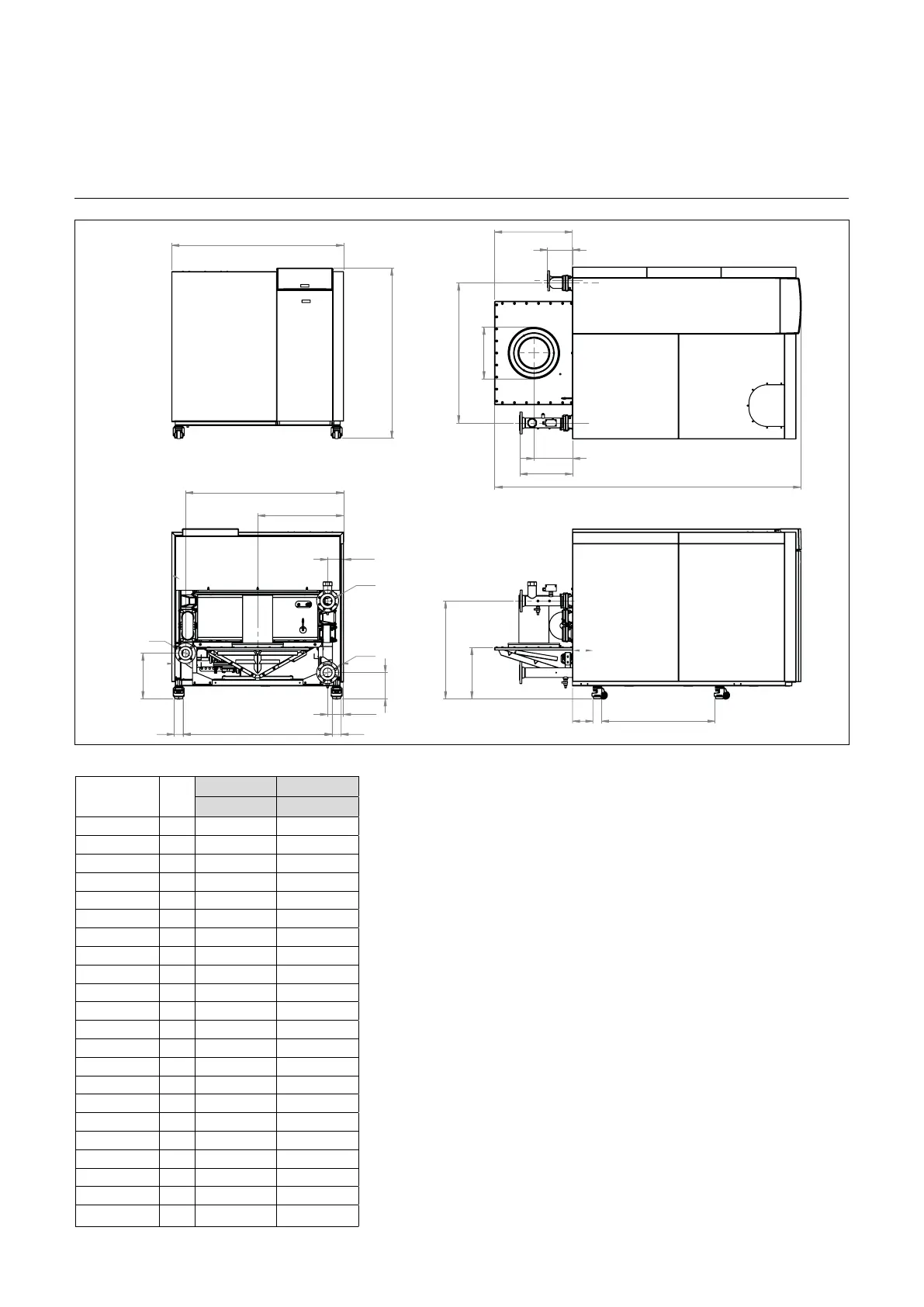

Technical data
L2 LW
H3
H1
B6
D
L1
L4
L5
L
L3
H2
G
W
82 B4 82
B1
B3
B2
B5
H4
B
H
W
B is not the maximum width of the boiler as for some models B6+ange connection are wider as B.
Dimensions SE 1300 - SE 1500
ECO 1150 - ECO 1300
Dimensions
SE 1300 SE 1500
ECO 1150 ECO 1300
L mm 2795 3310
L1 mm 480 480
L2 mm 1030 1550
L3 mm 350 350
L4 mm 230 230
L5 mm 710 710
LW mm 185 185
H mm 1555 1575
H1 mm 895 915
H2 mm 420 435
H3 mm 470 490
H4 mm 240 260
B mm 1570 1370
B1 mm 1445 1250
B2 mm 785 685
B3 mm 145 145
B4 mm 1360 1160
B5 mm 145 145
B6 mm 1300 1105
D mm 450 450
W DN DN80-PN16 DN80-PN16
G DN
DN65-PN16 DN65-PN16
