elco TRIGON XXL Series User Manual

Prepare boiler for rst startup
Commissioning
Controller Stop mode
For setting the controller stop mode
and insert setpoint press (
K) > 3 sec.
Press (
K) >3 sec. again for setting
combustion parameters.
Display (L)
Info mode (G)
Display possibility of following info
without inuence on boiler control:
temperatures, operation mode Heating
/ DHW, error code.
Conrmation (OK) (D)
Return (ESC) (B)
These buttons are used for
programming in combination with the
wheel.
By pressing the ESC button it is
possible to go back one level, changed
values are not taken over by the
controller.
By pressing the OK button it‘s possible
to arrive in the next level or conrm
changed values.
Manual mode (E)
This button is used for switching the
boiler into manual mode. In manual
mode all pumps will run and the mixing
valves are no longer controlled, the
burner setpoint is adjustable (60°C
factory setting) (indicated by spanner
symbol).
On/off switch (A)
Position 0:
Boiler and connected electrical
components are not powered. Frost
protection is not secured.
Position I:
The boiler and connected electrical
components are powered and standby
for operation.
Deaeration mode (E)
By pressing the manual mode button
longer than 3 seconds, the automatic
hydraulic deaeration is activated.
During deaeration the system is put
in standby mode. The pumps are
switched on and off for several times.
After deaeration, the boiler
automatically returns to normal
operation.
Chimney sweeper mode (F)
Used for combustion analysis.
By pressing the button once again,
or automatically after 15 minutes,
the chimney sweeper mode will be
deactivated (indicated by spanner
symbol).
Reset button (H)
By shortly pressing the reset button a
burner lockout can be cancelled.
c
b
0 4 6 12 16 20 24
+-
ESC
OK
M
B C D E F
I
L
G
H

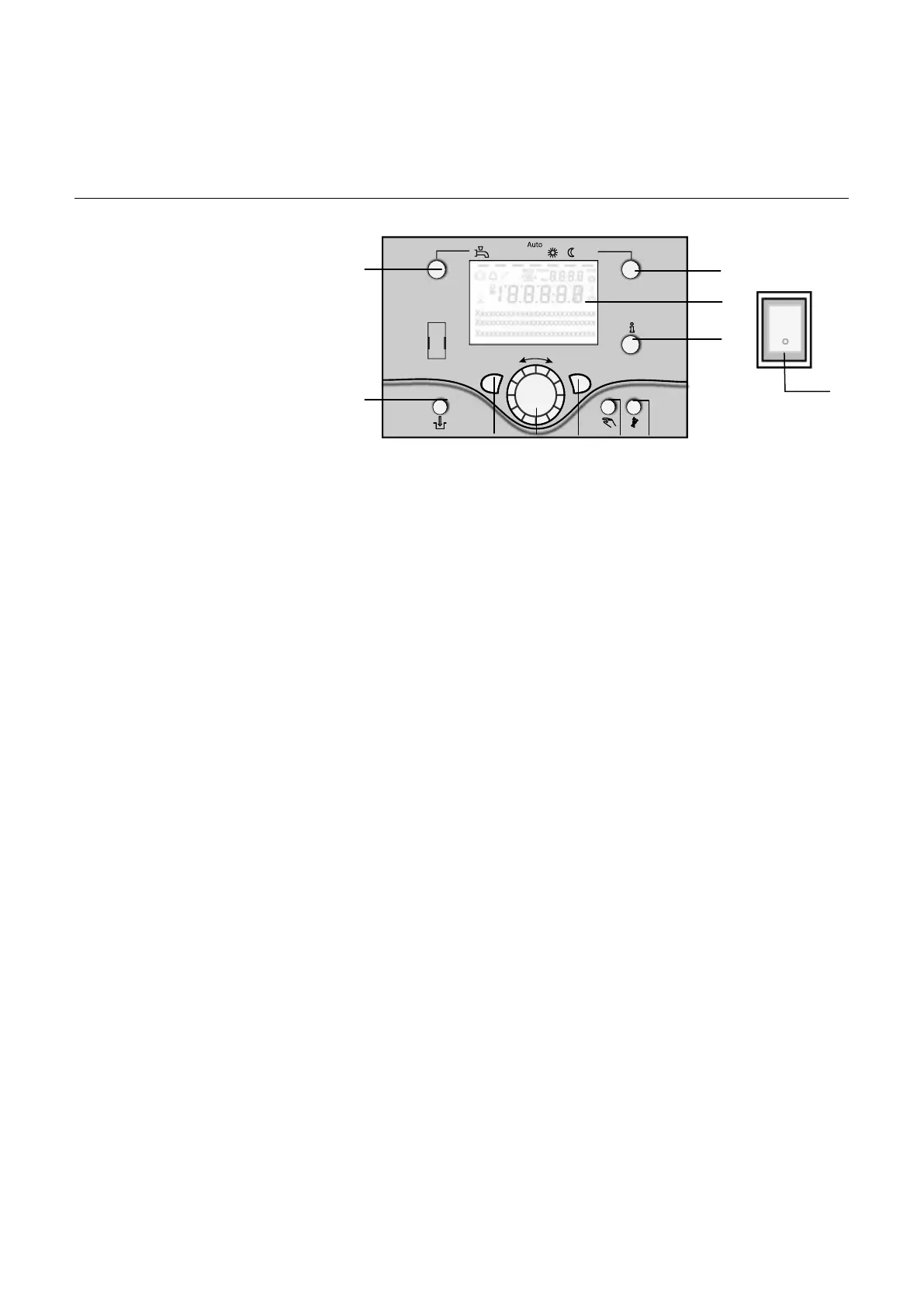

Legend:
A On/o switch
B Return (ESC)
C Room temperature control
D Conrmaon (OK)
E Manual mode
F Chimney sweeper mode
G Info mode
H Reset buon
I Operaon mode heang zone(s)
L Display
M Operaon mode DHW
A
